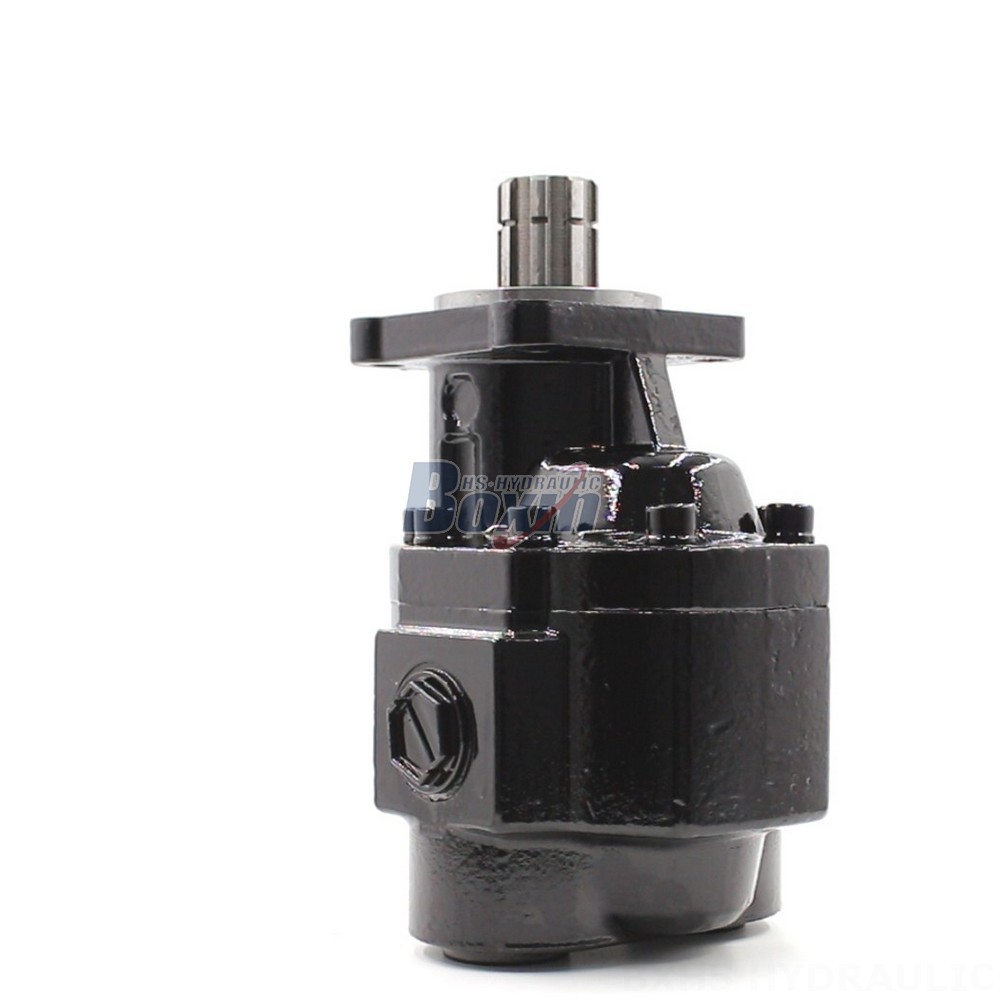

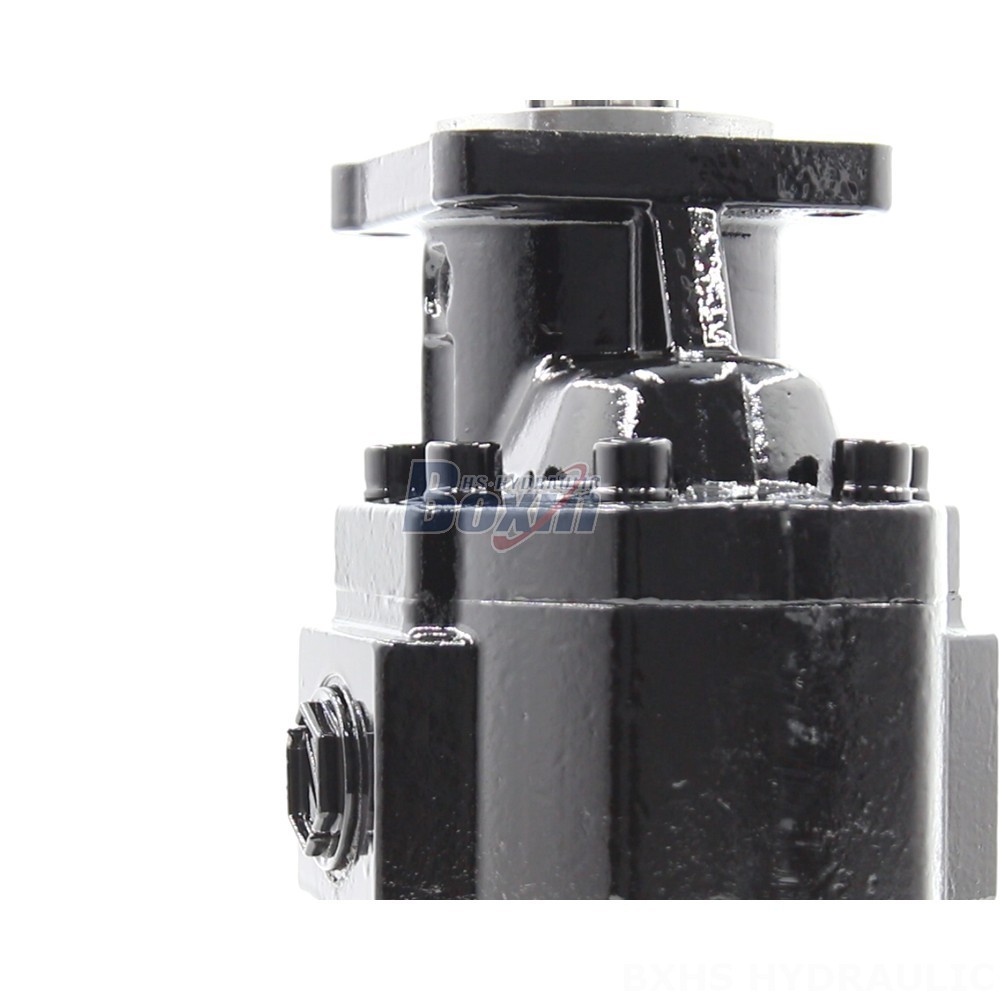

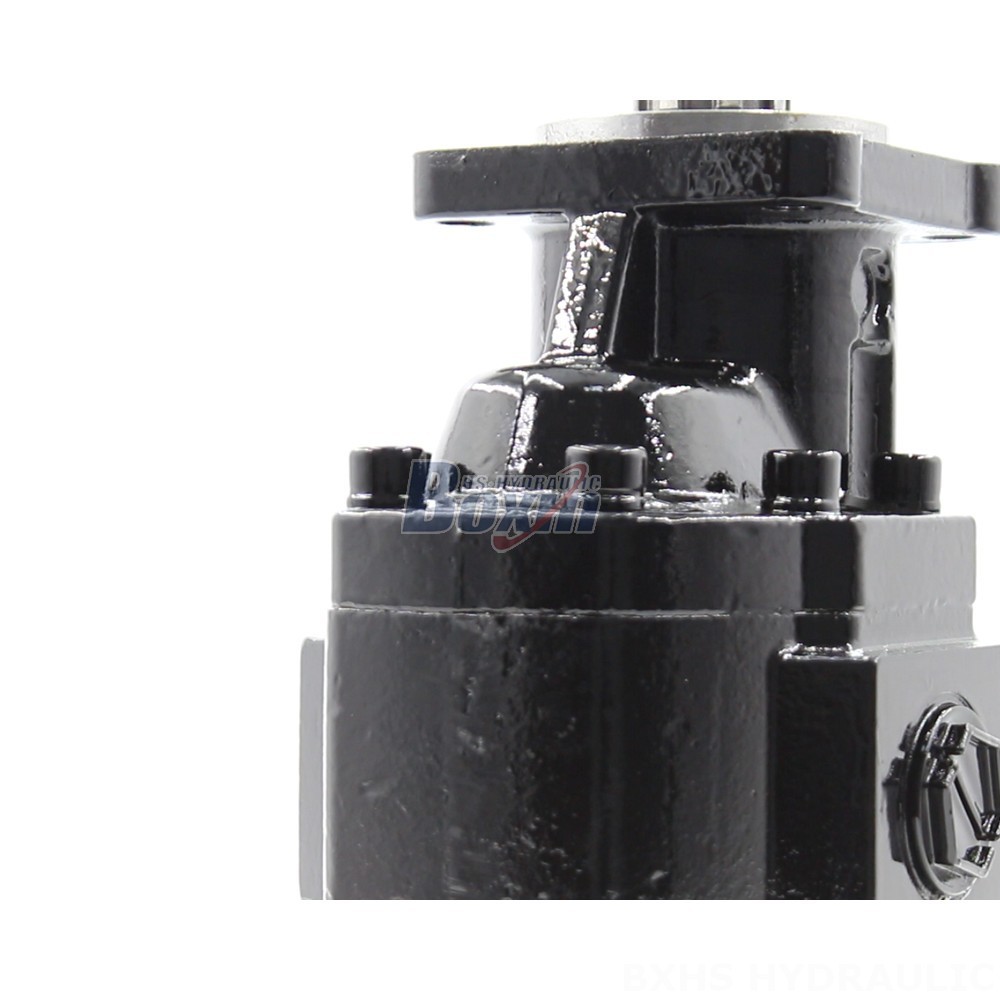

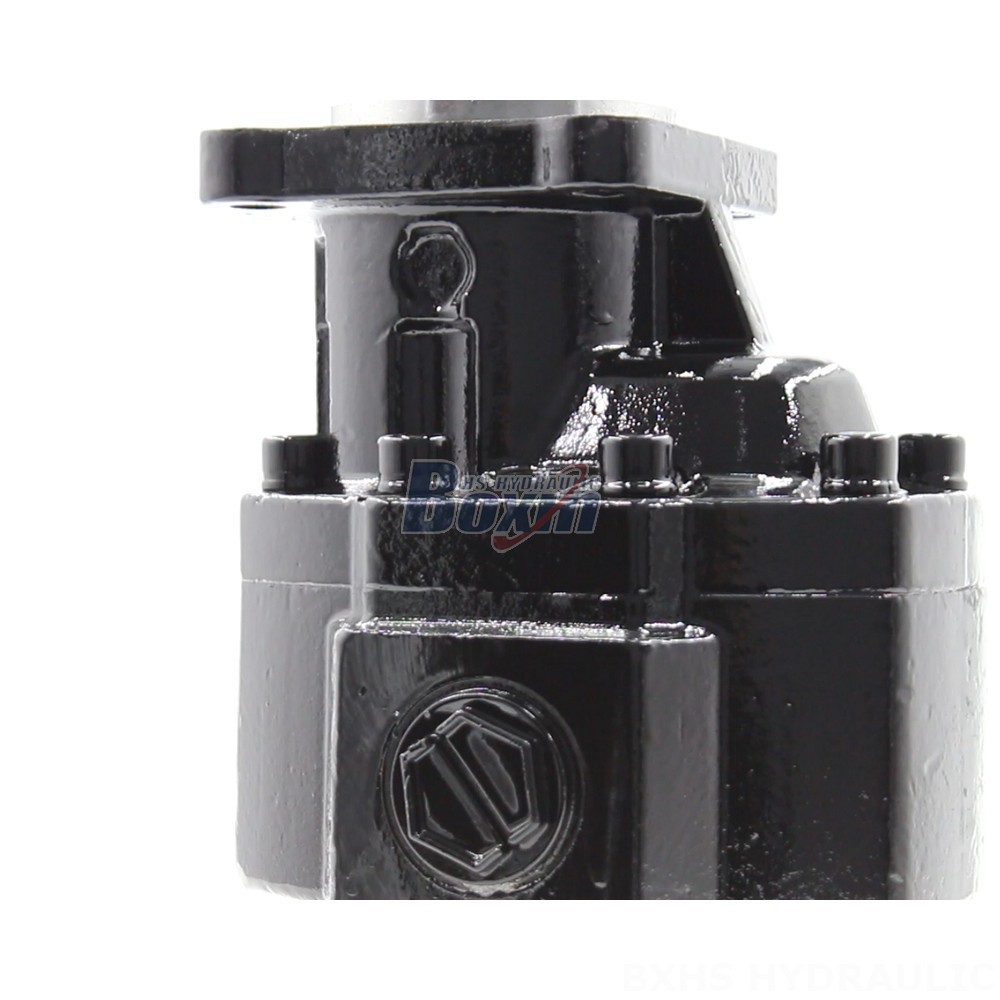

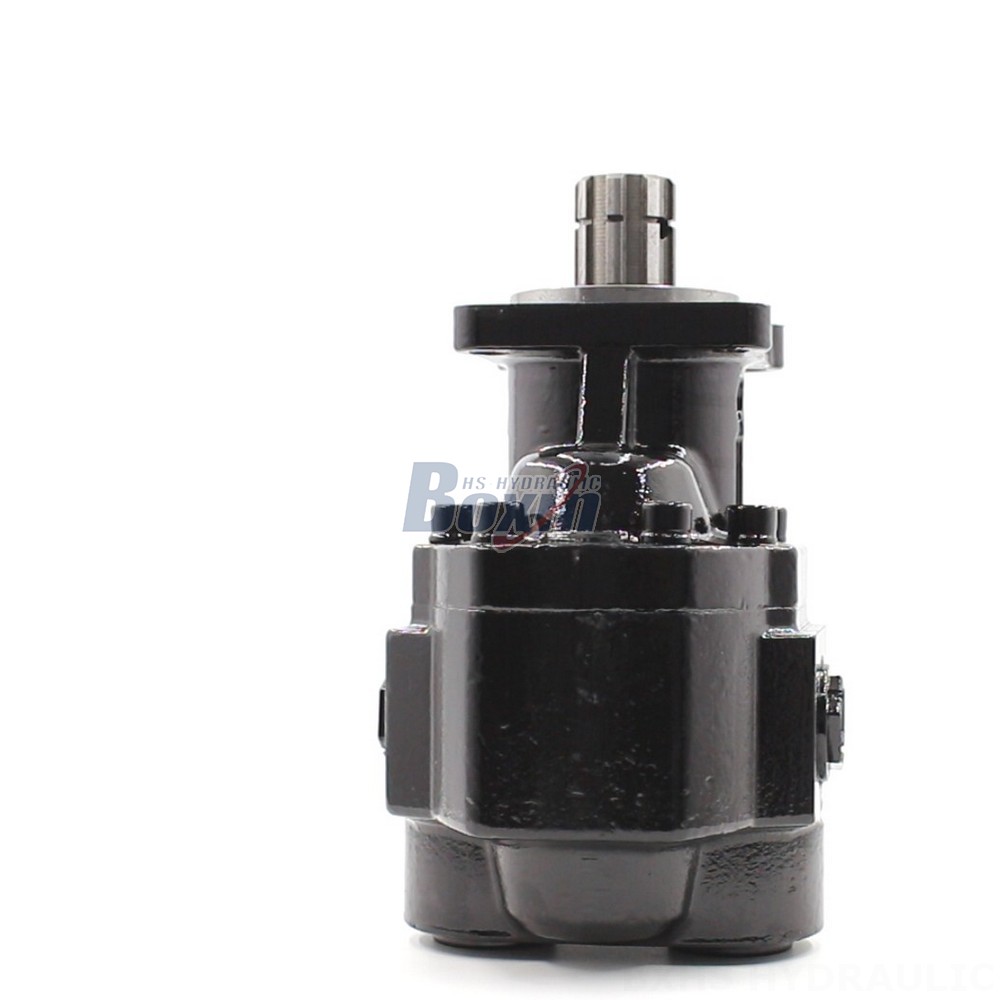

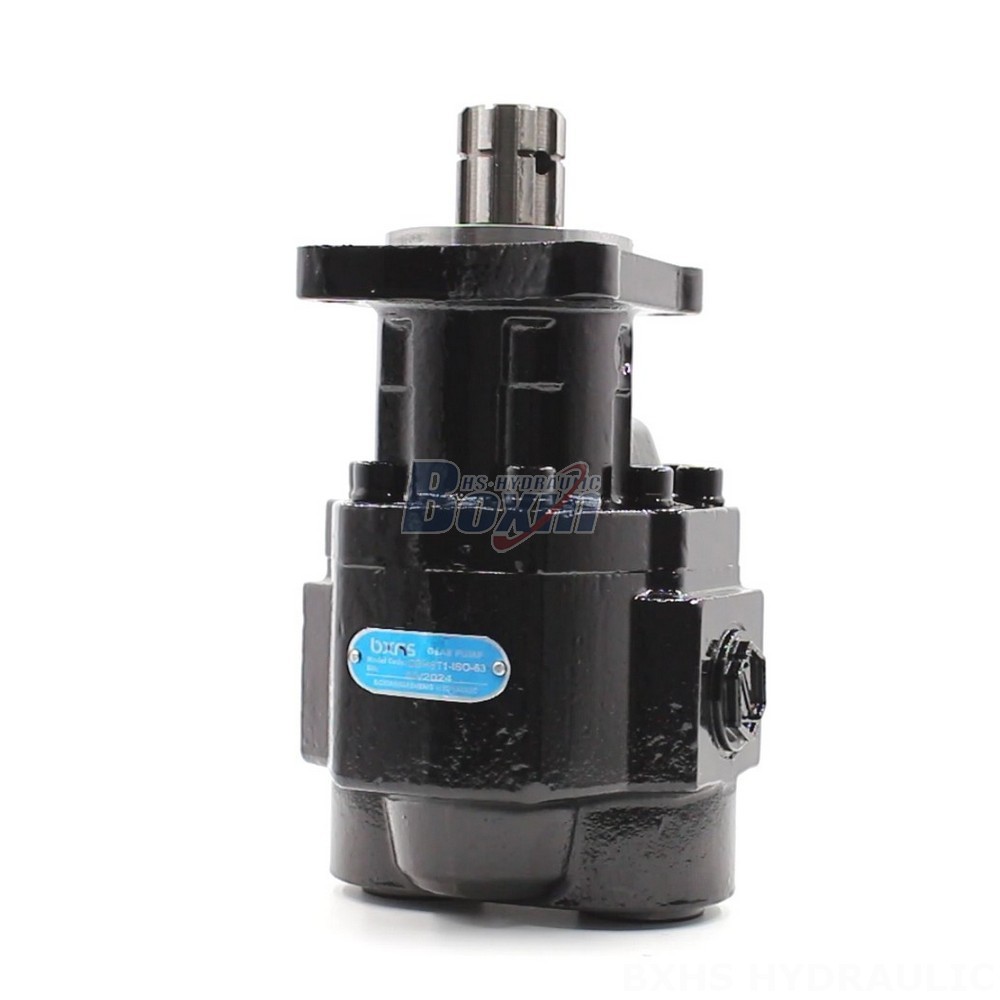

The CBHST1-ISO-63 Hydraulic Gear Pump is an advanced and globally renowned product designed for exceptional performance in various applications. With customizable displacement options ranging from 32 to 110 cc/rev, this pump delivers optimal flow rates for diverse hydraulic systems. Engineered with a robust cast iron construction, it withstands high pressures up to 23 MPa (3335 psi) and operates efficiently at speeds of up to 2500 r/min.
| Serie CBHST1-ISO Hydraulikzahnradpumpe Parameter | |
|---|---|
| Verdrängung | 50 cc/Umdr, 63 cc/Umdr, 80 cc/Umdr, 100 cc/Umdr, 110 cc/Umdr, 34 cc/Umdr, 43 cc/Umdr, 90 cc/Umdr, 120 cc/Umdr, 82 cc/Umdr |
| Nenndruck | 20 MPa (2900 psi), 23 MPa (3335 psi), 25 MPa (3625 psi) |
| Maximaldruck | 23 MPa (3335 psi), 25 MPa (3625 psi), 28 MPa (4061 psi) |
| Nenndrehzahl | 2000 U/min |
| Maximaldrehzahl | 2500 U/min |
| Drehrichtung | Bidirektional |
| Material | Gusseisen |
| Struktur | Außenverzahnte Pumpe |
| Flanschversion | ISO-4-Befestigungslöcher |
| Wellentyp | H: Rechteckige Keilwelle |
The CBHST1-ISO-63 Hydraulic Gear Pump boasts a bidirectional rotation, allowing for versatility in system design. Its swashplate structure ensures smooth and reliable operation, while the ISO-4 mounting flange and rectangle spline shaft type provide compatibility with a wide range of applications. This pump finds its applications in material handling, construction, agriculture, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
