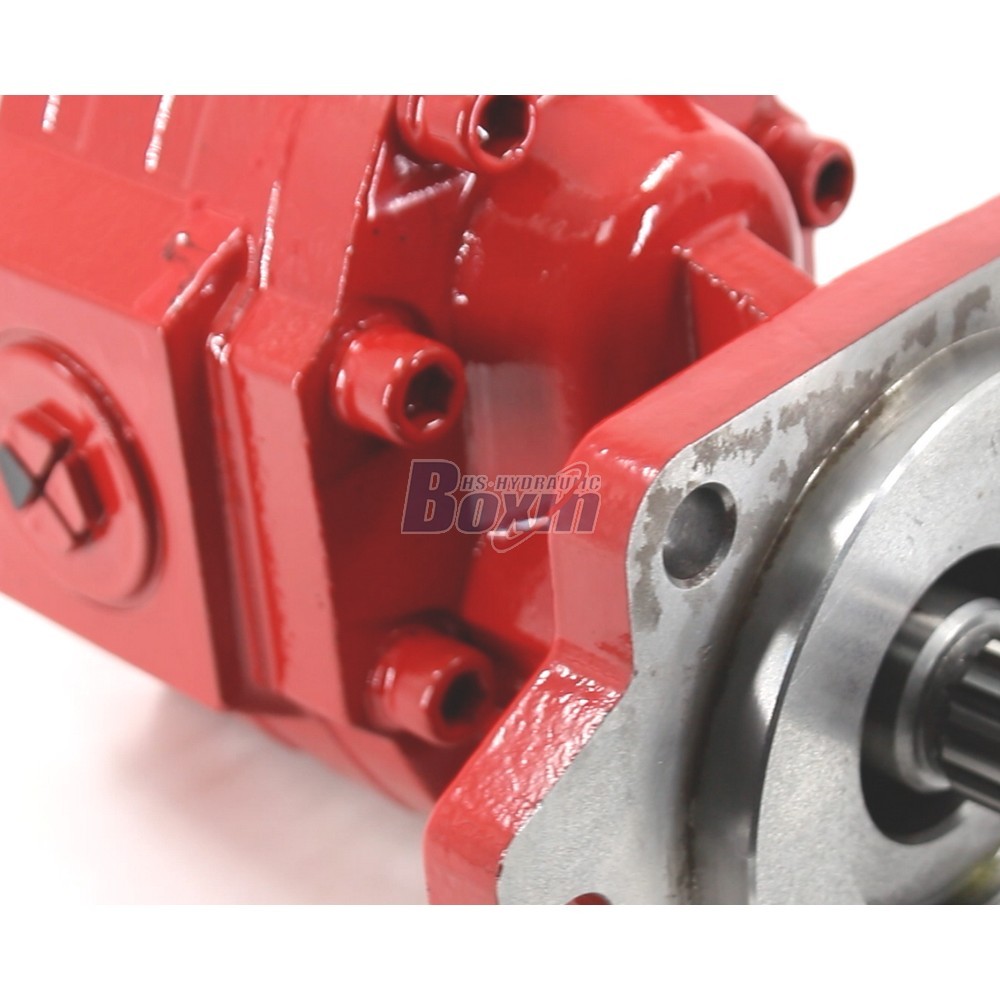

CBHS3100 100 cc/rev Hydraulic Gear Pump Unit Specification

Verdrängung:100 cc/Umdr

Nenndruck:20 MPa (2900 psi)

Maximaldruck:25 MPa (3625 psi)

Maximaldrehzahl:2500 U/min

Drehrichtung:Rechts (im Uhrzeigersinn)

Hersteller:BXHS

Produkttyp:Hydraulikzahnradpumpe

Produktserie:CBHS-T3 Serie Hydraulikzahnradpumpe

Verpackungsgröße:31*23*25

Bruttogewicht:17.60 kg

Verfügbarkeit: Auf Lager

159 Personen sehen sich dieses Produkt an

CBHS3100 100 cc/rev Hydraulic Gear Pump Unit Specification

CBHS3100 100 cc/rev Hydraulic Gear Pump Unit Specification

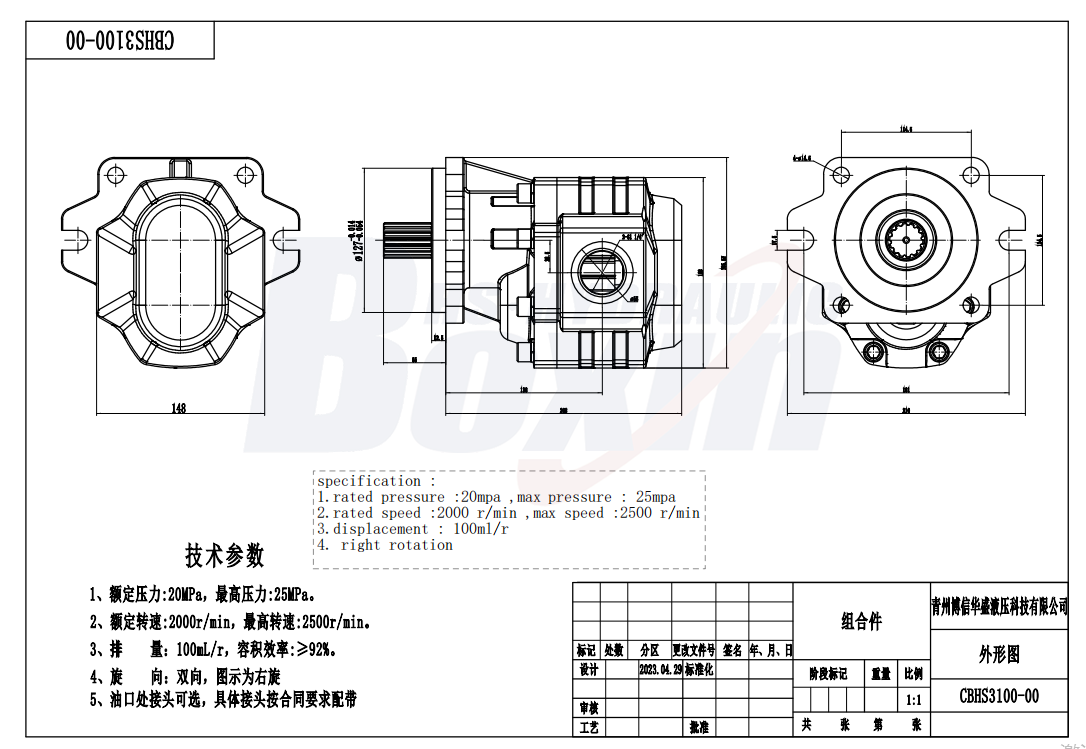

CBHS3100 100 cc/rev Hydraulic Gear Pump Unit Specification drawing image

The CBHS3100 hydraulic gear pump is a high-performance, 100 cc/rev unit engineered for demanding applications in construction, agriculture, and material handling, offering reliable power density and robust pressure ratings for diverse machinery.

CBHS-T3 Serie Hydraulikzahnradpumpe Parameter
Verdrängung 100 cc/Umdr
Nenndruck 20 MPa (2900 psi)
Maximaldruck 25 MPa (3625 psi)
Nenndrehzahl 2000 U/min
Maximaldrehzahl 3000 U/min
Drehrichtung Links (entgegen dem Uhrzeigersinn), Rechts (im Uhrzeigersinn)
Struktur Außenverzahnte Pumpe
Material Gusseisen
Flanschversion B-Vierkantflansch
Wellentyp H: Rechteckige Keilwelle, X: Evolventenverzahnte Keilwelle

As a prominent hydraulic component manufacturer, we specialize in the production of the CBHS3100 hydraulic gear pump, featuring a 100 cc/rev displacement and a maximum pressure capacity of 25 MPa. This unit is designed for durability in heavy-duty machinery including forklifts, wheel loaders, tractors, and excavators. We provide comprehensive manufacturing services, including OEM, ODM, and private labeling, tailored to meet specific project requirements. Our facility is equipped to handle large-scale production, offering competitive factory-direct wholesale pricing to support your business. We are actively seeking long-term partnerships with global distributors, wholesalers, procurement agents, and international traders. By choosing our factory-direct supply, you gain access to high-quality hydraulic solutions, flexible customization options, and reliable technical support. Contact us to discuss bulk orders or custom design requirements for your hydraulic systems.
