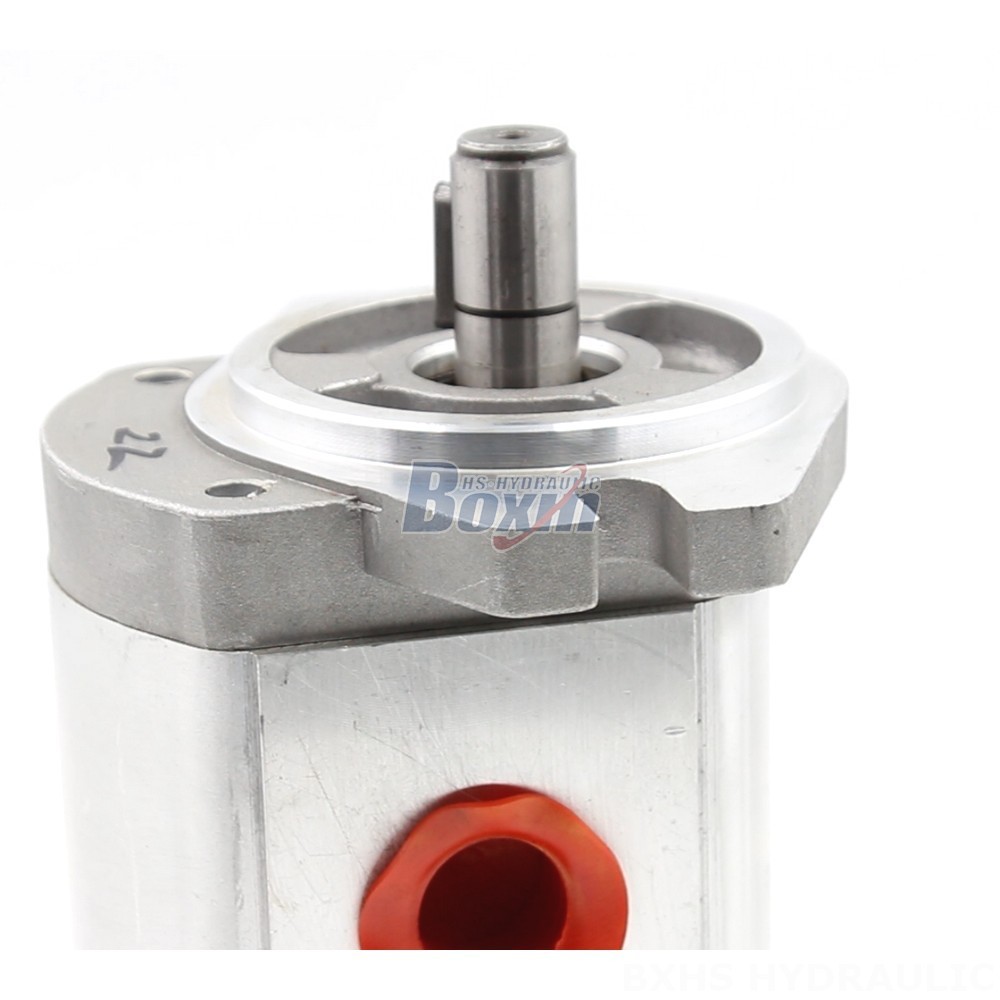

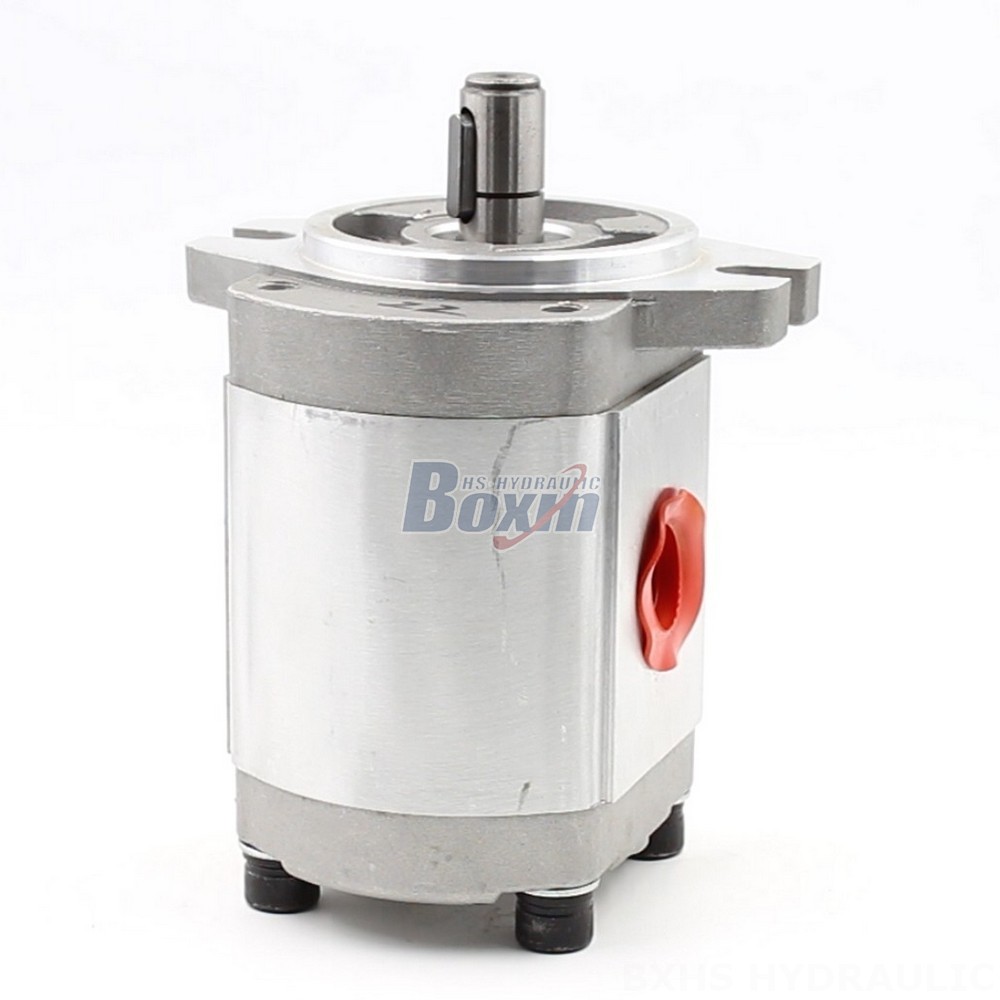

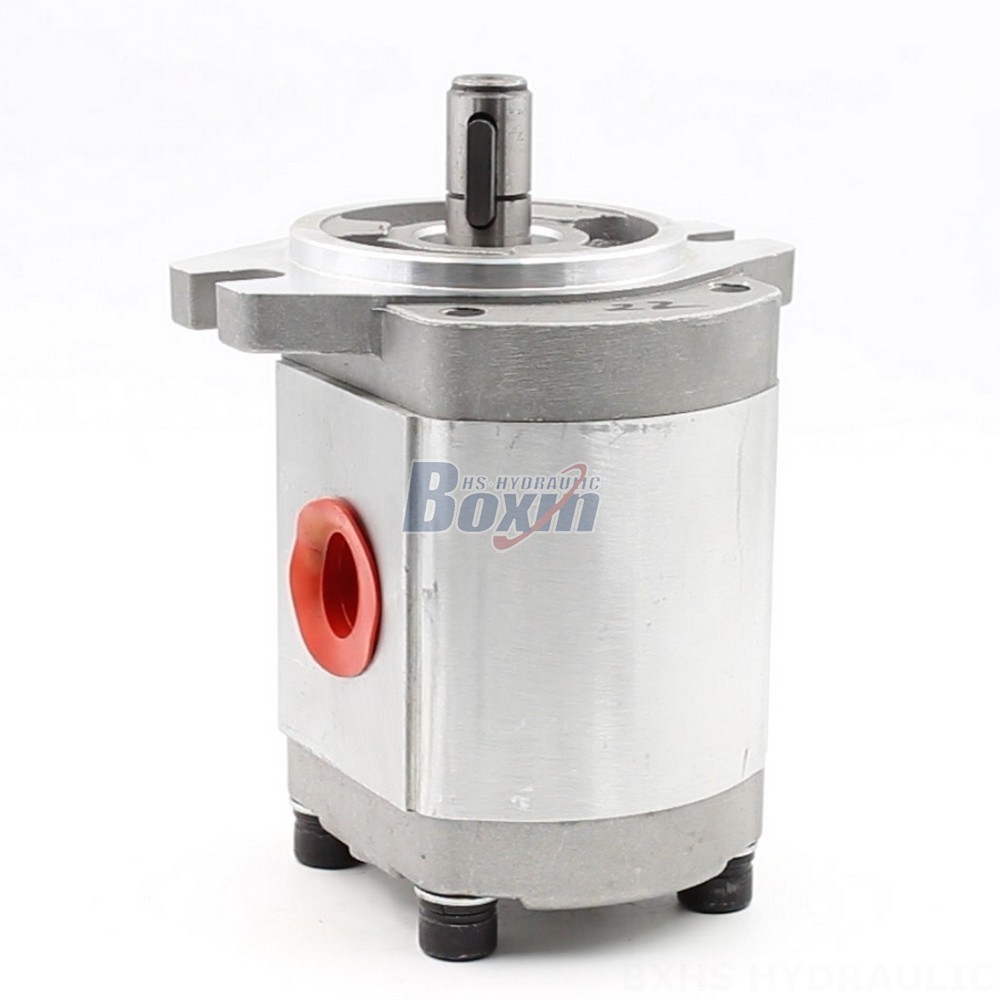

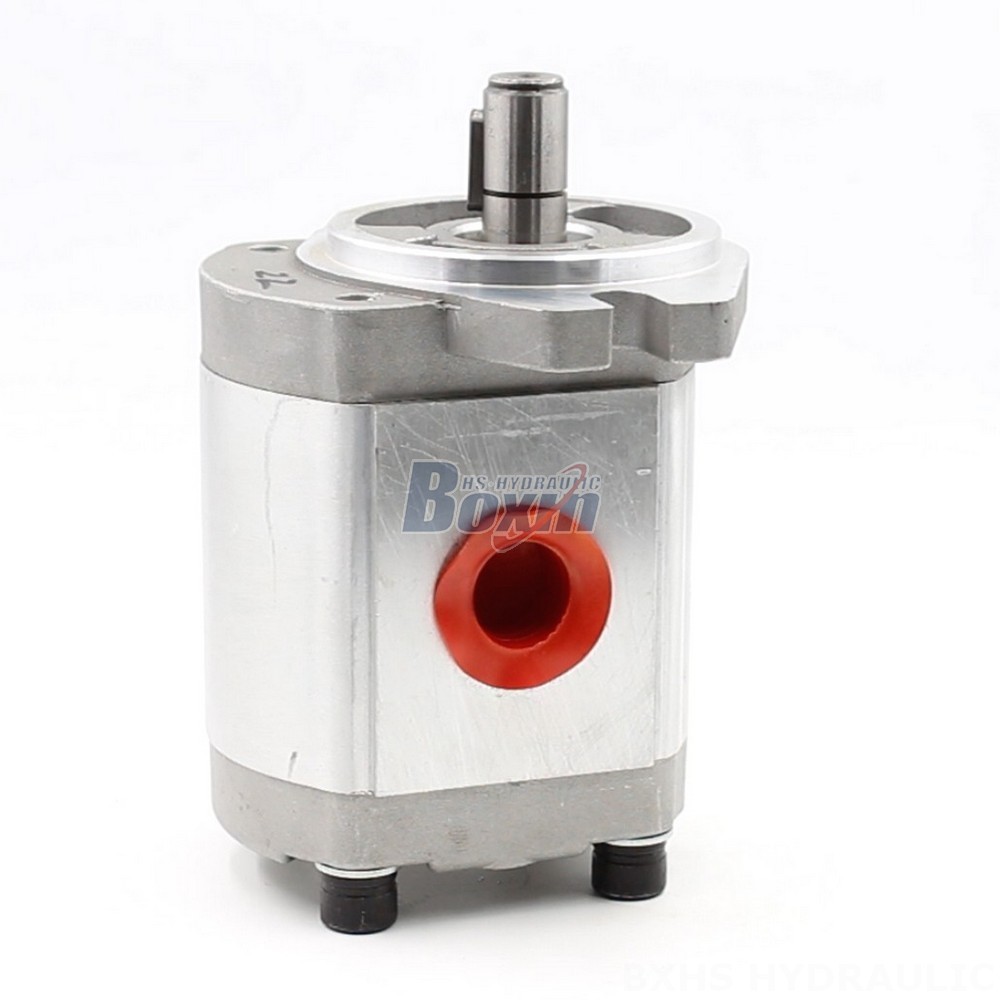

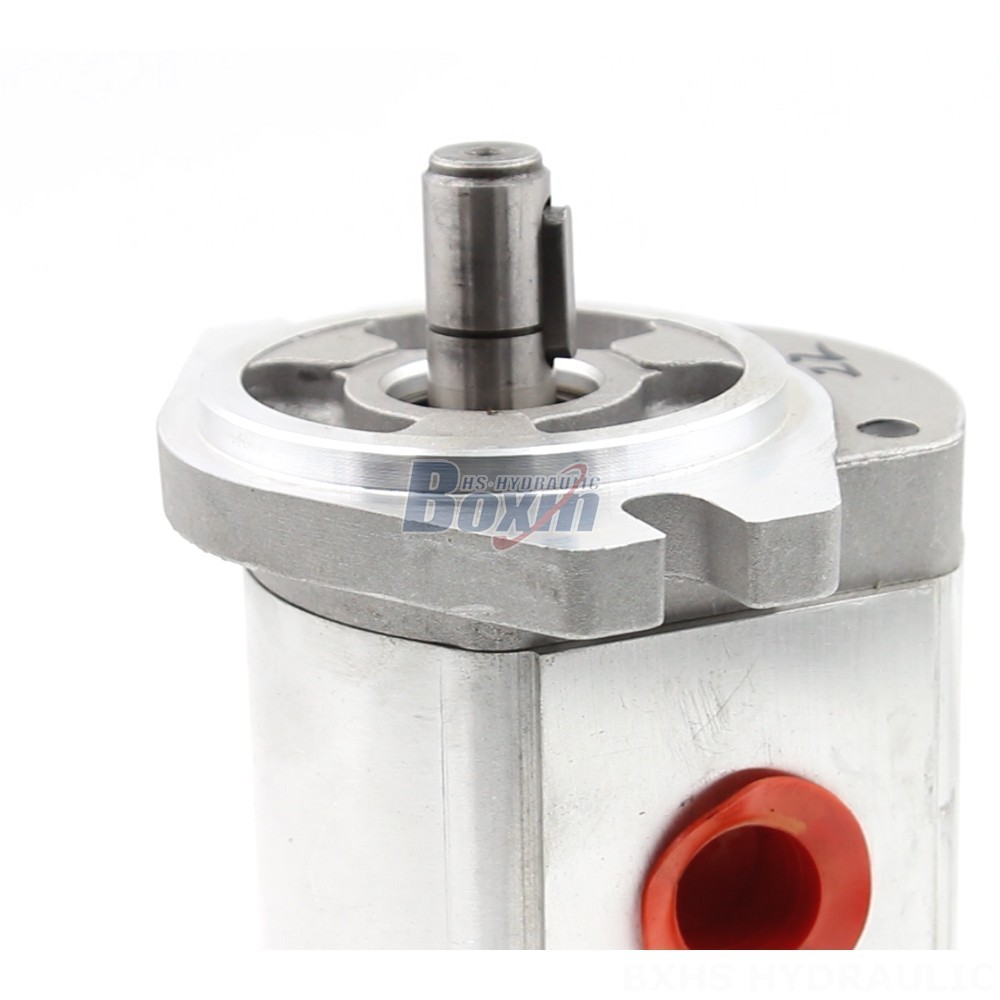

The CBHS-FL304 Hydraulic Gear Pump is a reliable and efficient pump designed for heavy-duty applications in various industries. It features a displacement of 10 cc/rev, a rated pressure of 20 MPa, and a rated speed of 2000 r/min, making it suitable for a wide range of construction and agricultural equipment.
| CBHS-FL3 Serie Hydraulikzahnradpumpe Parameter | |
|---|---|
| Verdrängung | 10 cc/Umdr, 4 cc/Umdr, 20 cc/Umdr, 16 cc/Umdr, 14 cc/Umdr, 6 cc/Umdr |
| Nenndruck | 20 MPa (2900 psi) |
| Maximaldruck | 25 MPa (3625 psi) |
| Nenndrehzahl | 2000 U/min |
| Maximaldrehzahl | 3000 U/min |
| Drehrichtung | Links (entgegen dem Uhrzeigersinn), Rechts (im Uhrzeigersinn) |
| Material | Aluminium |
| Struktur | Außenverzahnte Pumpe |
| Flanschversion | A-Ovalflansch |
| Wellentyp | H: Rechteckige Keilwelle, X: Evolventenverzahnte Keilwelle, P: einfacher Schlüssel |
The CBHS-FL304 Hydraulic Gear Pump is a high-performance pump designed for demanding applications in construction, agriculture, and industrial vehicles. It features an internal gear pump design with an aluminum body, ensuring durability and efficiency. The pump has a displacement of 10 cc/rev and a rated pressure of 20 MPa, providing strong hydraulic power for a variety of tasks. Its rated speed is 2000 r/min, with a maximum speed of 3000 r/min. The CBHS-FL304 is available with both left and right rotation options. It features an A-Oval flange and a plain key shaft, making it compatible with various equipment. This pump is ideally suited for telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and balers.
