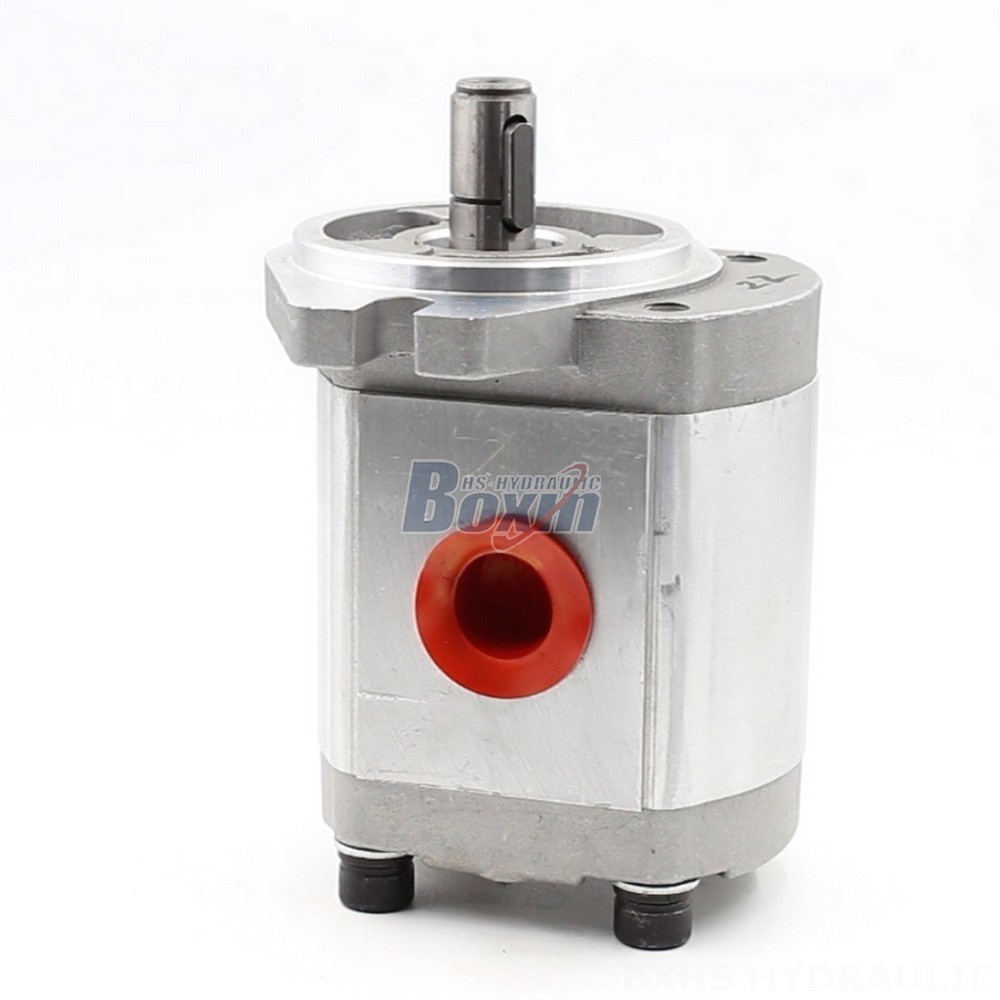

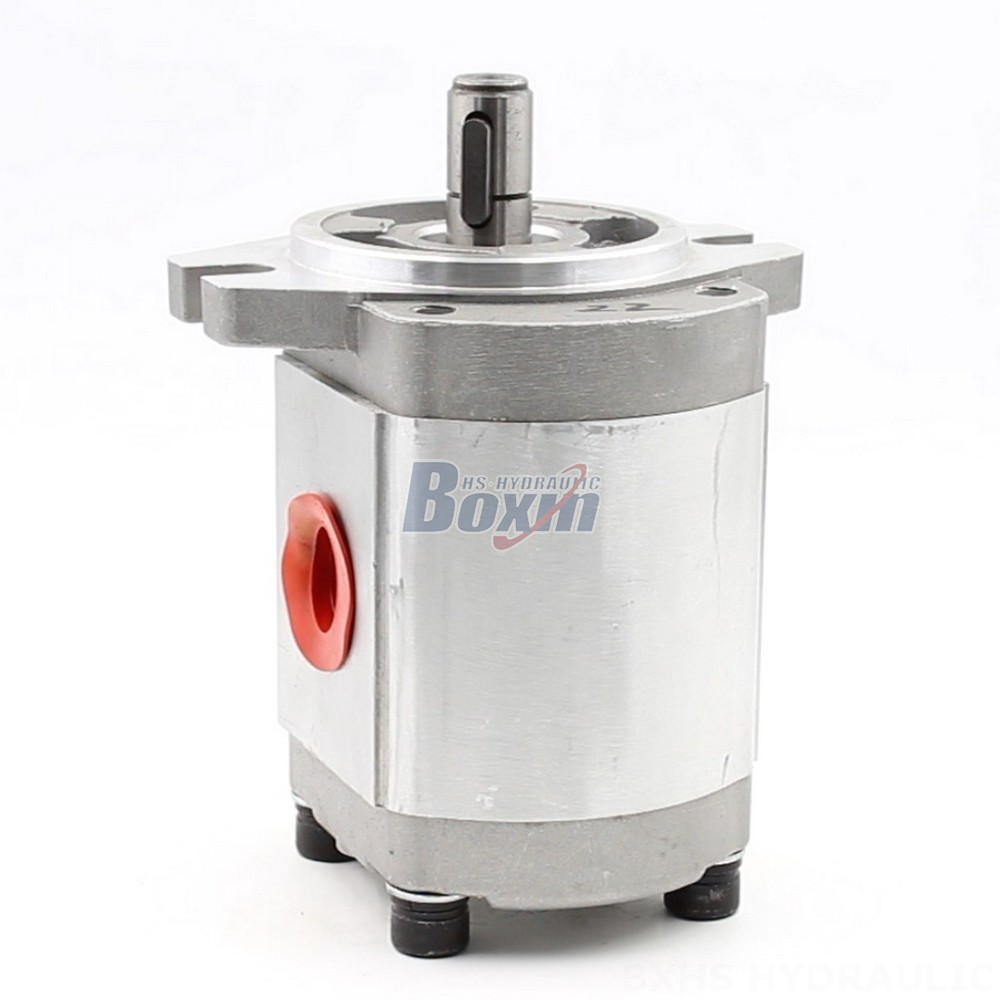

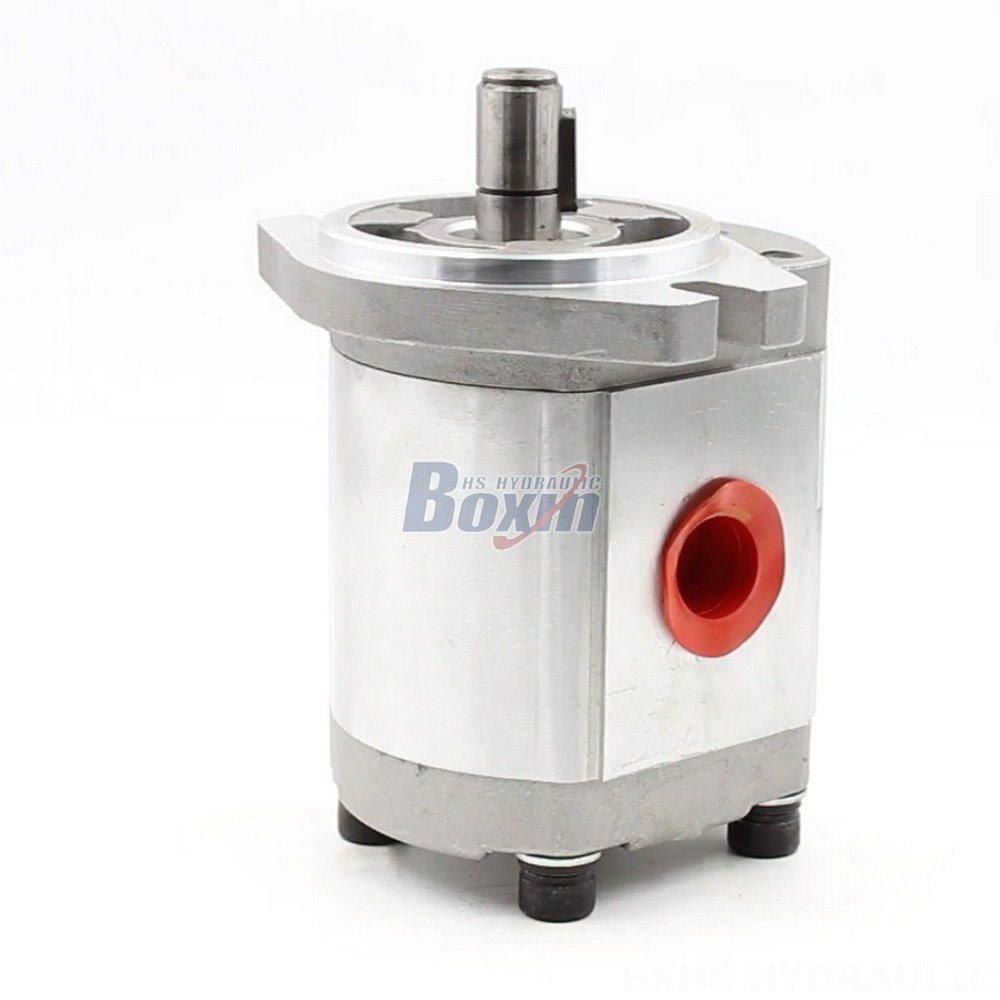

The CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a high-performance pump designed for a variety of applications in construction, agriculture, and industrial vehicles. With a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min, this pump is built to handle demanding tasks with ease.
| CBHS-FL3 Serie Hydraulikzahnradpumpe Parameter | |
|---|---|
| Verdrängung | 10 cc/Umdr, 4 cc/Umdr, 20 cc/Umdr, 16 cc/Umdr, 14 cc/Umdr, 6 cc/Umdr |
| Nenndruck | 20 MPa (2900 psi) |
| Maximaldruck | 25 MPa (3625 psi) |
| Nenndrehzahl | 2000 U/min |
| Maximaldrehzahl | 3000 U/min |
| Drehrichtung | Links (entgegen dem Uhrzeigersinn), Rechts (im Uhrzeigersinn) |
| Material | Aluminium |
| Struktur | Außenverzahnte Pumpe |
| Flanschversion | A-Ovalflansch |
| Wellentyp | H: Rechteckige Keilwelle, X: Evolventenverzahnte Keilwelle, P: einfacher Schlüssel |

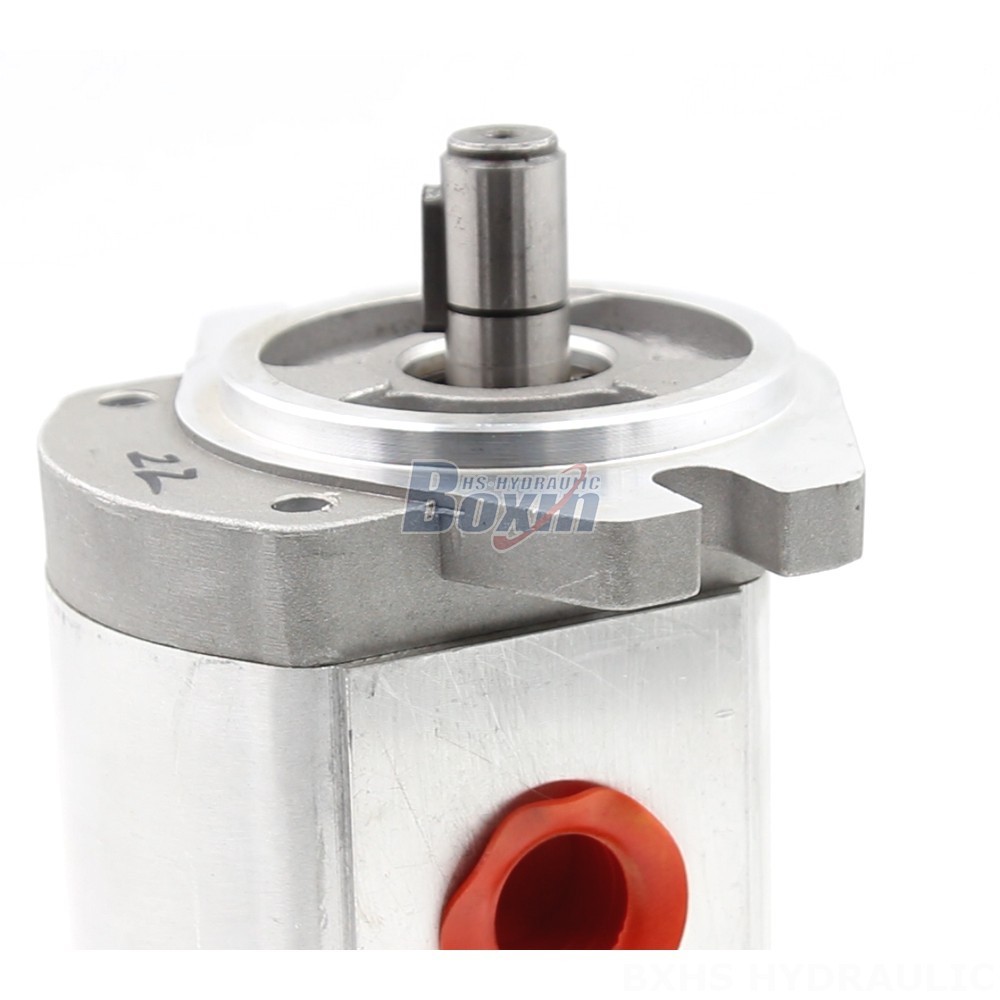

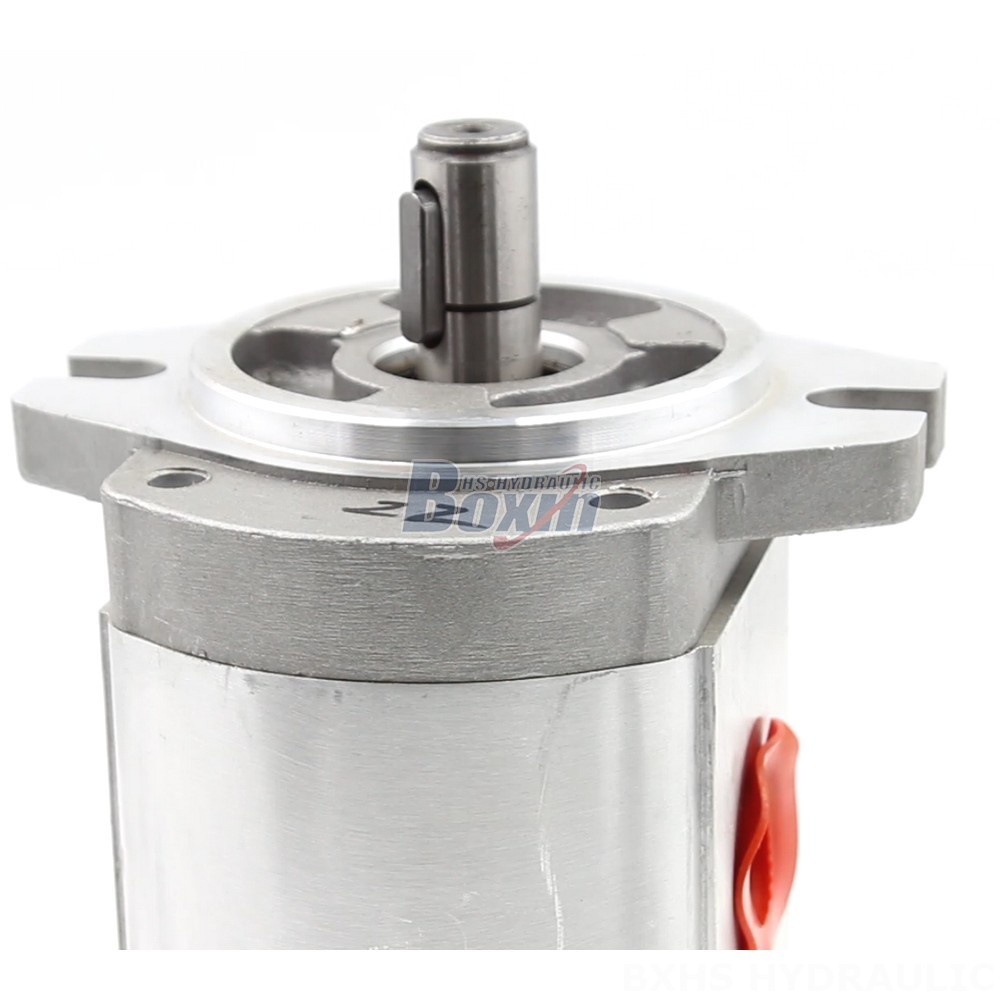

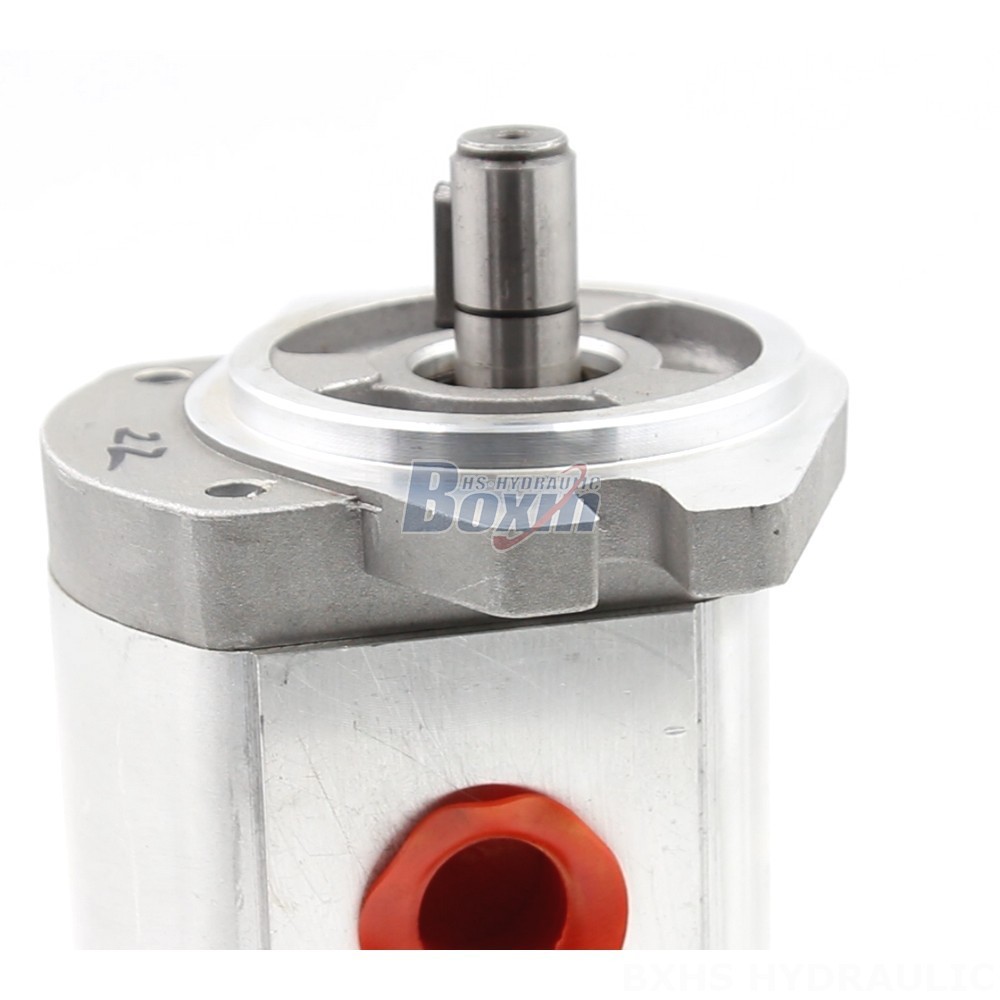

The CBHS-FL304 is an internal gear pump made of aluminium with an A-Oval flange and a plain key shaft. It is part of the CBHS-FL3 Series and is designed for a wide range of applications, including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors and front-end loaders, harvesters, and balers. The pump has a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min. The maximum speed is 3000 r/min. The pump is available in left (counter-clockwise) and right (clockwise) rotation configurations. This pump is manufactured and supplied globally, and we are looking for distributors, wholesalers, agents, and traders to join our network.
