Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit

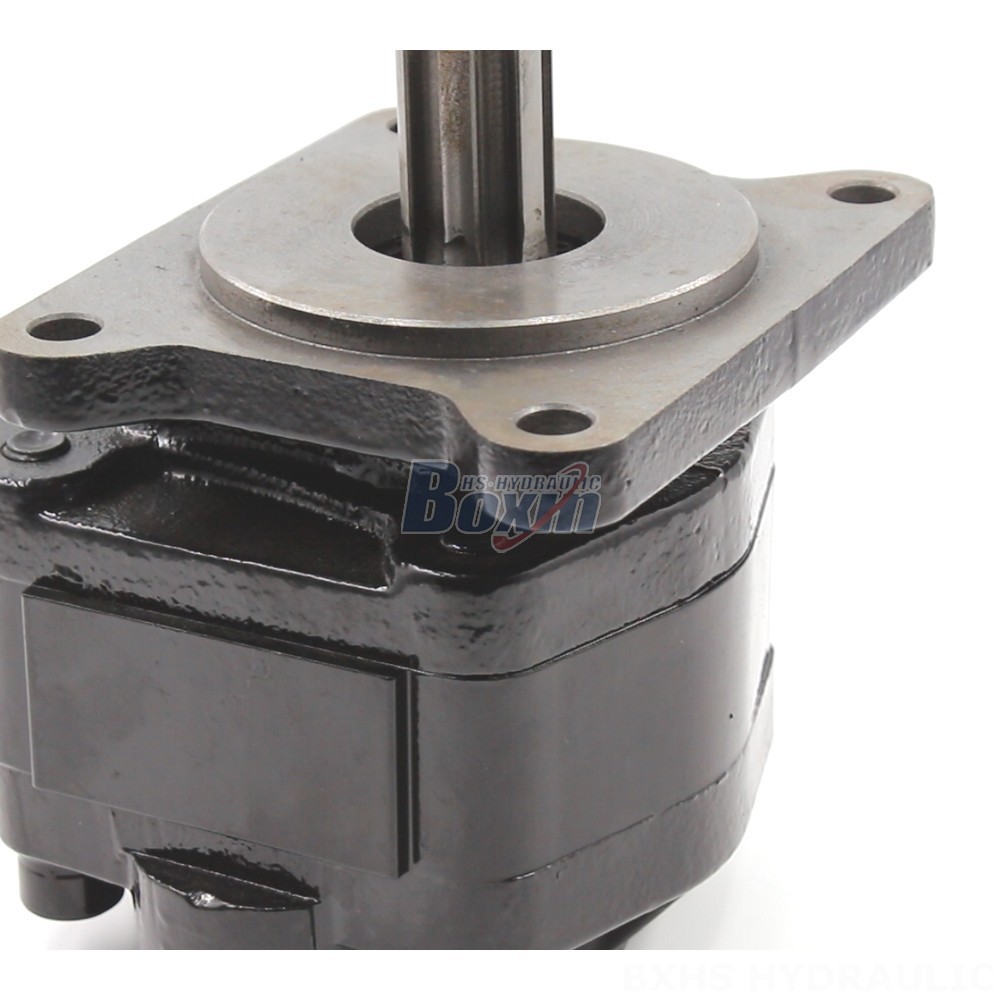

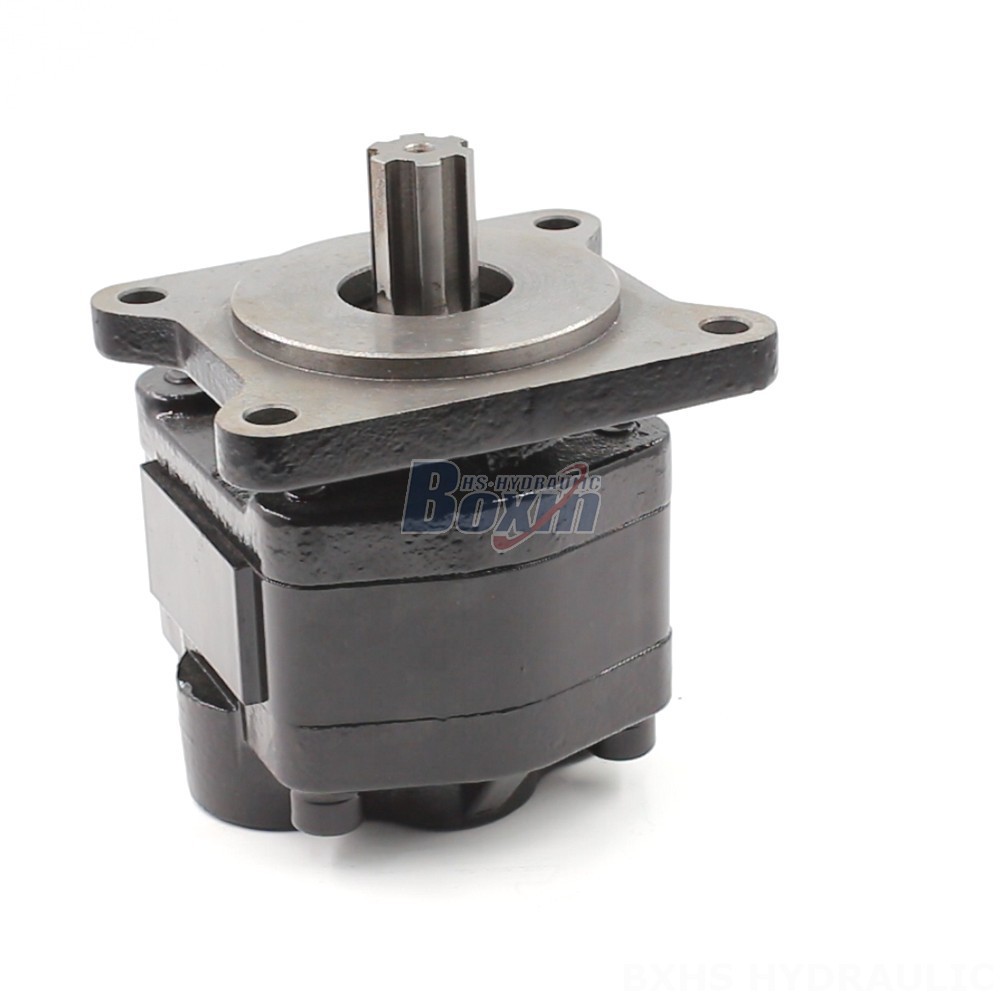

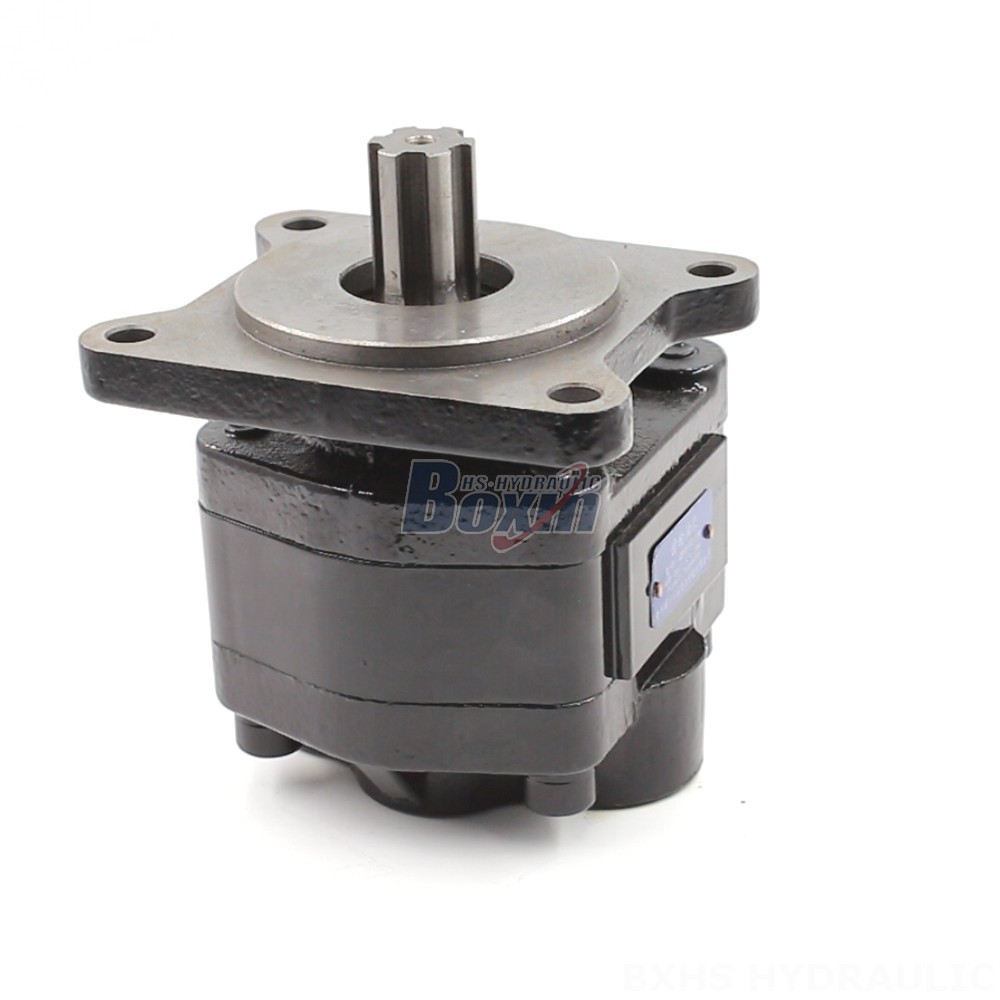

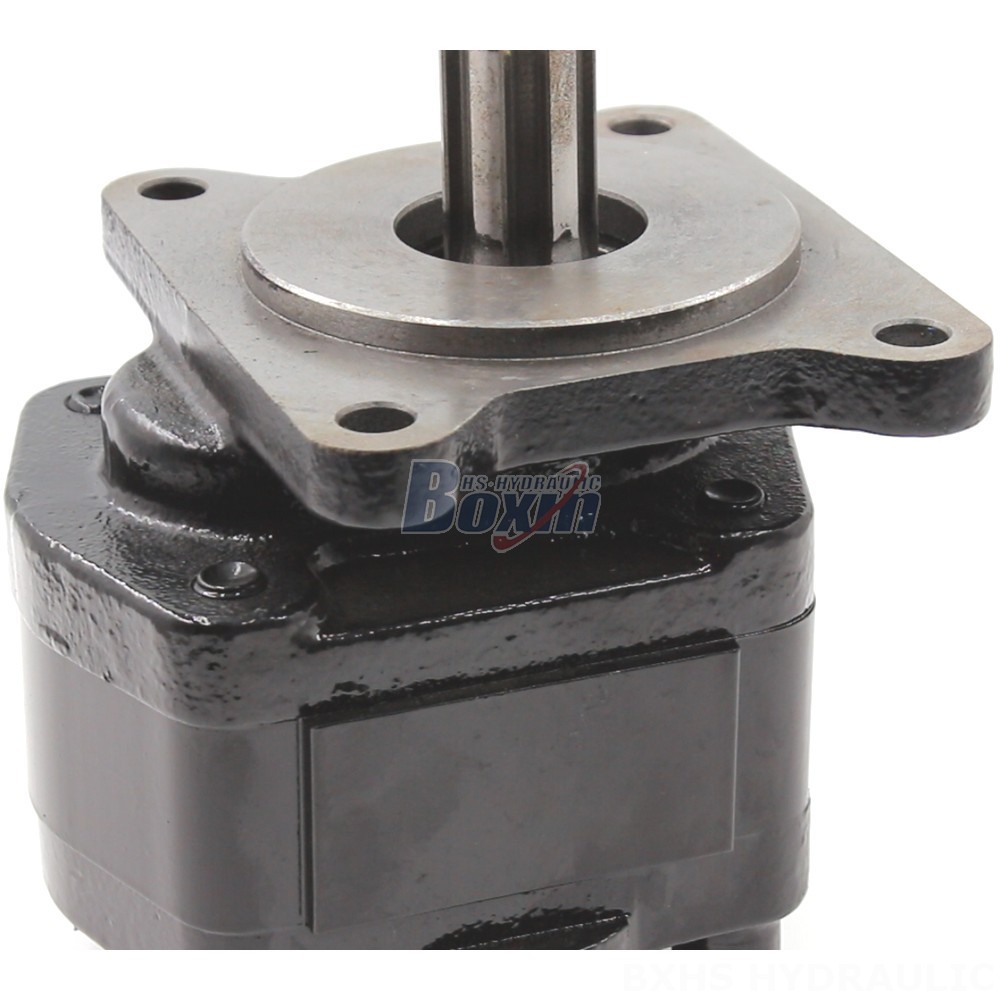

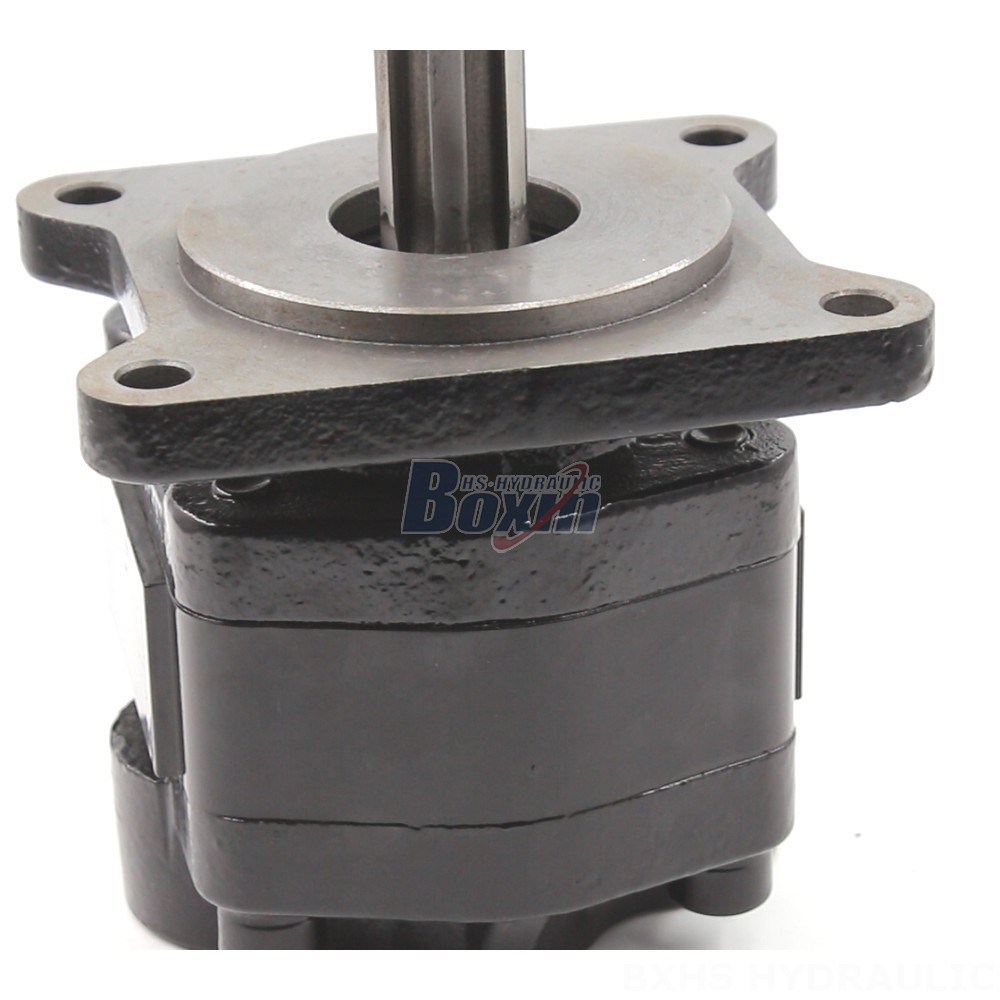

This product is a 20 cc/rev hydraulic gear pump, available in various displacements (32 cc/rev, 50 cc/rev, 63 cc/rev) and shaft types (Plain Key, Rectangle Spline, Involute Spline). It's designed for heavy-duty applications in various industries like material handling, construction, agriculture, and industrial vehicles.
| CBHS-F5 Serie Hydraulikzahnradpumpe Parameter | |
|---|---|
| Verdrängung | 32 cc/Umdr, 50 cc/Umdr, 63 cc/Umdr, 20 cc/Umdr |
| Nenndruck | 20 MPa (2900 psi) |
| Maximaldruck | 25 MPa (3625 psi) |
| Nenndrehzahl | 2000 U/min |
| Maximaldrehzahl | 2500 U/min |
| Drehrichtung | Links (entgegen dem Uhrzeigersinn), Rechts (im Uhrzeigersinn) |
| Material | Gusseisen |
| Struktur | Außenverzahnte Pumpe |
| Flanschversion | B-Vierkantflansch |
| Wellentyp | H: Rechteckige Keilwelle, X: Evolventenverzahnte Keilwelle, P: einfacher Schlüssel |
The CBHS-F5 Series 20 cc/rev hydraulic gear pump is a robust and reliable power source for various machinery. Featuring a cast iron construction, B-Square flange, and a rated pressure of 20 MPa (2900 psi), this pump delivers high performance and durability. It is available in three displacement options (32 cc/rev, 50 cc/rev, 63 cc/rev) to suit diverse application requirements. Choose from different shaft types (Plain Key, Rectangle Spline, Involute Spline) for compatibility with your existing system. This pump is ideal for use in material handling equipment like forklifts and telehandlers, construction and earth moving machines such as mini-excavators, midi-excavators, skid steer loaders, and compact wheel loaders, as well as agricultural machinery like tractors and harvesters.
