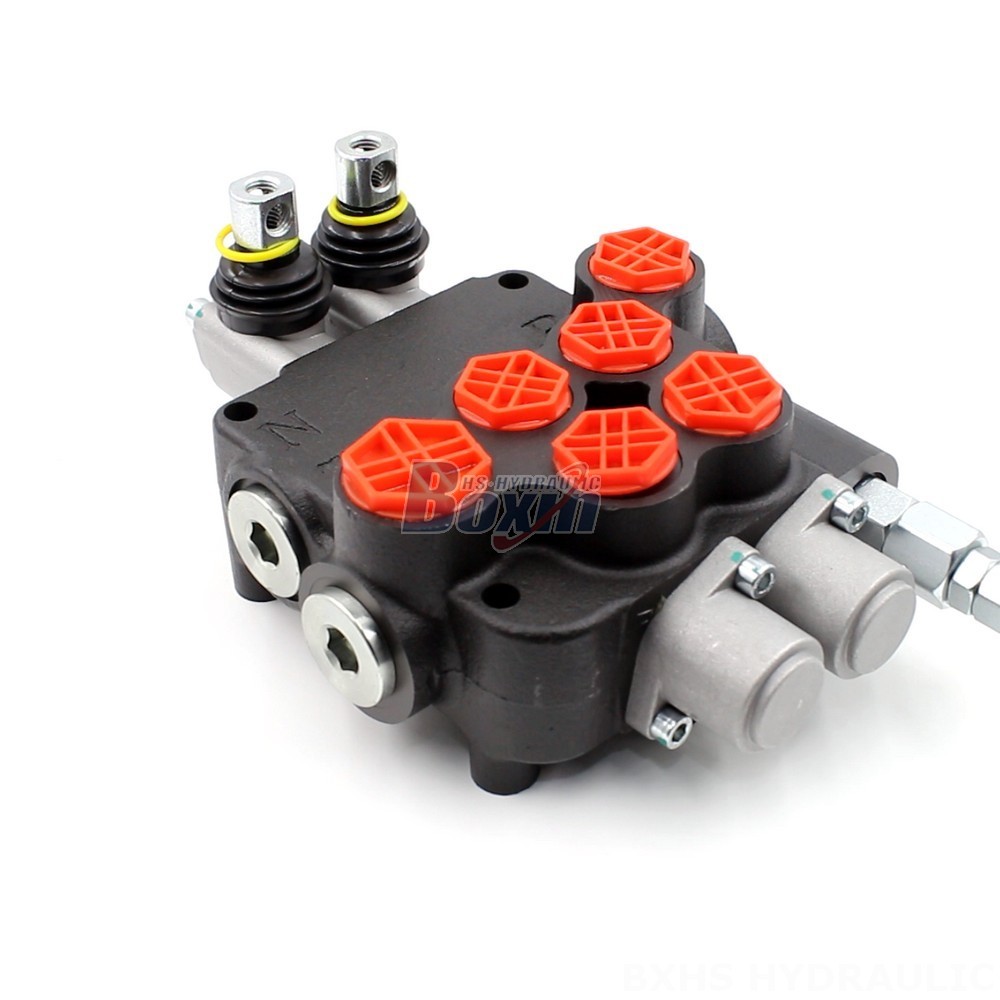

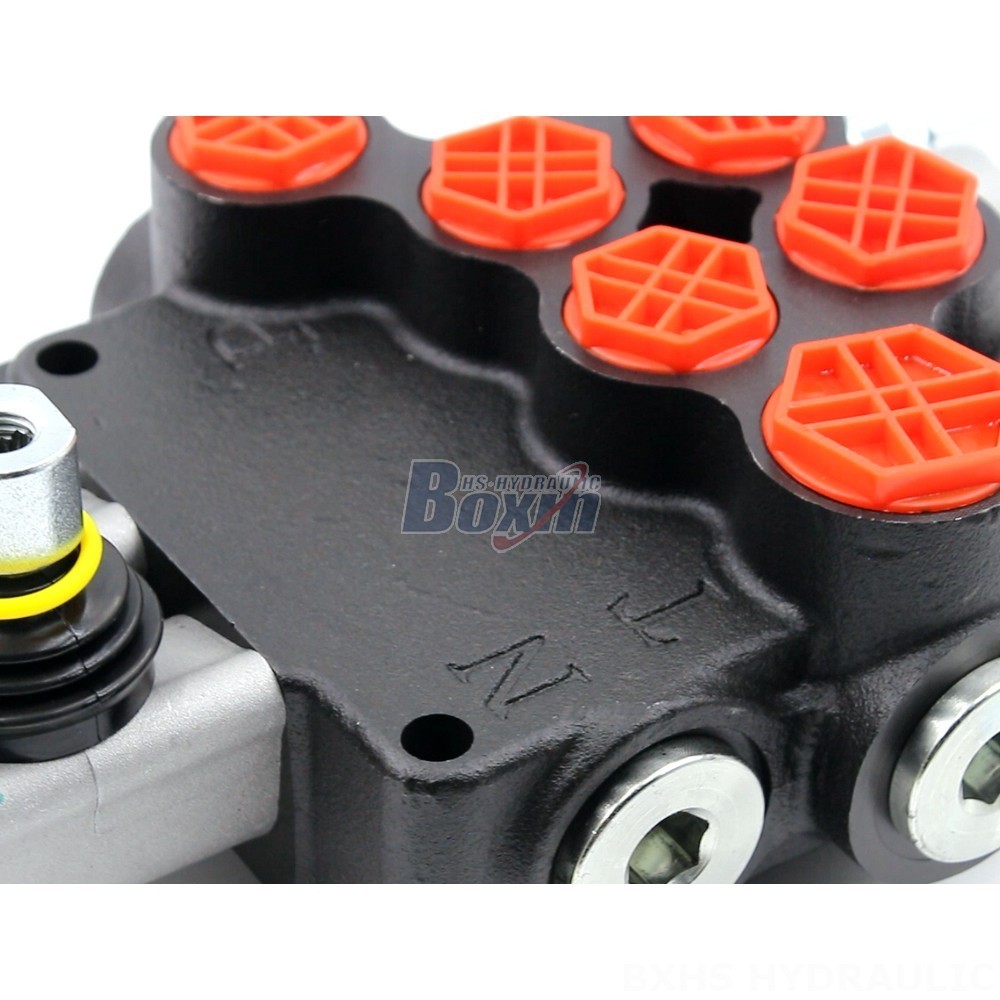

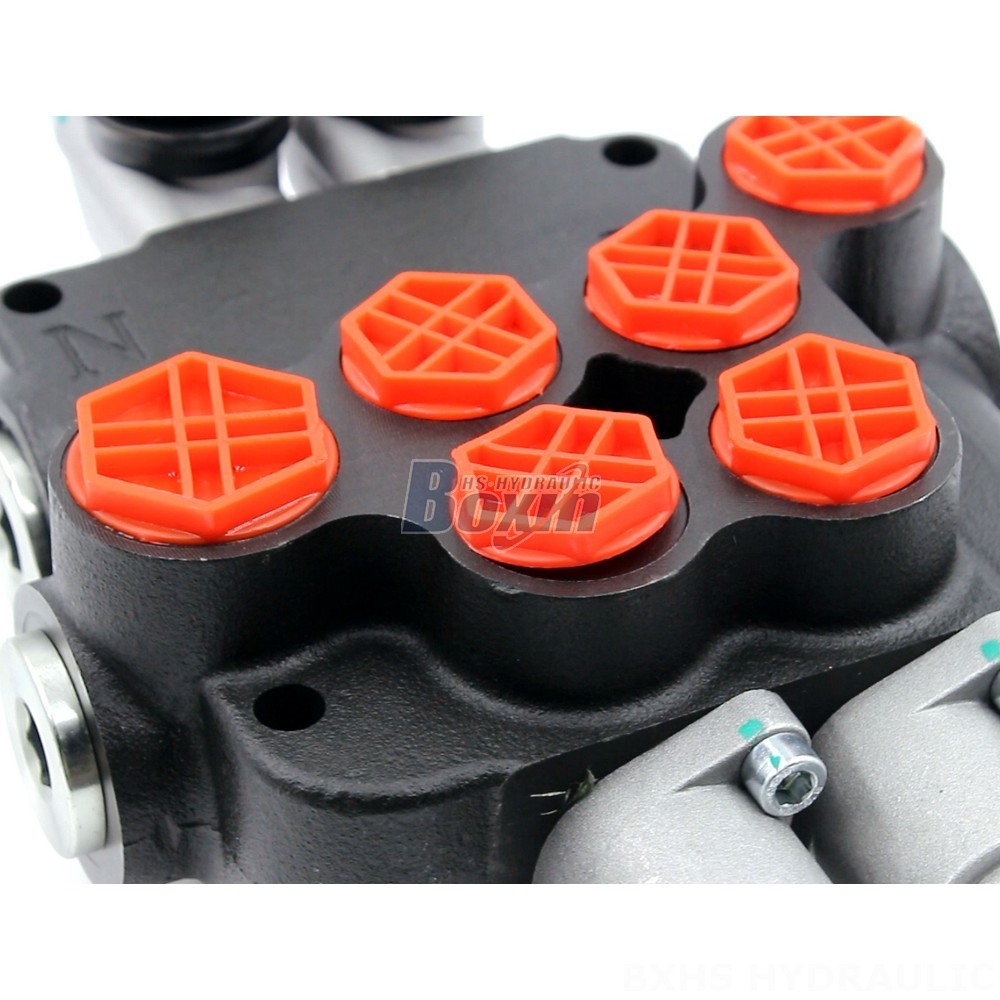

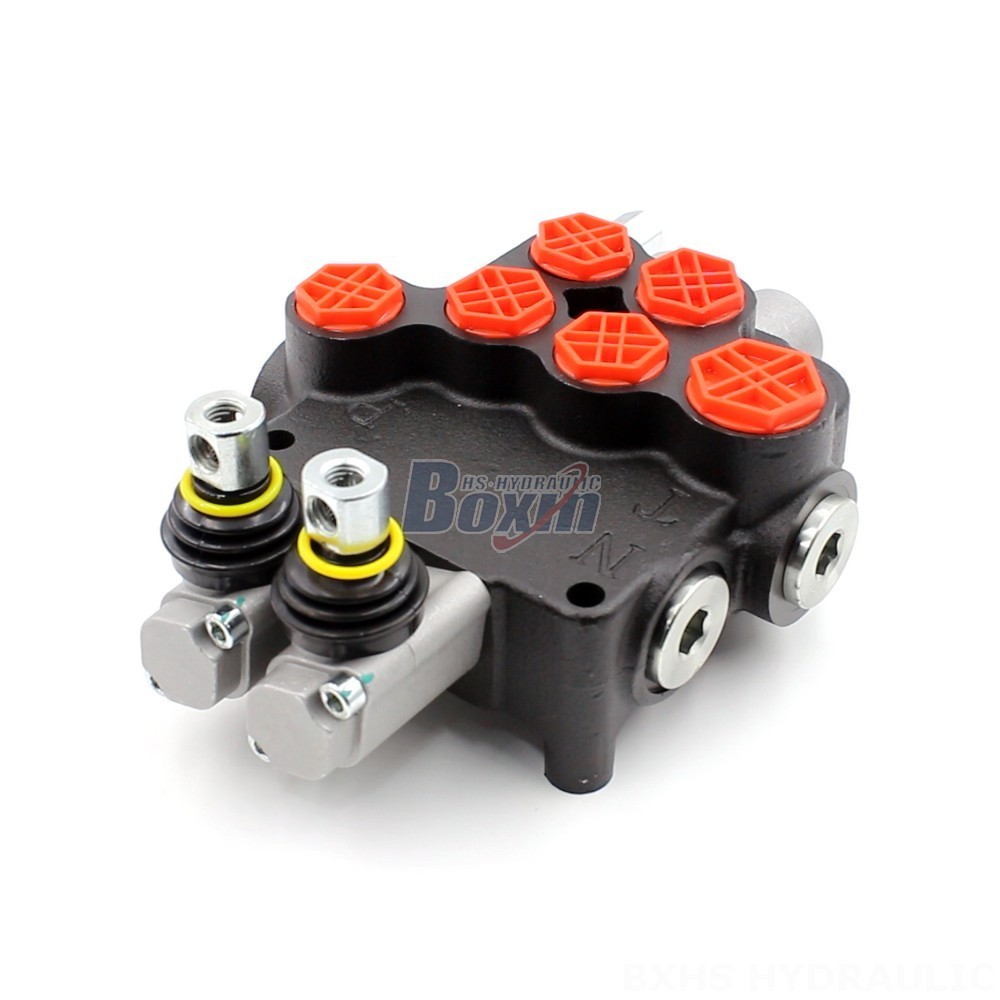

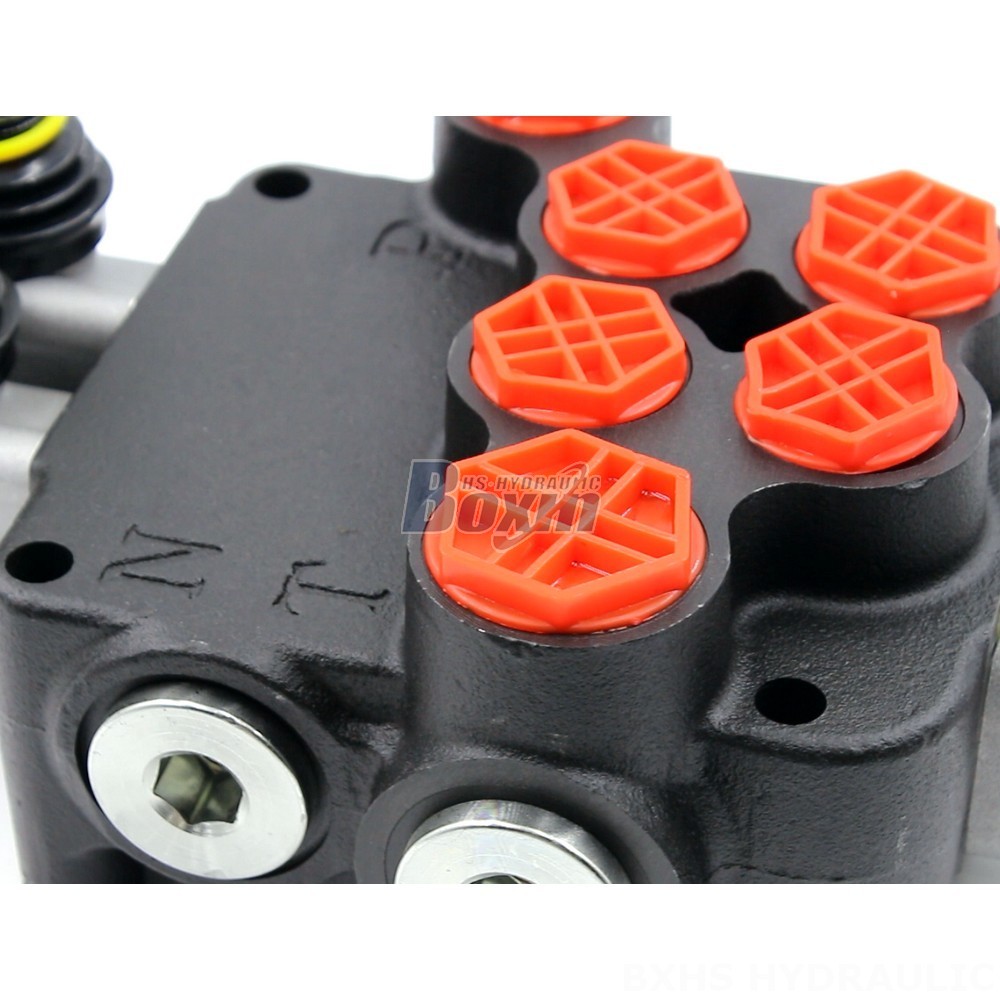

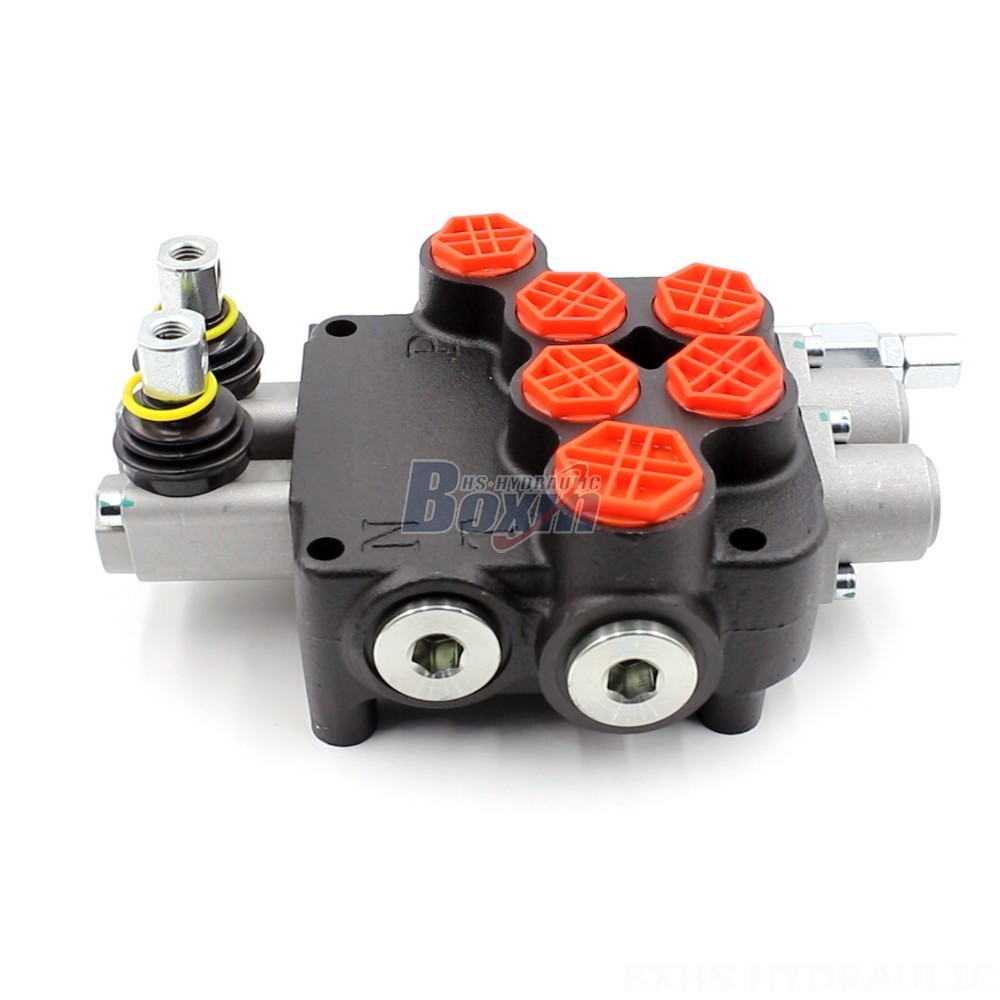

Introducing our Bespoke Hydraulic Solutions: P80-G12-G34-OW Directional Control Valves, meticulously designed and manufactured to meet your unique hydraulic system requirements. These high-performance valves are customizable to fit your specific application, ensuring optimal control and efficiency.
| P80 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Anschlussgröße | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**P80 Series Customizable Directional Control Valves**
**Key Features:**
- Manual control for precise operation
- Monoblock valve construction for durability and compactness
- Rated flow of 80 L/min (21.2 US gpm) for efficient hydraulic fluid flow
- Maximum pressure of 250 bar (3600 psi) for demanding applications
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for versatility
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for wide-ranging operation
**Applications:**
- Material Handling: Telehandlers, Forklifts
- Construction and Earth Moving: All Terrain Cranes, Stackers, Motor Graders
- Agriculture: Tractors, Harvesters
- Industrial Vehicles: Aerial Platforms, Skid Steer Loaders
Our P80 Series Directional Control Valves are meticulously engineered to provide exceptional performance and reliability, making them the ideal choice for a wide array of mobile hydraulic applications.
