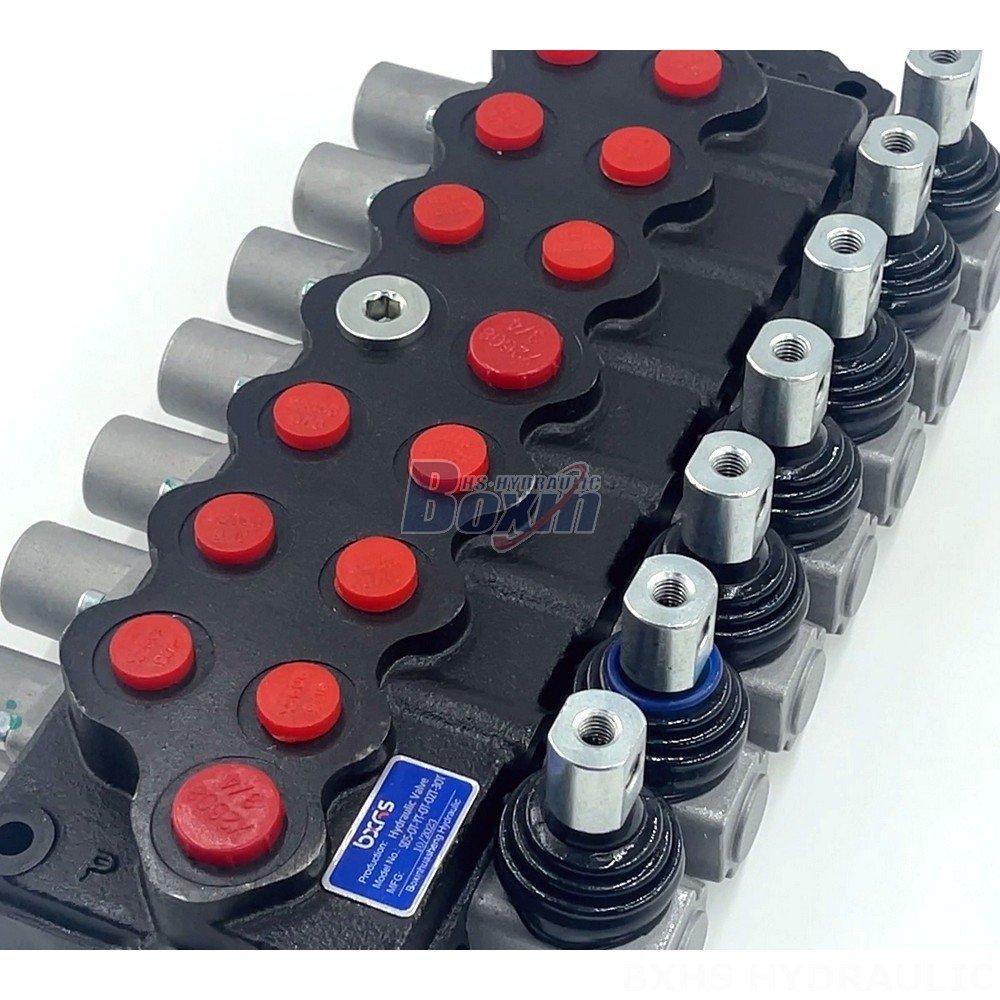

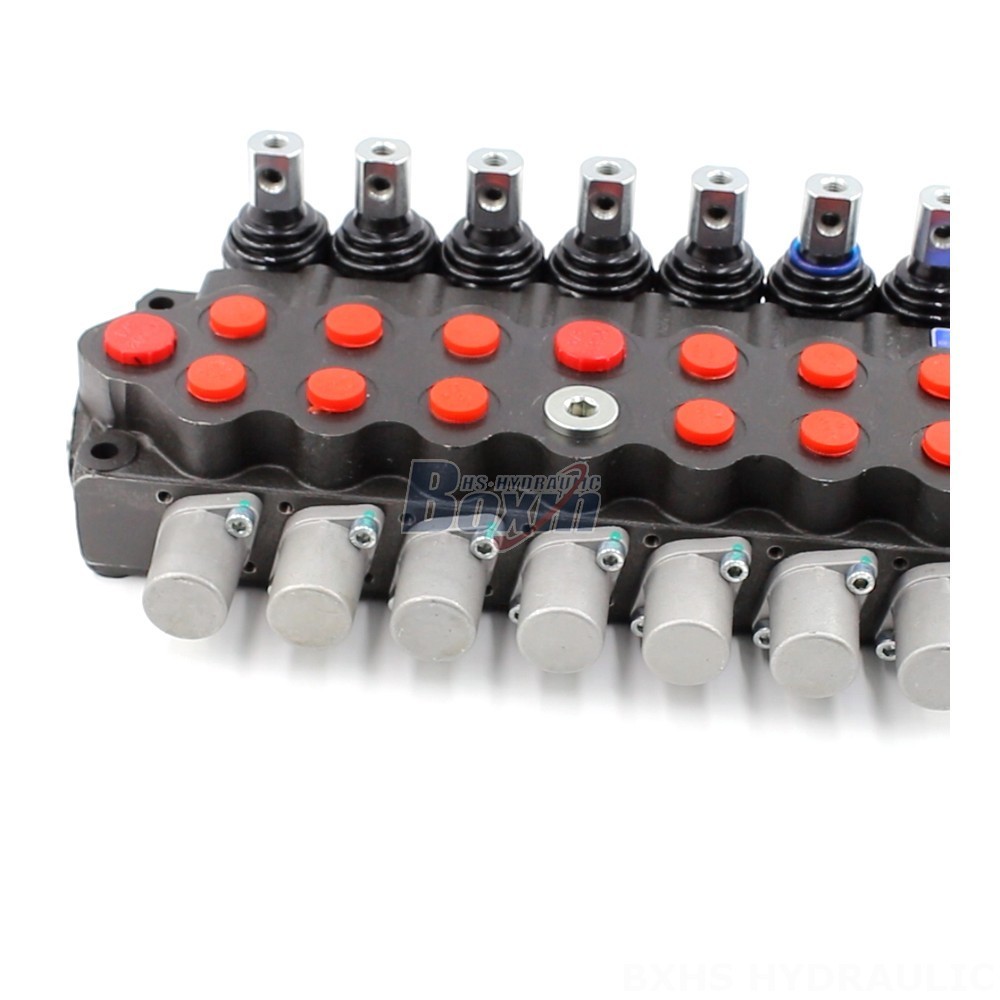

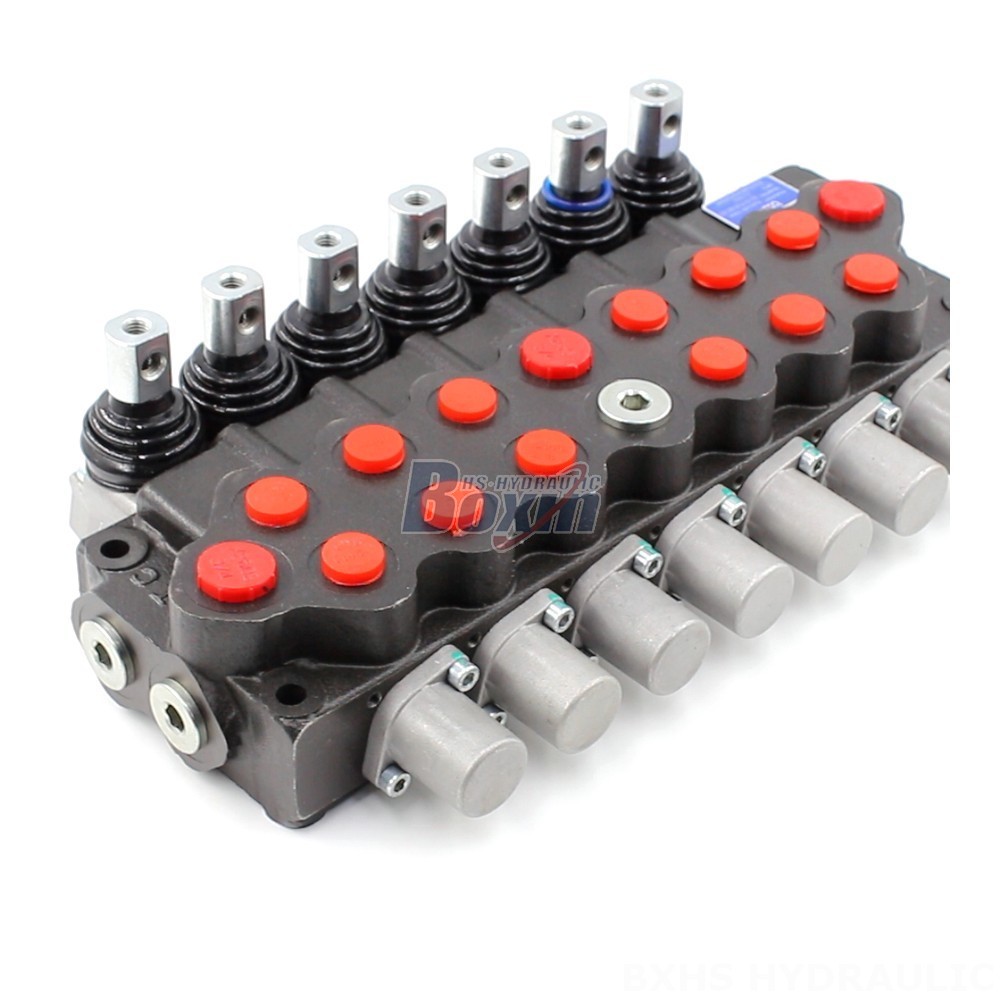

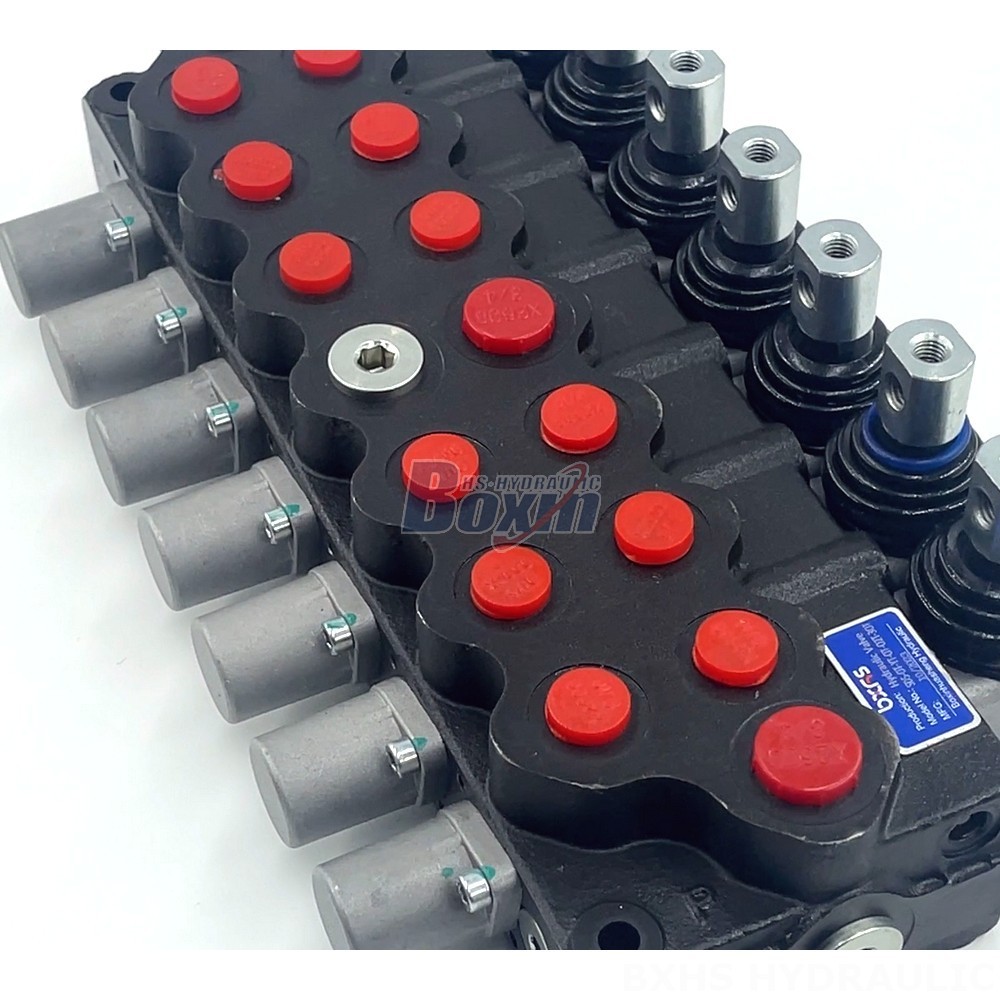

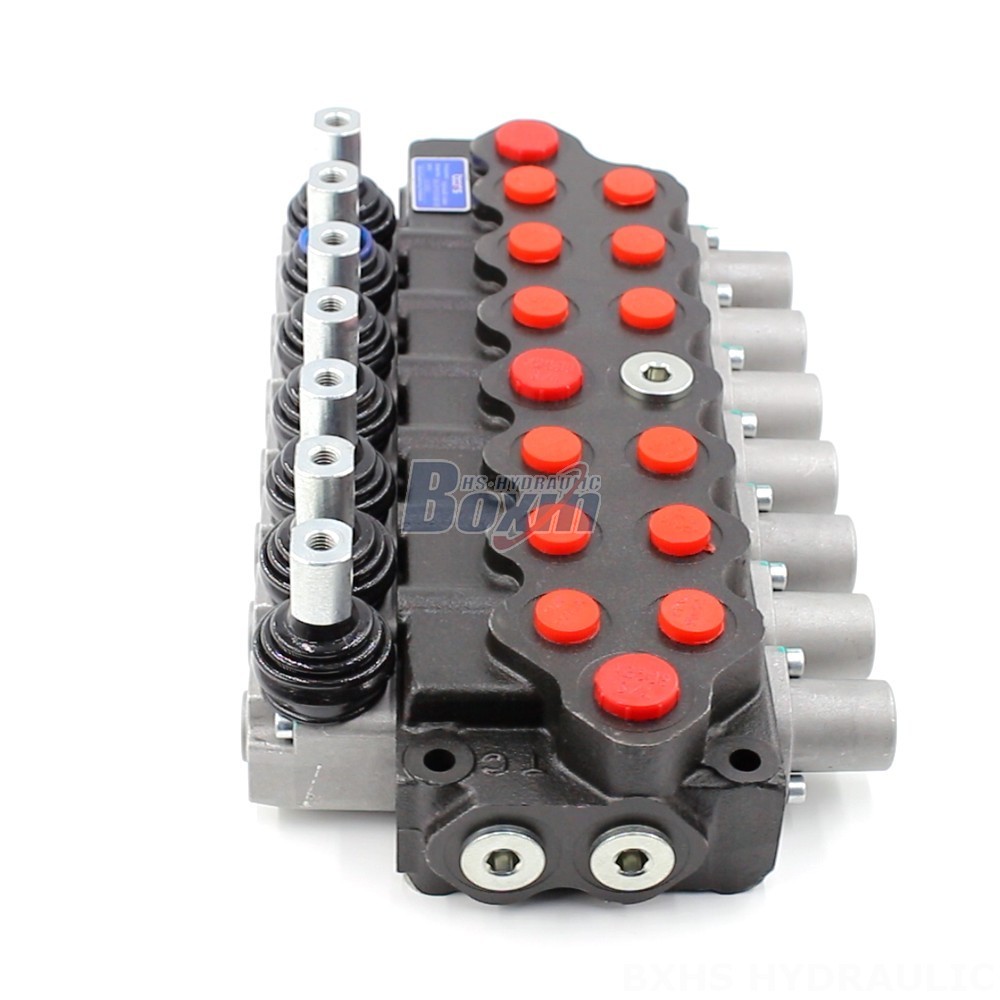

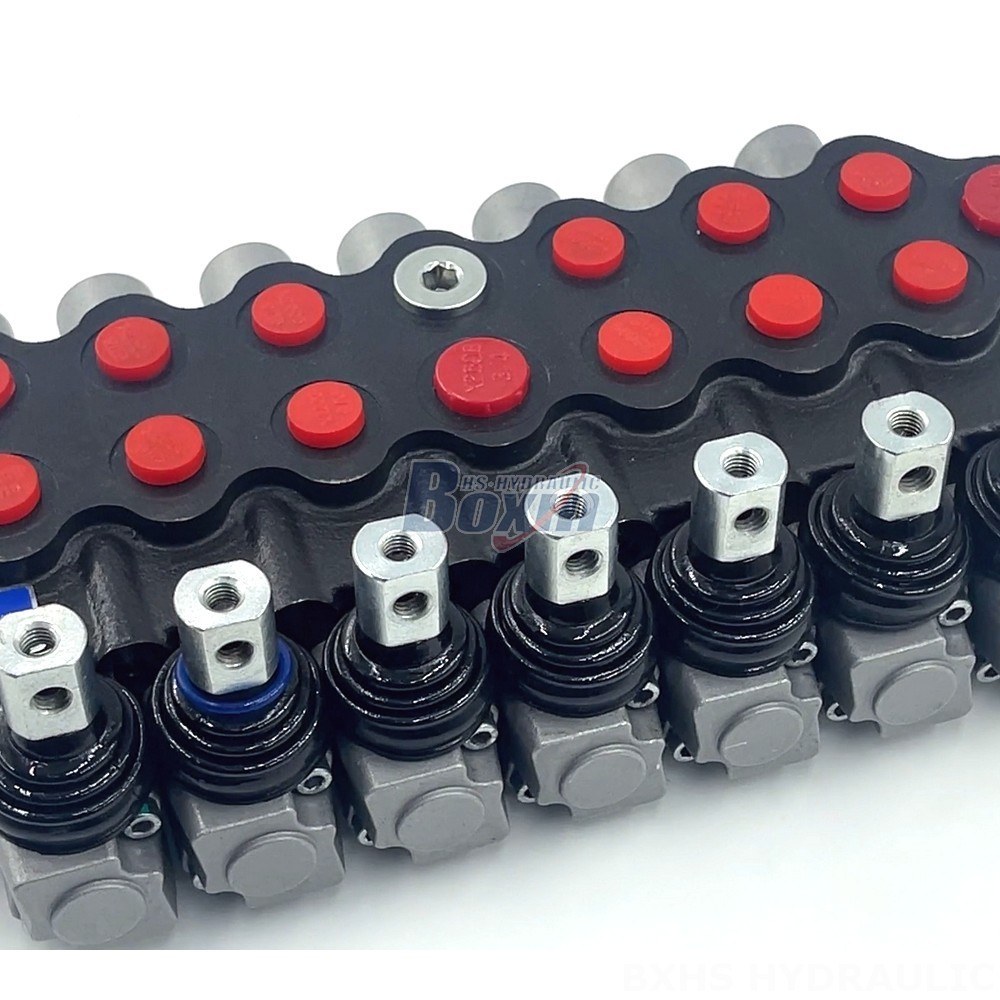

The SD5 Series 7-Spool Hydraulic Multiplier Valve is a high-performance, monoblock valve designed for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. With its 7 spools and rated flow of 40 L/min, it provides precise control and efficient operation.
| SD5-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +60 °C (-40 °F bis +140 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 305 bar (4400 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Anschlussgröße | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
This 7-Spool Hydraulic Multiplier Valve is built with a robust monoblock construction, providing exceptional durability and reliability. It features a rated flow of 40 L/min, a maximum pressure rating of 305 bar (4400 psi), and a wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). Designed for demanding environments, it operates within an ambient temperature range of -40°C to +60°C (-40°F to +140°F). With its manual control and 7 spools, this valve offers precise control for a variety of hydraulic functions. This Hydraulic Multiplier Valve is ideal for applications such as telehandlers, forklifts, stackers, aerial platforms, mini-excavators, compact wheel loaders, harvesters, bale wrappers, seeding machines, and wood splitters.
