Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit

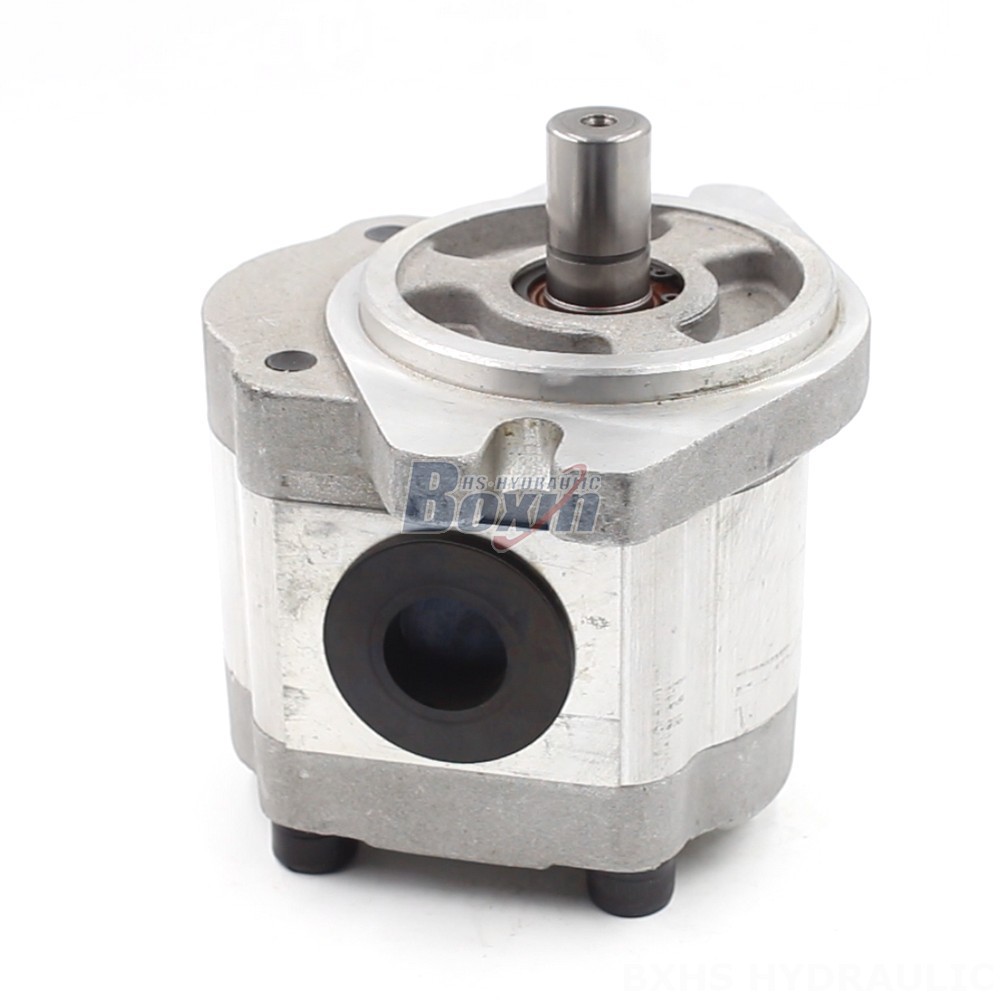

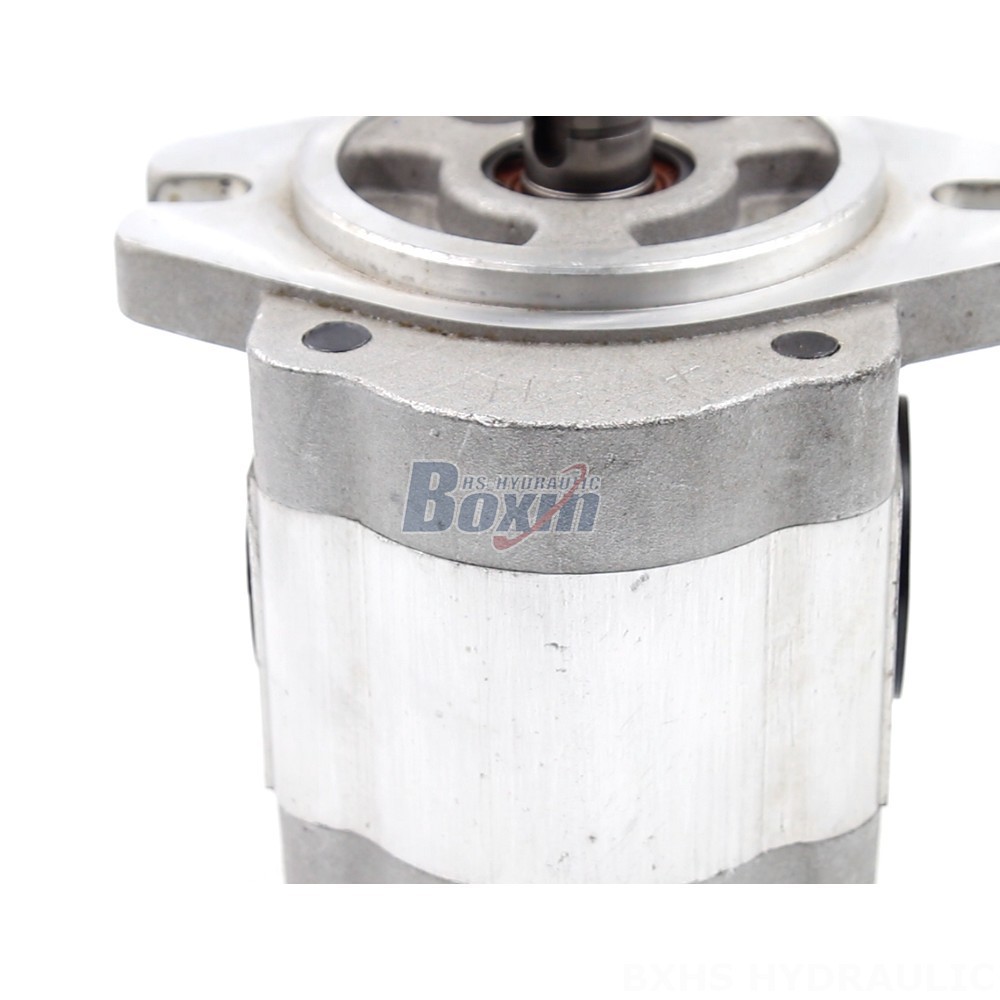

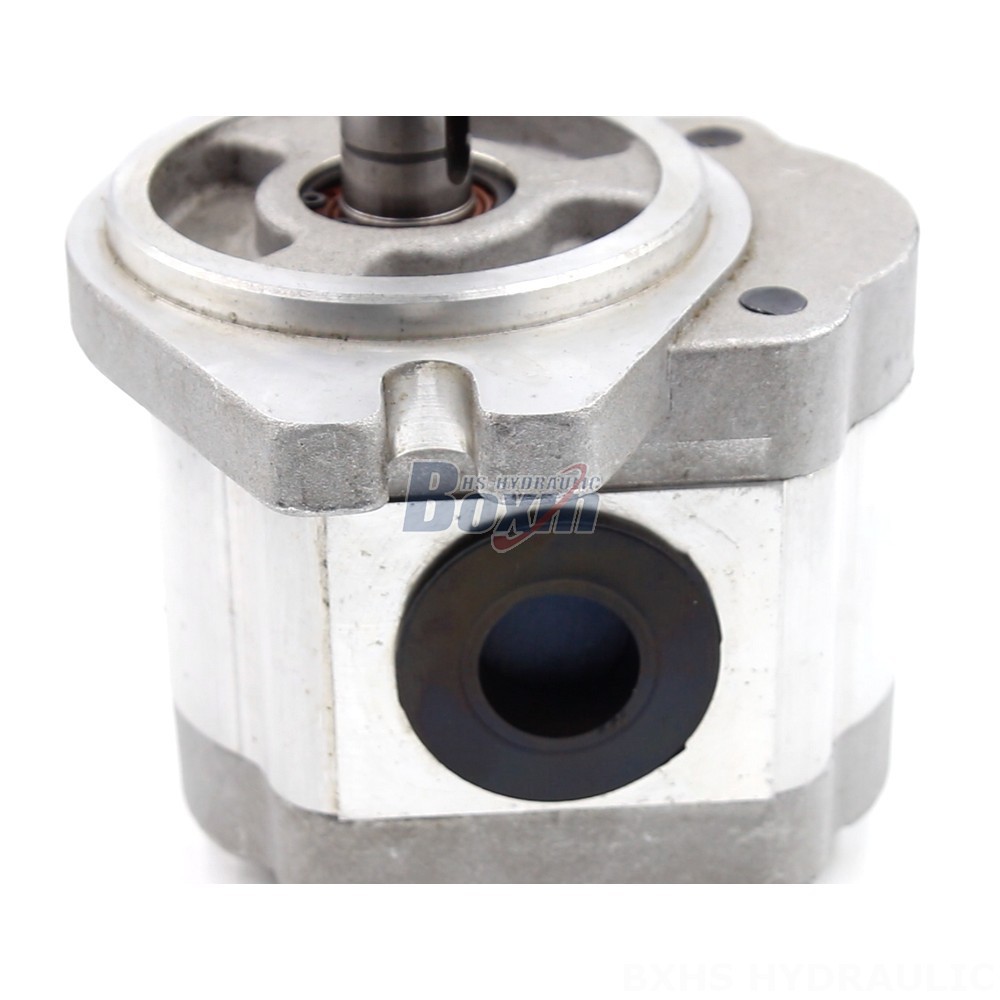

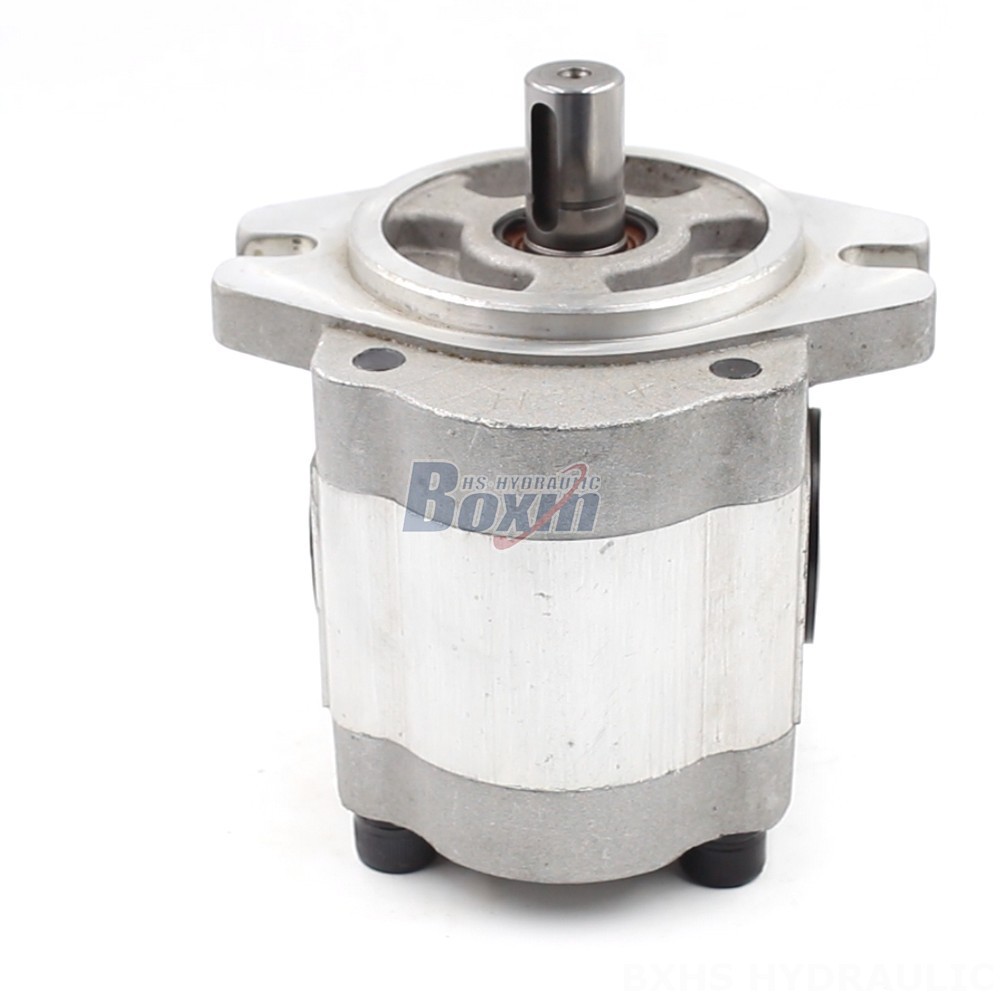

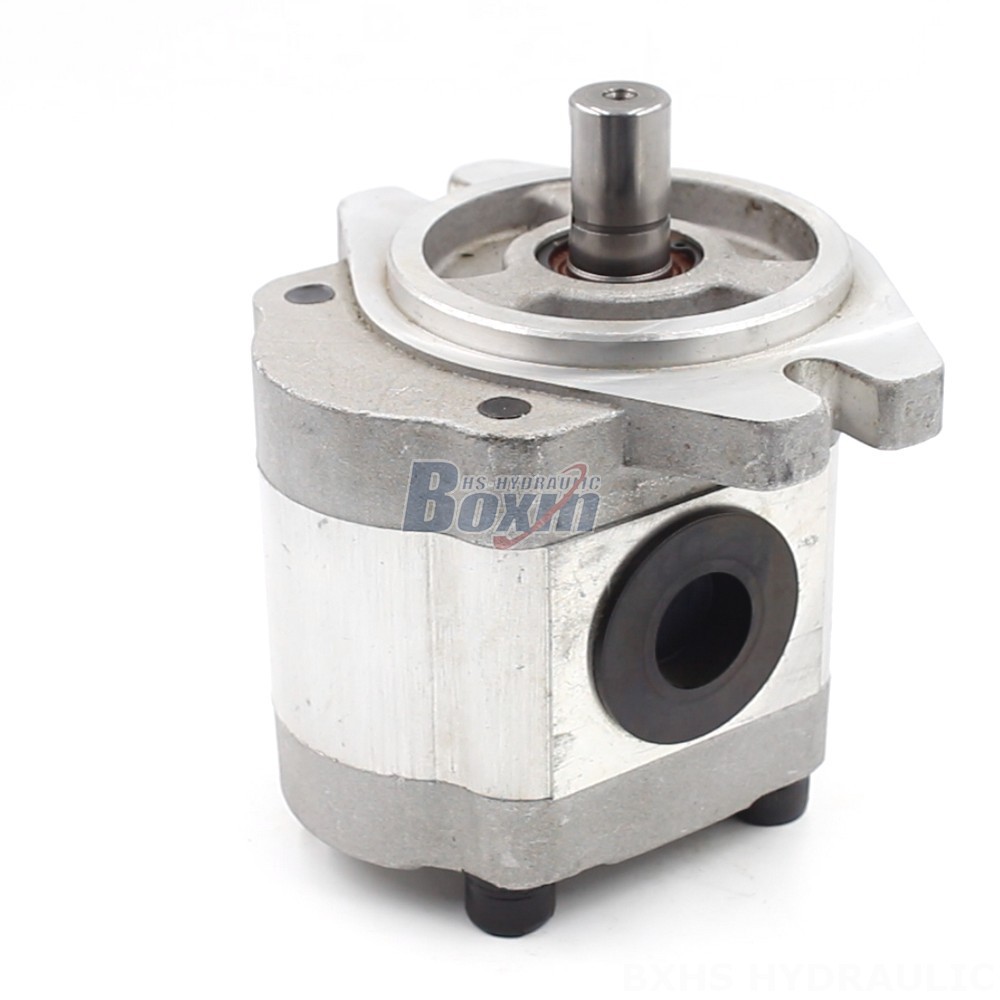

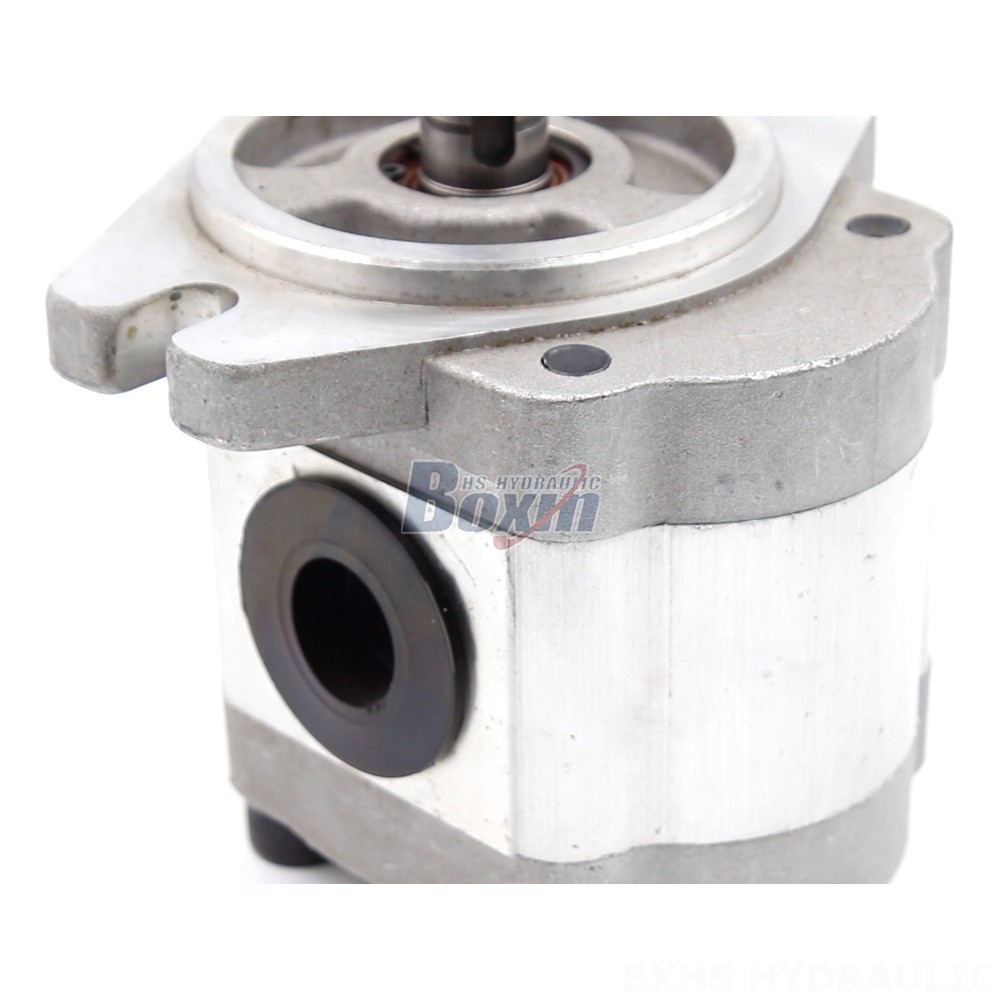

This high-quality hydraulic gear pump offers a displacement of 10 cc/rev, rated pressure of 20 MPa (2900 psi), and rated speed of 2000 r/min. It is available in various configurations and is ideal for use in a wide range of applications including construction, agriculture, and industrial vehicles.
| CBHS-FL3 Serie Hydraulikzahnradpumpe Parameter | |
|---|---|
| Verdrängung | 10 cc/Umdr, 4 cc/Umdr, 20 cc/Umdr, 16 cc/Umdr, 14 cc/Umdr, 6 cc/Umdr |
| Nenndruck | 20 MPa (2900 psi) |
| Maximaldruck | 25 MPa (3625 psi) |
| Nenndrehzahl | 2000 U/min |
| Maximaldrehzahl | 3000 U/min |
| Drehrichtung | Links (entgegen dem Uhrzeigersinn), Rechts (im Uhrzeigersinn) |
| Material | Aluminium |
| Struktur | Außenverzahnte Pumpe |
| Flanschversion | A-Ovalflansch |
| Wellentyp | H: Rechteckige Keilwelle, X: Evolventenverzahnte Keilwelle, P: einfacher Schlüssel |
This 6 cc/rev Hydraulic Gear Pump is manufactured with high-quality materials and is designed for durability and reliability. It features an A-Oval flange and a Plain Key shaft, making it compatible with a variety of applications. The pump offers a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min. It is also customizable to meet specific requirements. This pump is ideal for use in construction equipment, agricultural machinery, and industrial vehicles. It is particularly well-suited for telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, tractors and front-end loaders, harvesters, balers, and sprayers. As a manufacturer, we offer factory direct pricing, OEM, ODM, and private label services. We are also actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
