Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit

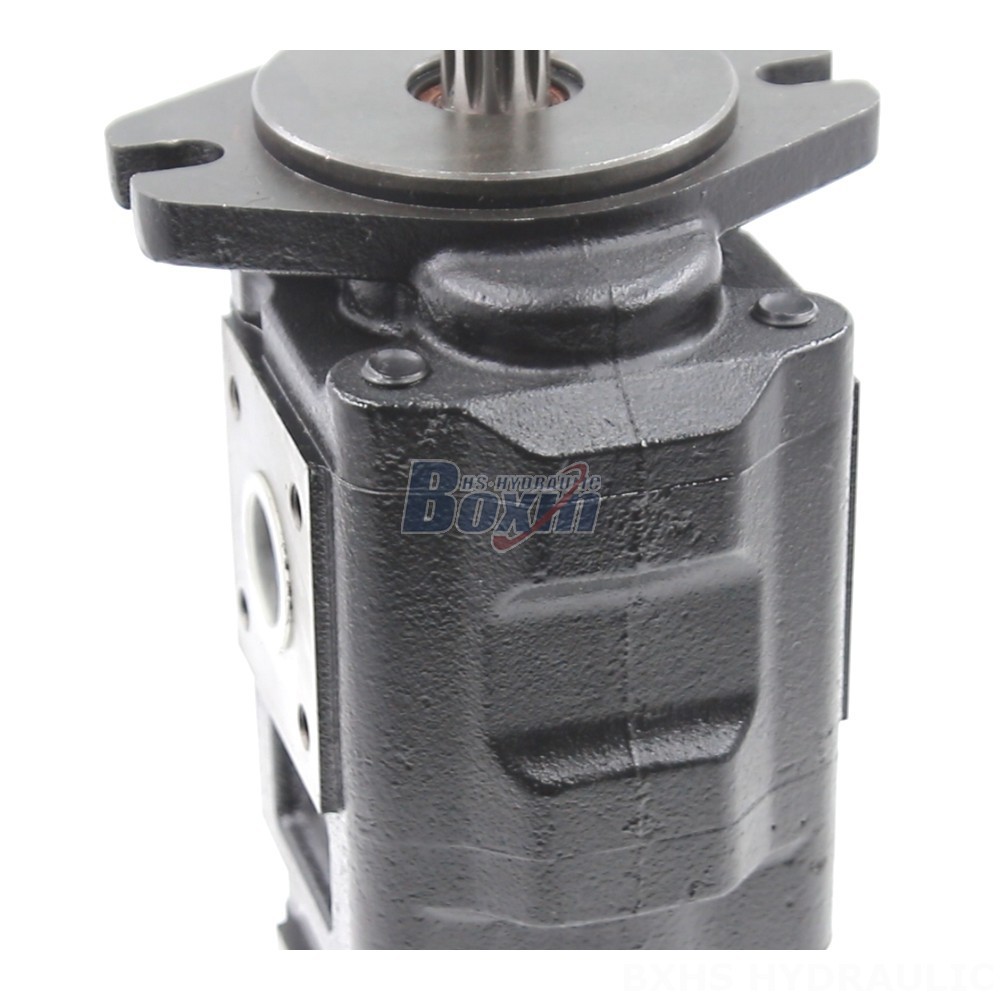

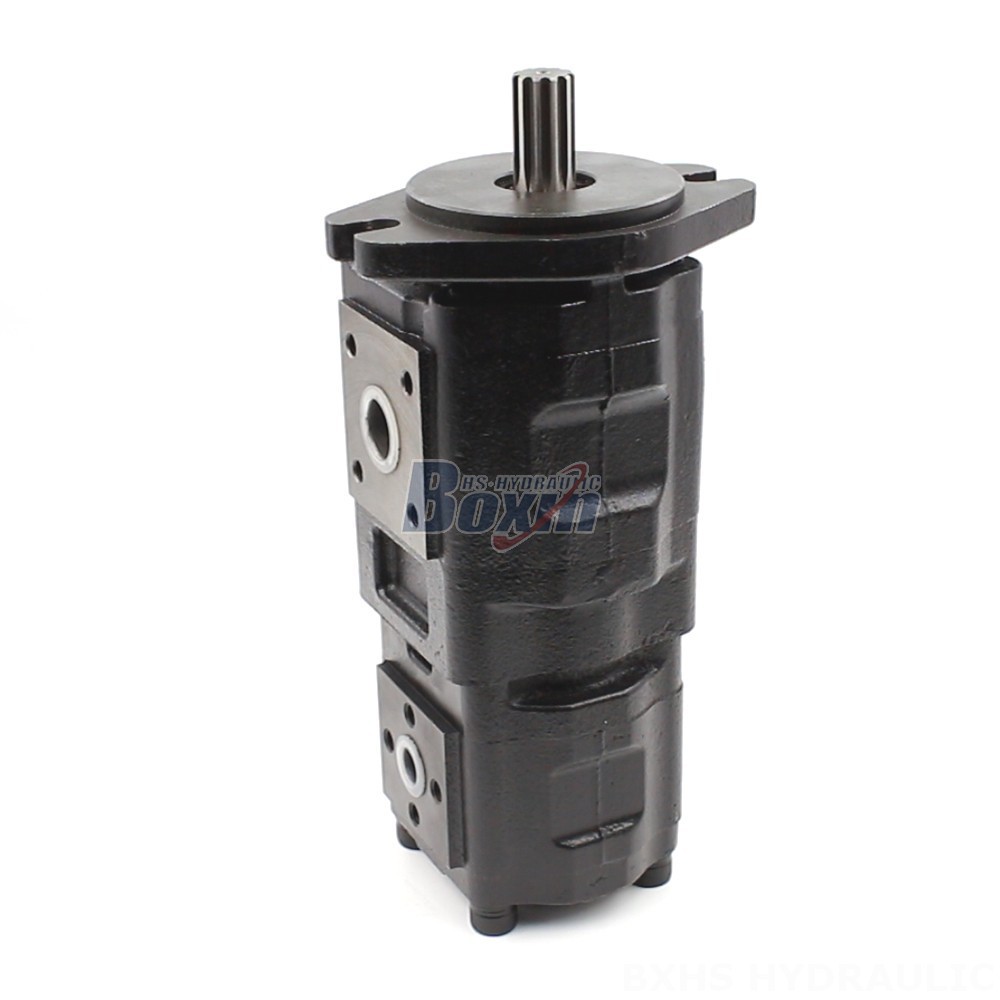

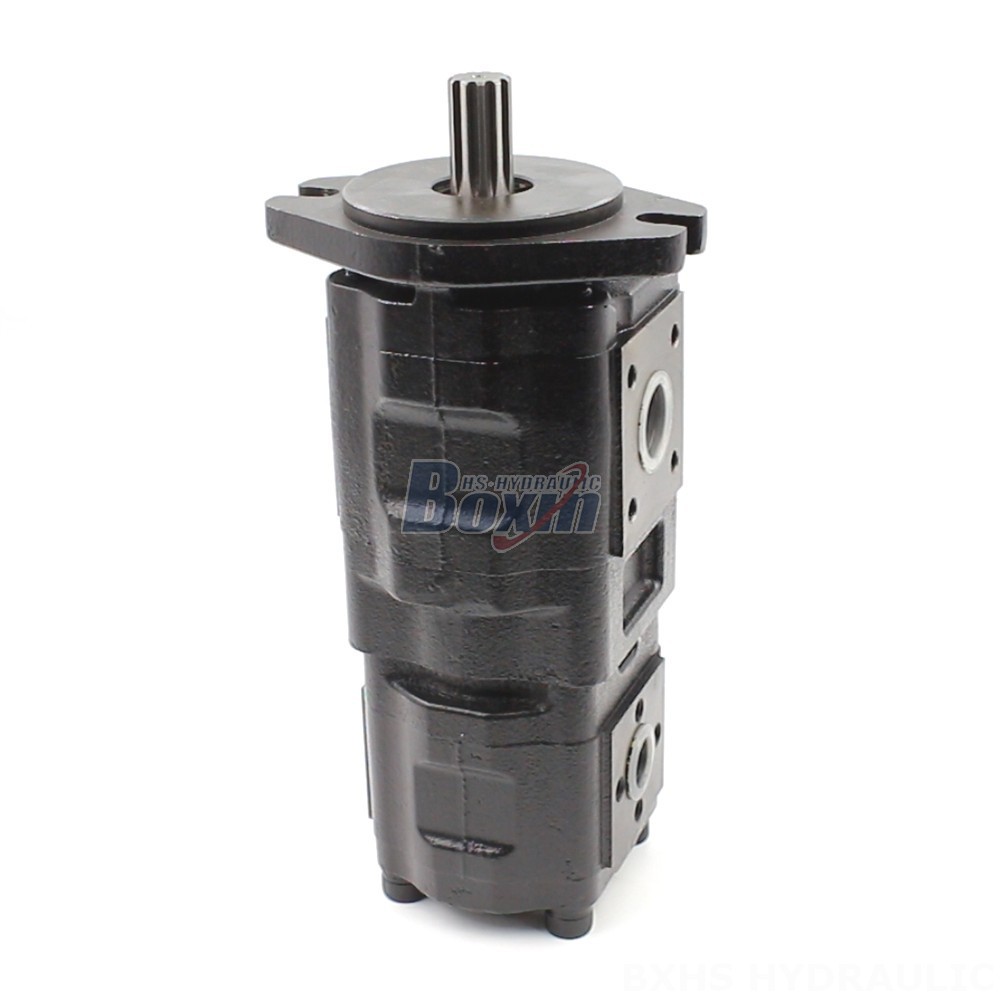

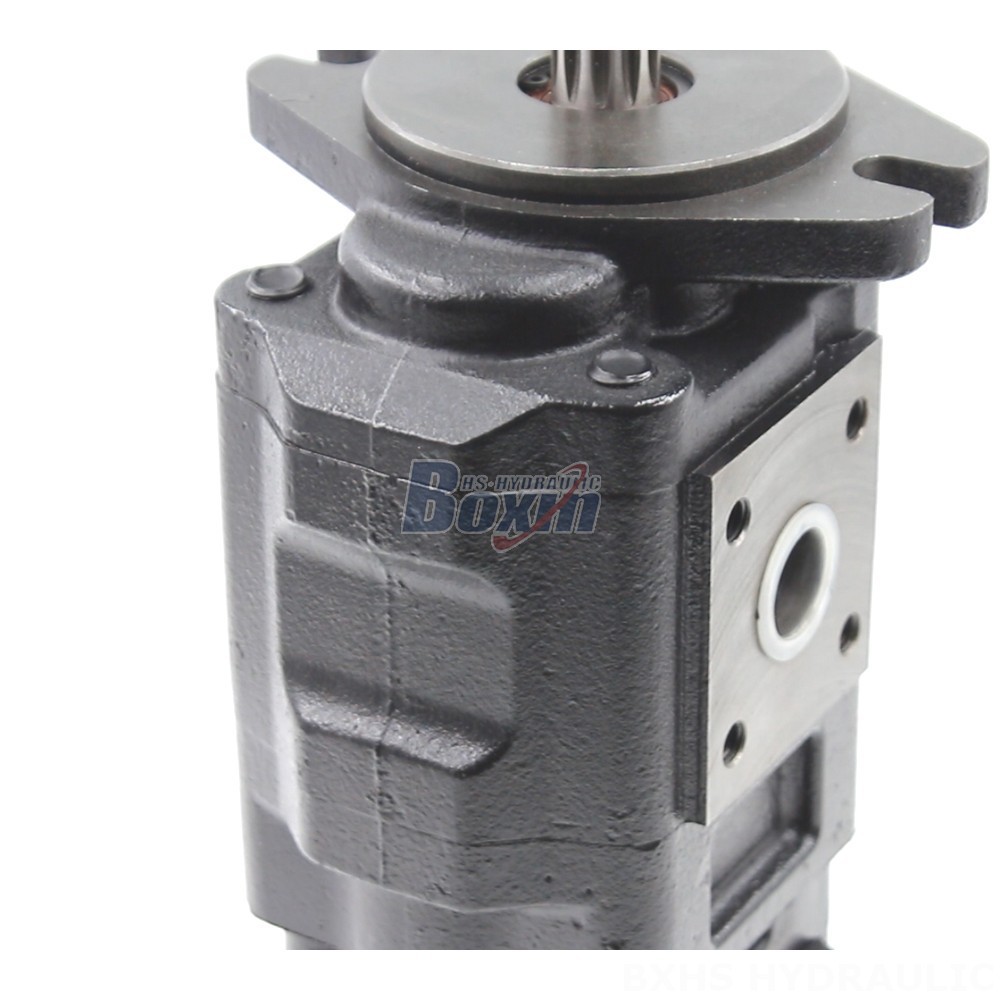

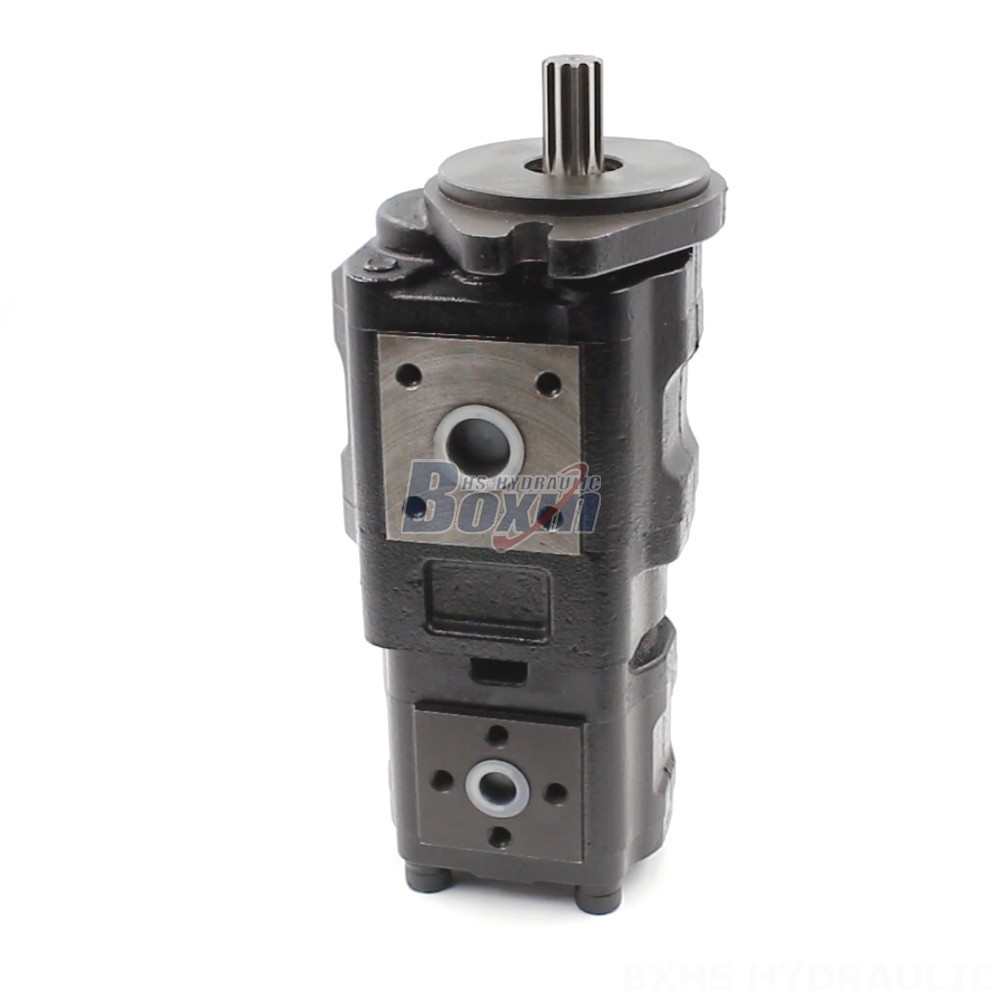

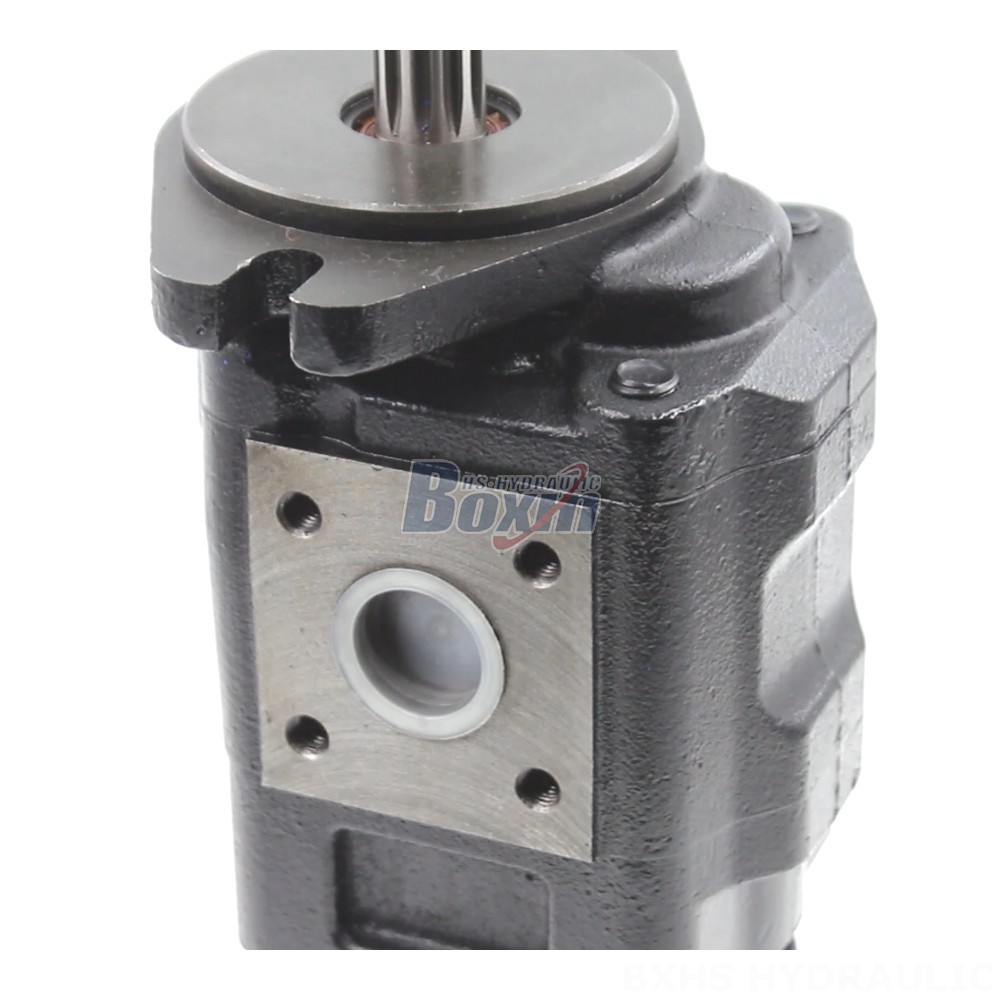

Our 40 cc/rev Hydraulic Gear Pump is a high-performance and reliable solution for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. Available in various displacements, pressure ratings, and configurations, this pump is designed for durability and efficiency.
| CBHS-F4 Serie Hydraulikzahnradpumpe Parameter | |
|---|---|
| Verdrängung | 40 cc/Umdr, 25 cc/Umdr, 20 cc/Umdr |
| Nenndruck | 20 MPa (2900 psi), 25 MPa (3625 psi) |
| Maximaldruck | 25 MPa (3625 psi) |
| Nenndrehzahl | 2000 U/min |
| Maximaldrehzahl | 2500 U/min |
| Drehrichtung | Links (entgegen dem Uhrzeigersinn), Rechts (im Uhrzeigersinn) |
| Material | Gusseisen, Aluminiumguss, Aluminium |
| Struktur | Nockenscheibenpumpe |
| Flanschversion | A-Ovalflansch, B-Vierkantflansch, ISO-4-Befestigungslöcher, UNI-3-Befestigungslöcher, SAE-Flansch |
| Wellentyp | H: Rechteckige Keilwelle, X: Evolventenverzahnte Keilwelle, P: einfacher Schlüssel |
This 40 cc/rev Hydraulic Gear Pump is a robust and efficient power source for heavy-duty applications. Featuring a cam plate type design, it delivers high flow rates and pressures for reliable operation. With a range of displacements from 32 cc/rev to 80 cc/rev, rated pressures up to 25 MPa (3625 psi), and maximum speeds up to 2500 r/min, this pump offers flexibility and customization to meet specific requirements. The pump's durable construction ensures long-term performance and reliability in demanding environments. Available with A-Oval or B-Square flanges and a rectangle spline shaft, it can be easily integrated into various systems. Our 40 cc/rev Hydraulic Gear Pump is ideal for applications in telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, tractors, front-end loaders, and harvesters.
