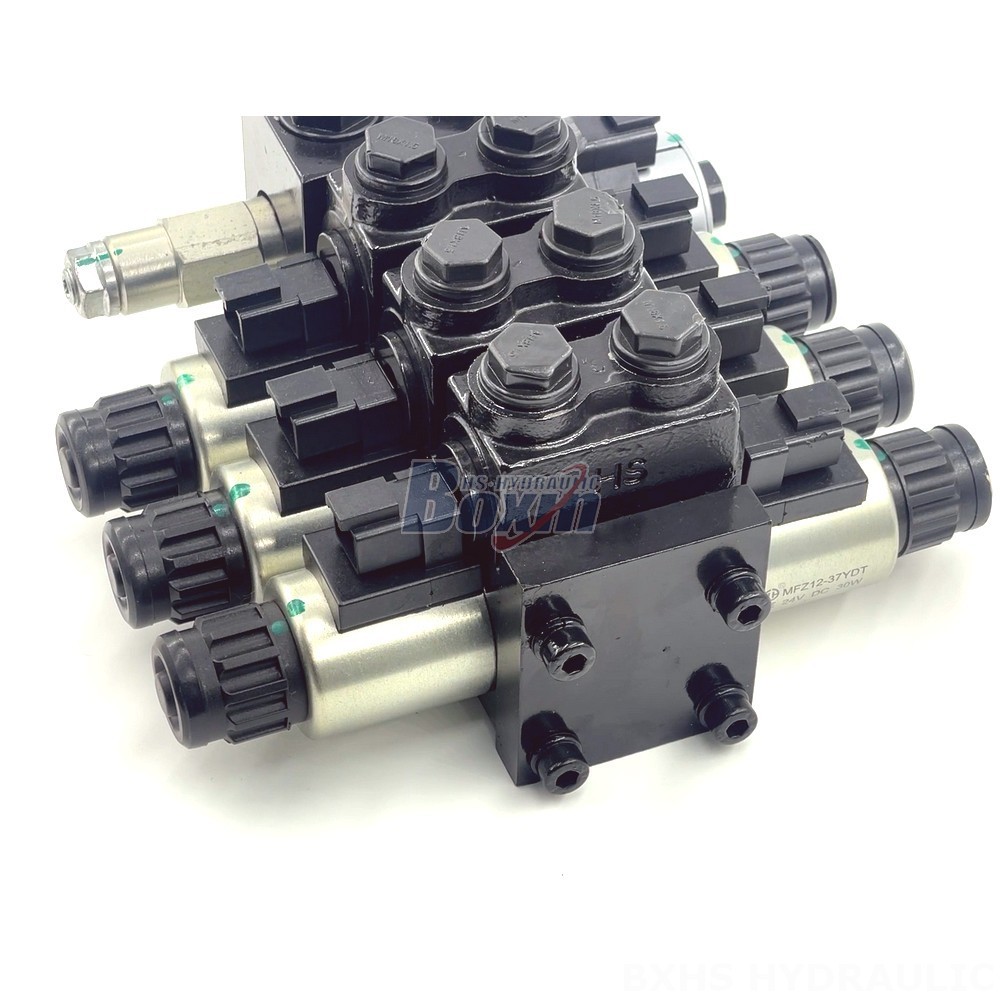

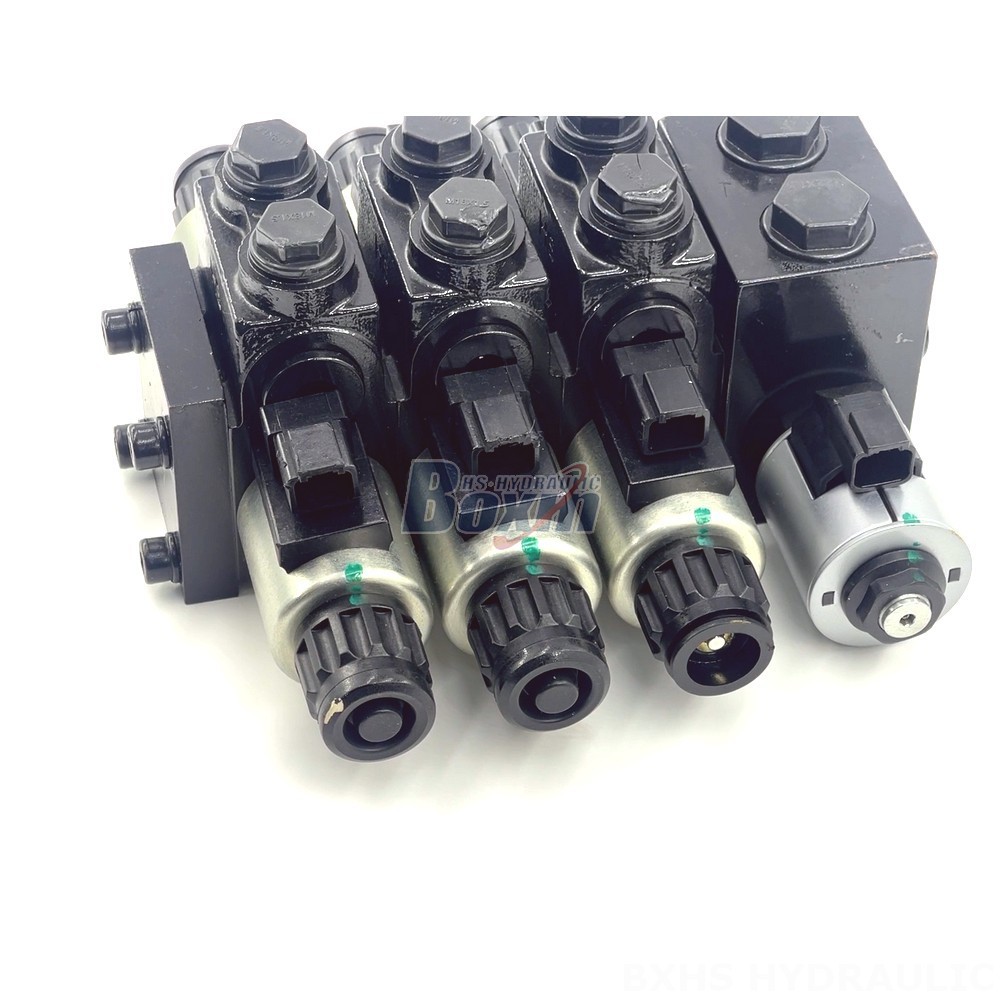

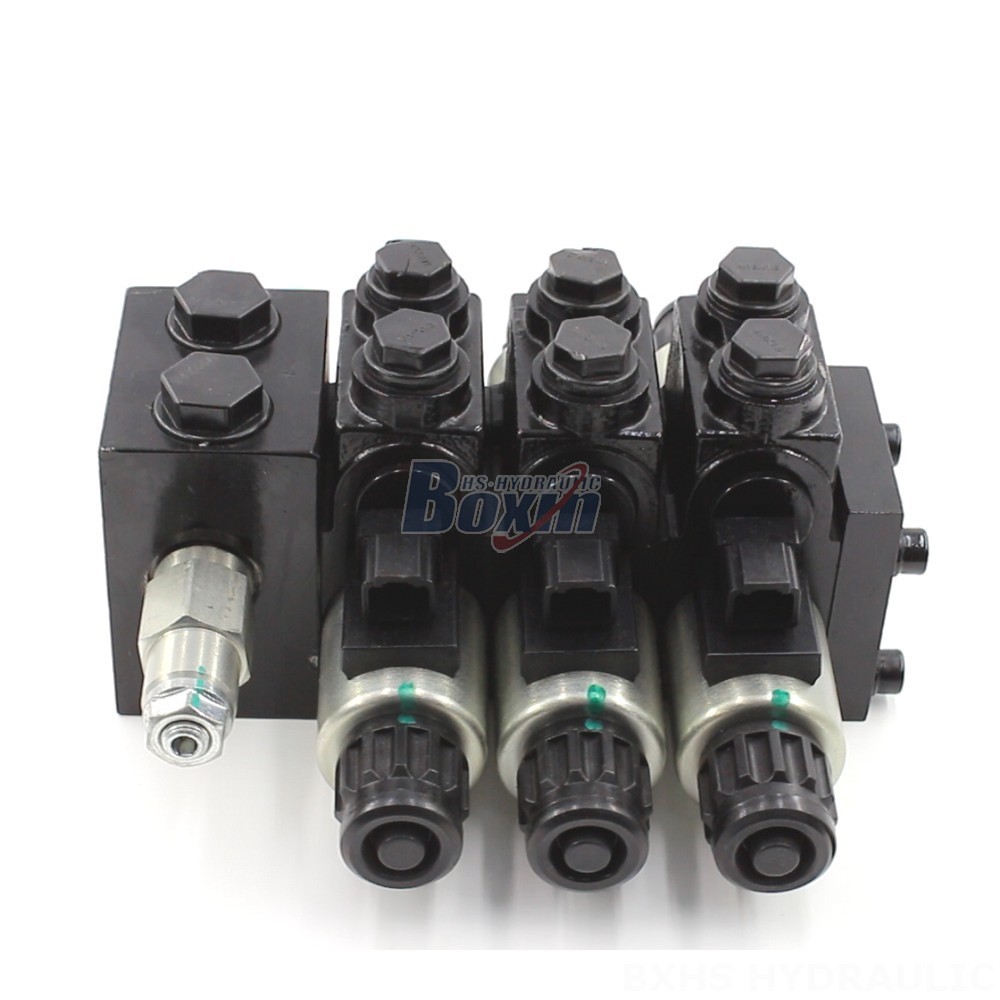

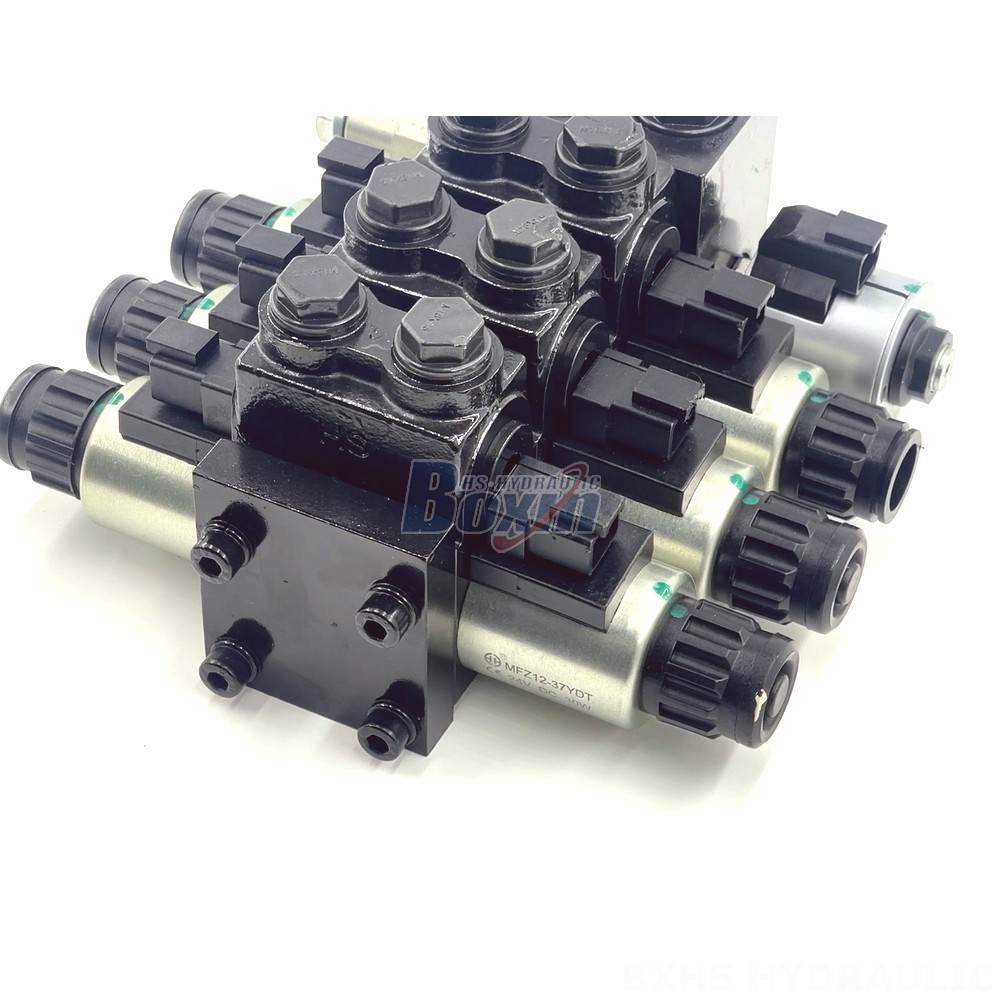

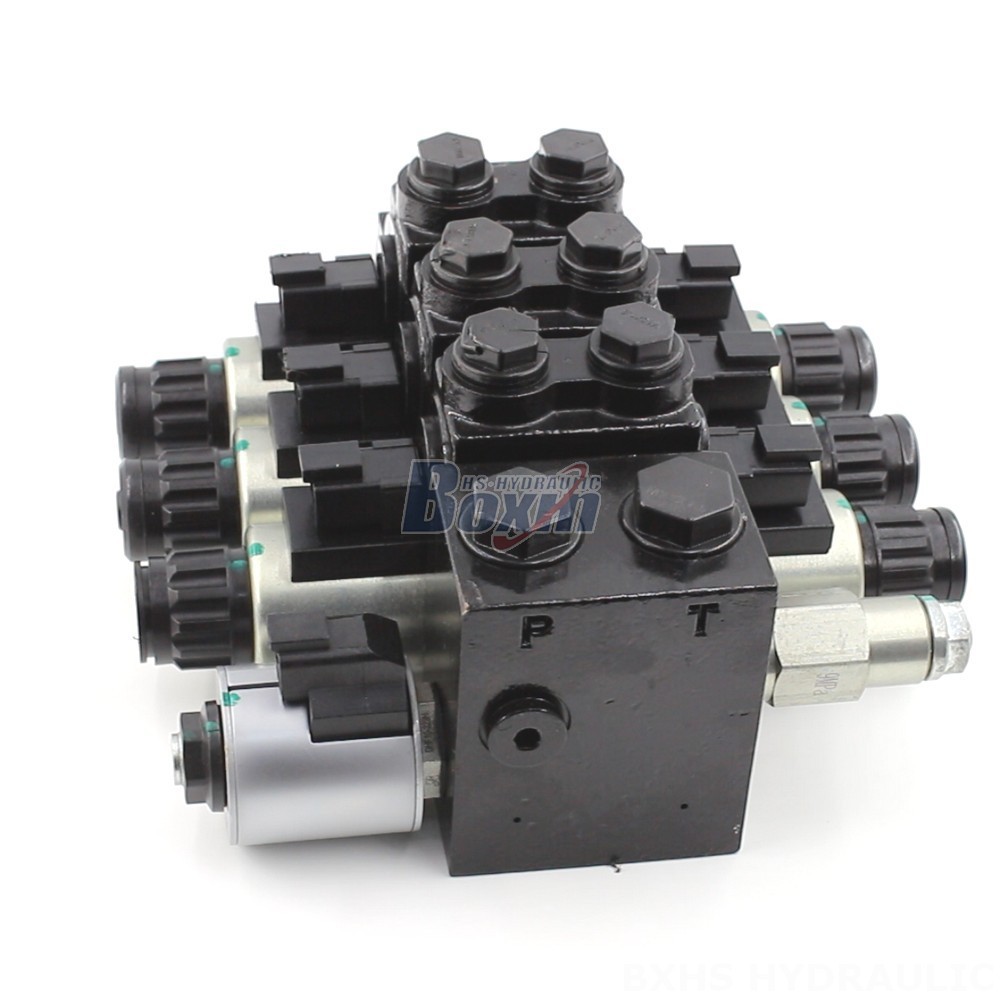

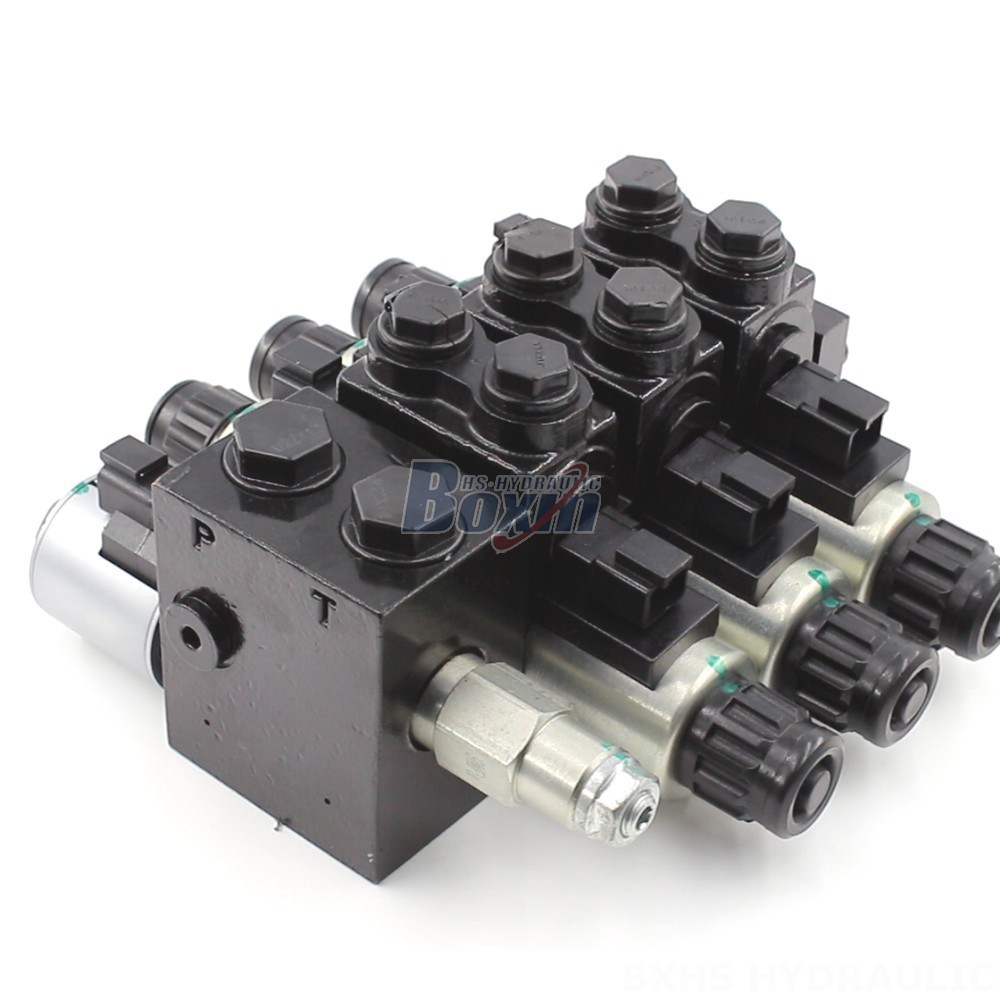

The HDCF50 3-Spool Solenoid Valve is a heavy-duty hydraulic valve designed for use in construction equipment, material handling, agriculture, and industrial vehicles. This valve offers high flow rates, high pressure capability, and customizable options to meet your specific application needs.
| HDCF50-Serie Magnetventil Parameter | |
|---|---|
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen, 8 Spulen, 9 Spulen, 10 Spulen |
| Steuermethode | Magnet |
| Anschlussgröße | M22×1.5, SAE 8 |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt, 8 Abschnitt, 9 Abschnitt, 10 Abschnitt |
| Umgebungstemperaturbereich | -20°C bis +80°C (-4°F bis +176°F) |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Auslassanschluss | M18×1.5, M22×1.5, SAE 8 |
| Maximaldruck | 160 bar (2300 psi) |
| Nennfluss | 50 l/min (13,2 US gal/min) |
| Strukturtyp | Schieberventil |
| Einlassanschluss | M18×1.5, M22×1.5, SAE 8 |
This HDCF50 Series 3-Spool Solenoid Valve is a durable and reliable hydraulic valve with a rated flow of 50 L/min and a maximum pressure of 160 bar. It is suitable for use in a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, and skid steer loaders. This valve is customizable to meet your specific requirements, including voltage and operating viscosity range. With its rugged construction and high performance, this valve is ideal for demanding applications in the construction, material handling, agriculture, and industrial vehicle sectors.
