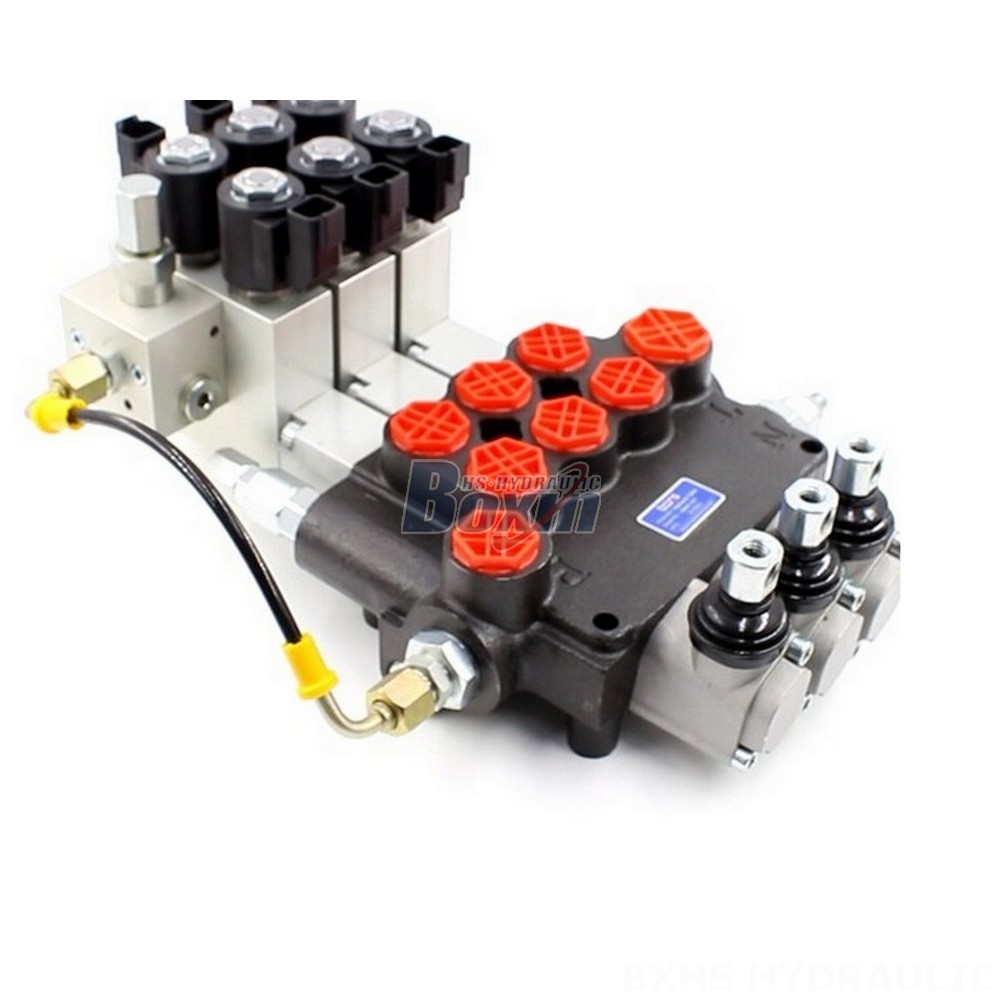

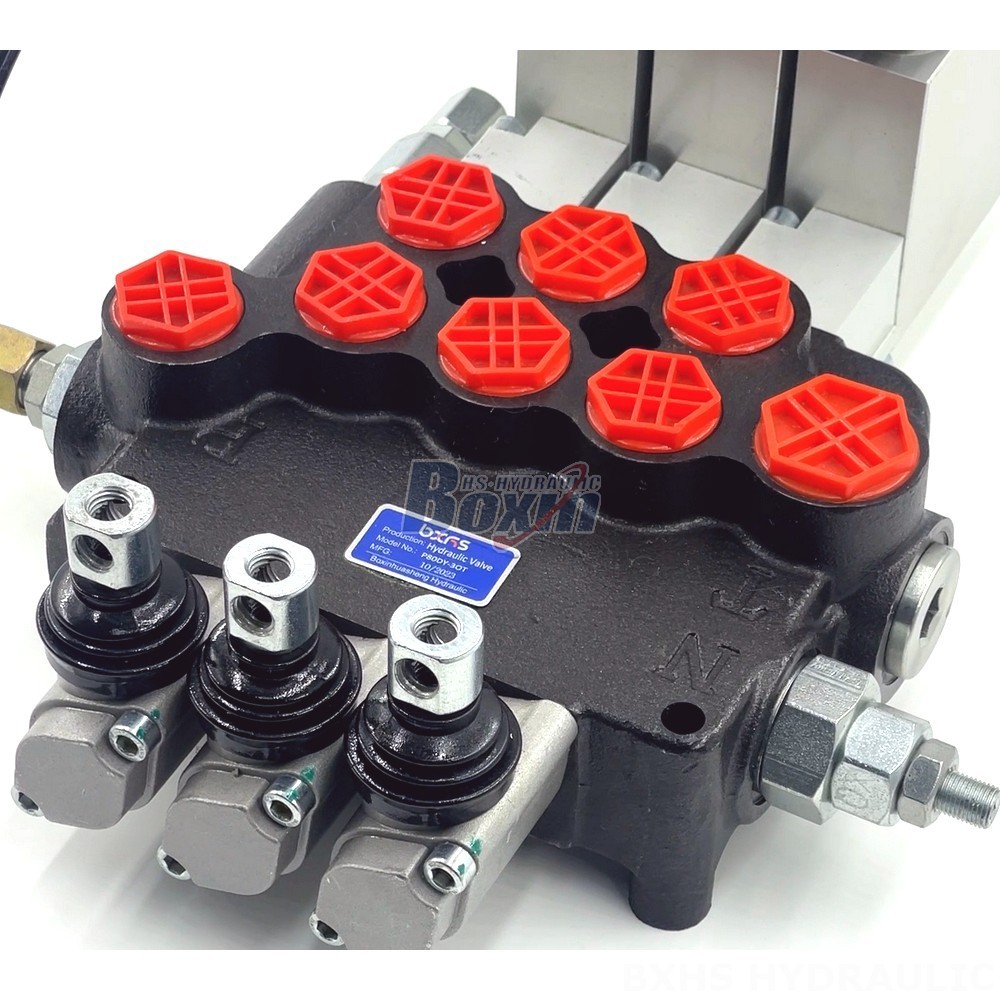

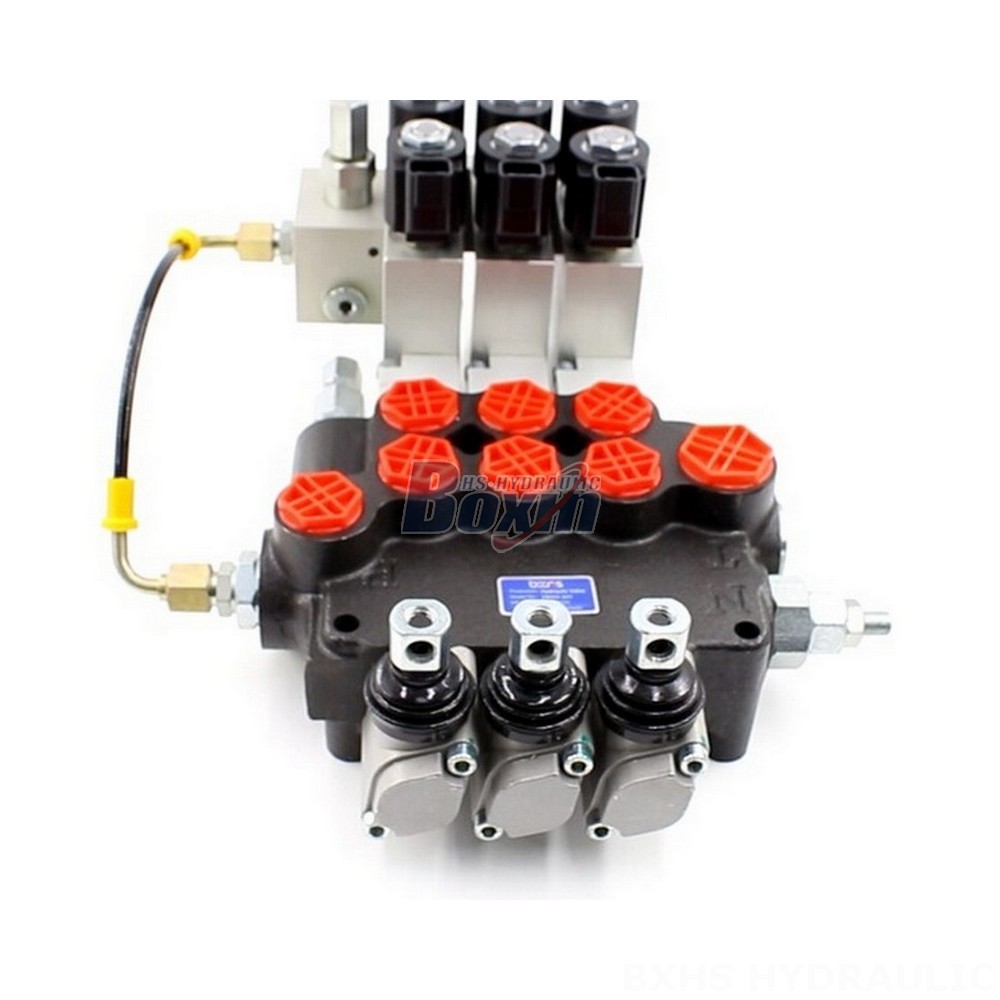

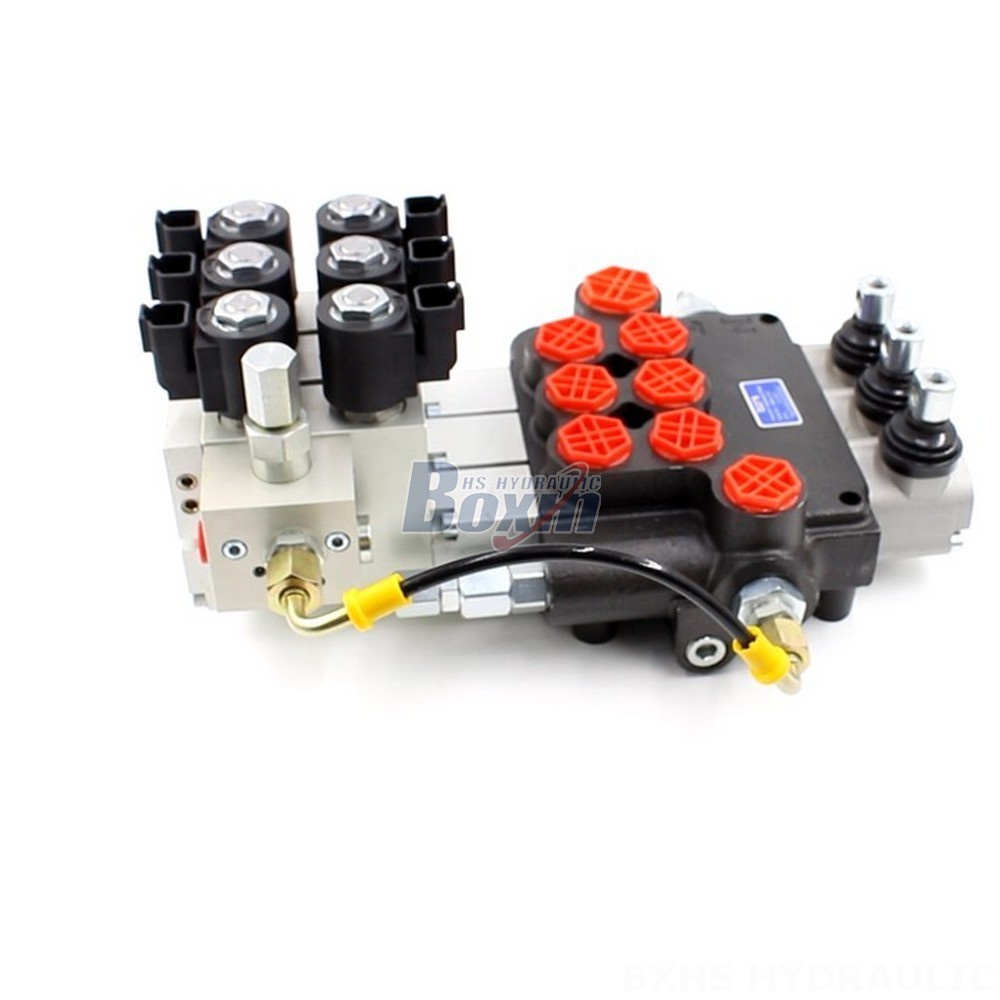

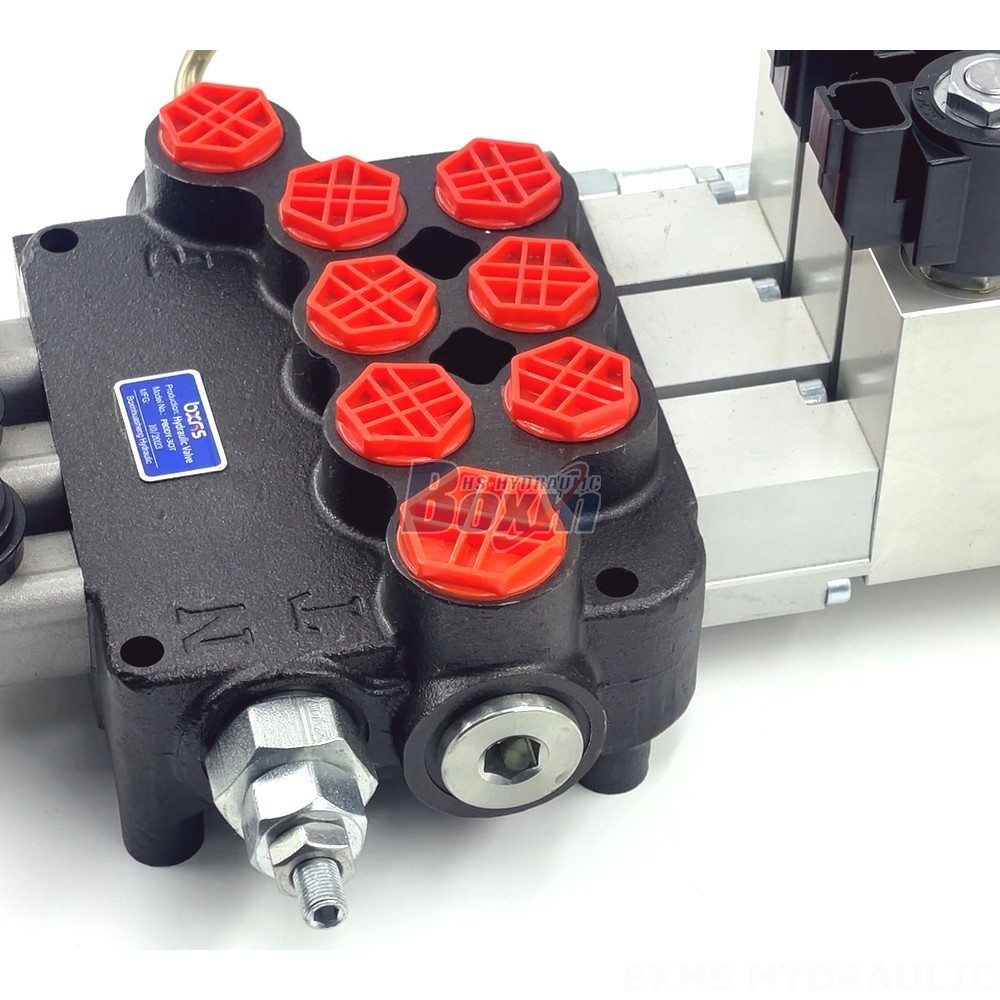

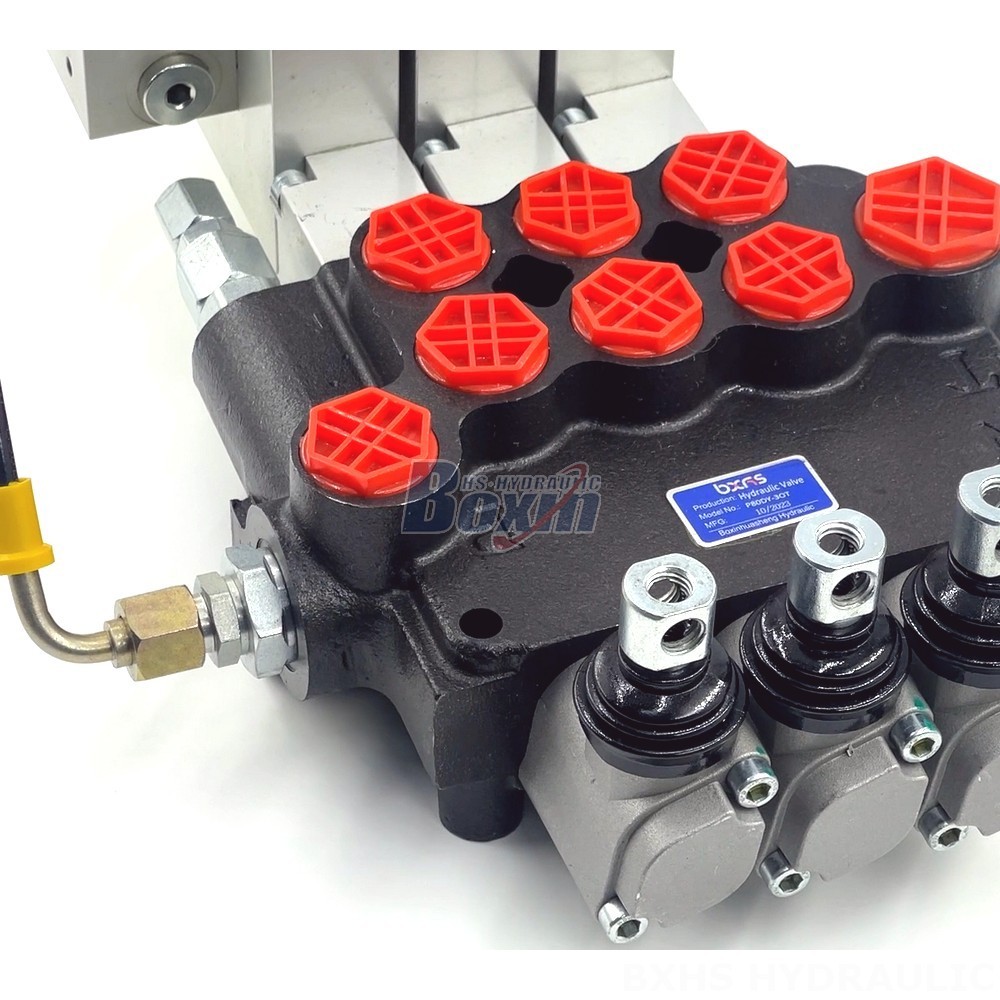

Introducing our P80 Model 3-Spool Electro-hydraulic Valve, a robust and versatile solution for demanding hydraulic systems. Manufactured with precision and customizable to your specifications, this valve offers exceptional performance and reliability.
| P80 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Anschlussgröße | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**P80 Model 3-Spool Electro-hydraulic Valve**
**Key Features:**
- Electro-hydraulic control for precise and responsive operation
- 3-section monoblock design for compact and efficient installation
- Rated flow of 80 L/min (21.2 US gpm) for high-flow applications
- Maximum pressure capacity of 250 bar (3600 psi) for demanding hydraulic systems
- Wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in extreme environments
- 3 spool configuration for versatile control of multiple hydraulic functions
- Part of the P80 Series, known for durability and reliability
**Applications:**
- Material handling equipment (e.g., forklifts, telehandlers)
- Construction and earth-moving machinery (e.g., excavators, skid steer loaders)
- Agricultural machinery (e.g., tractors, combines)
- Industrial vehicles (e.g., aerial platforms, motor graders)
