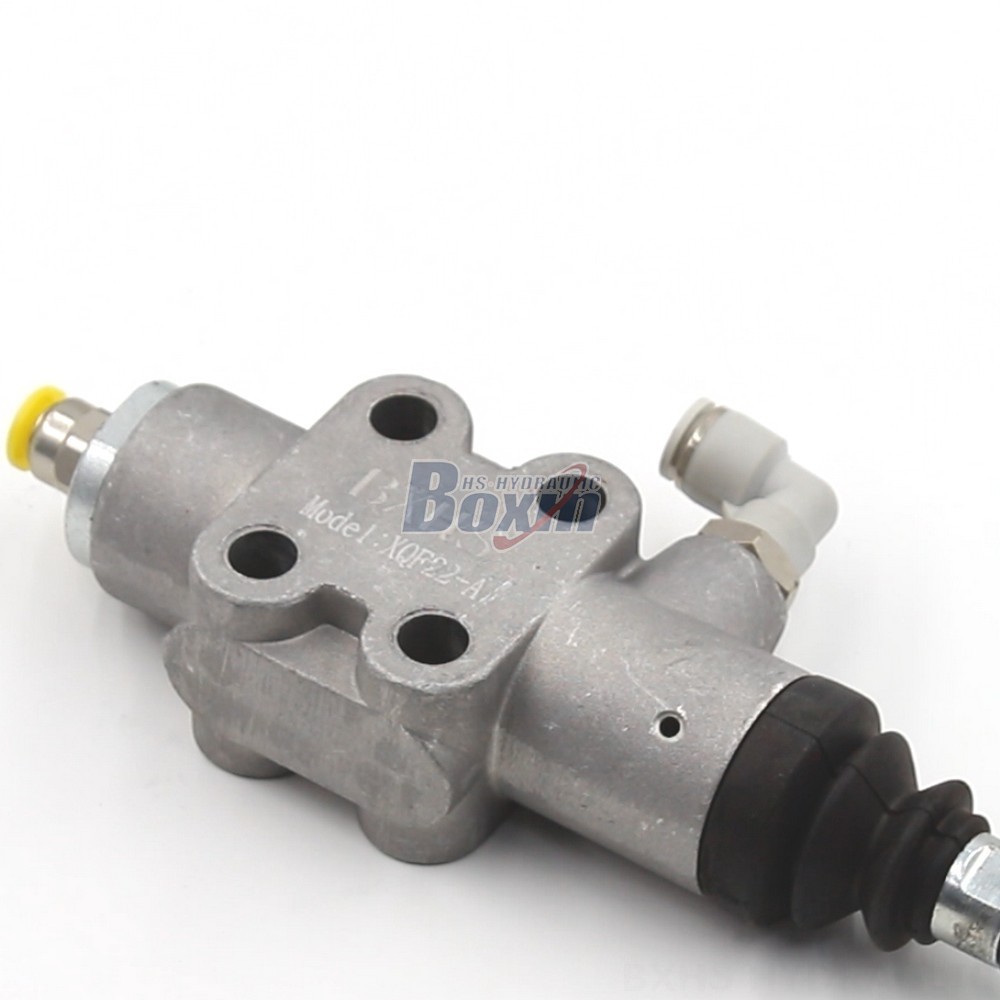

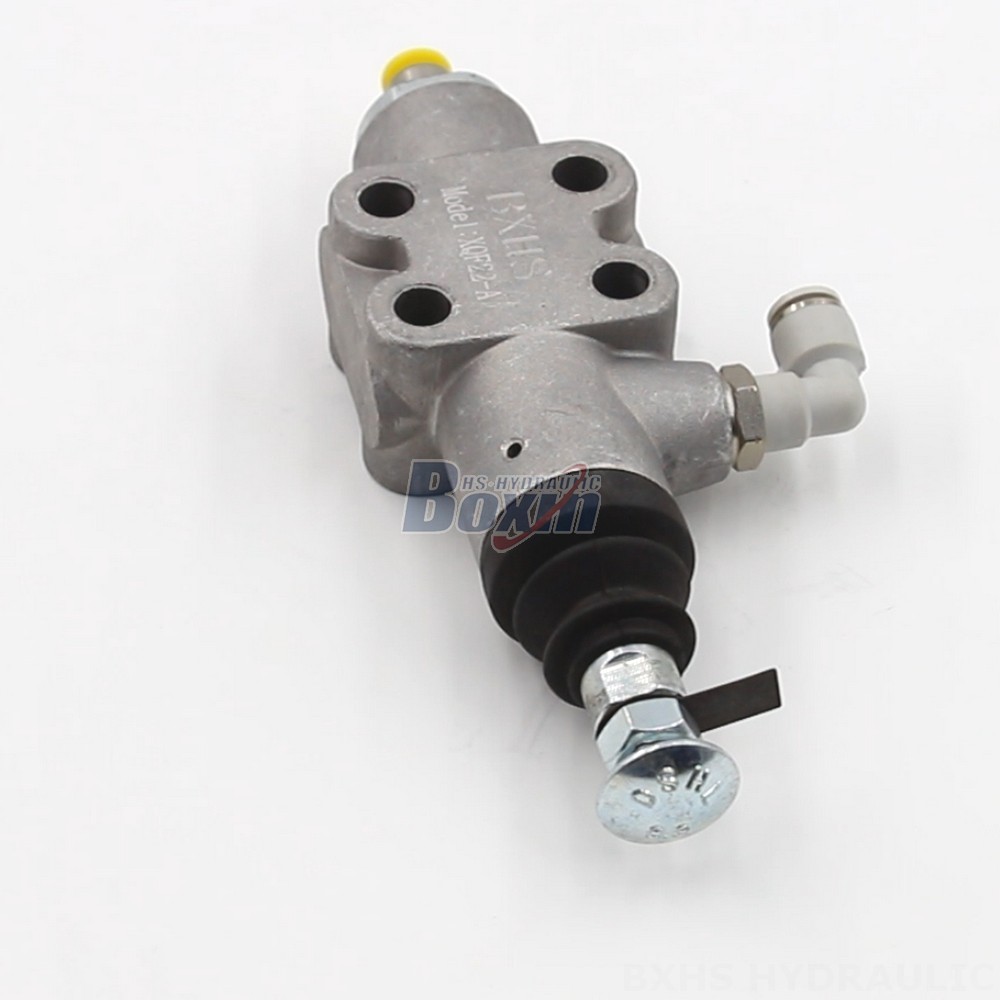

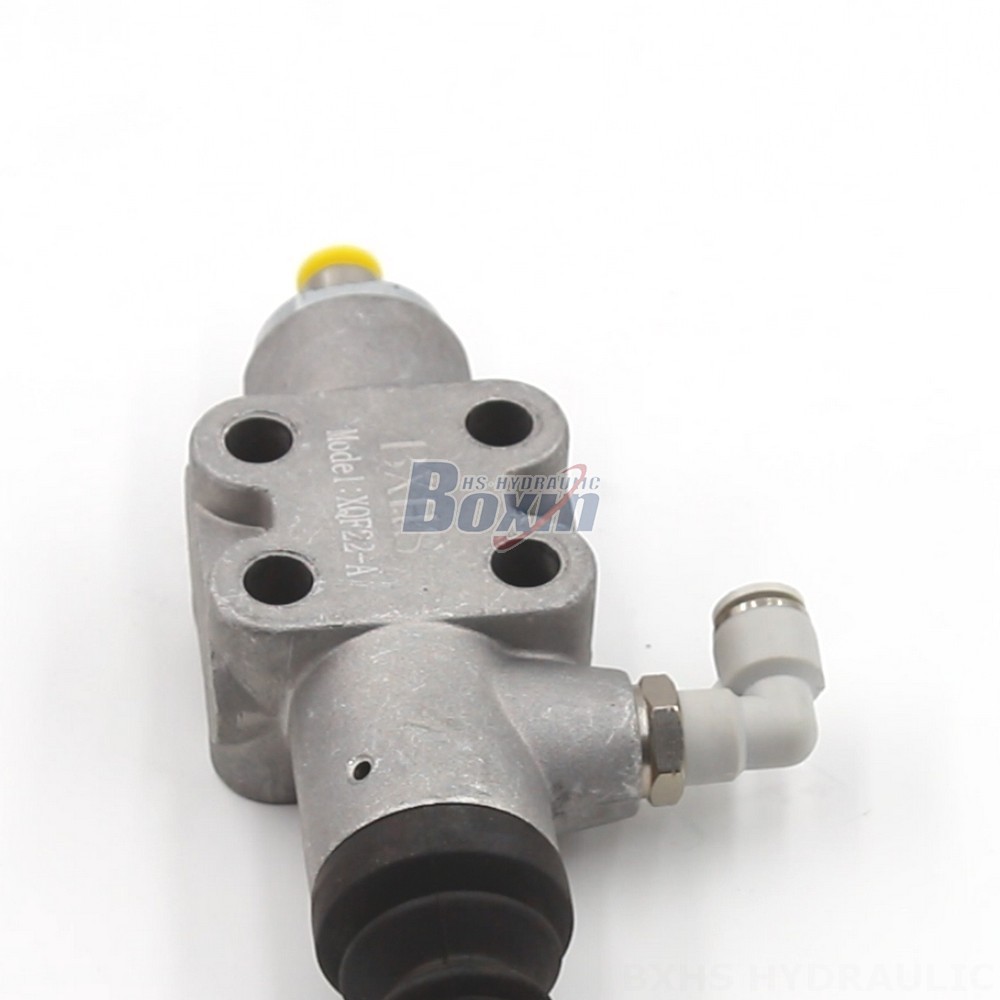

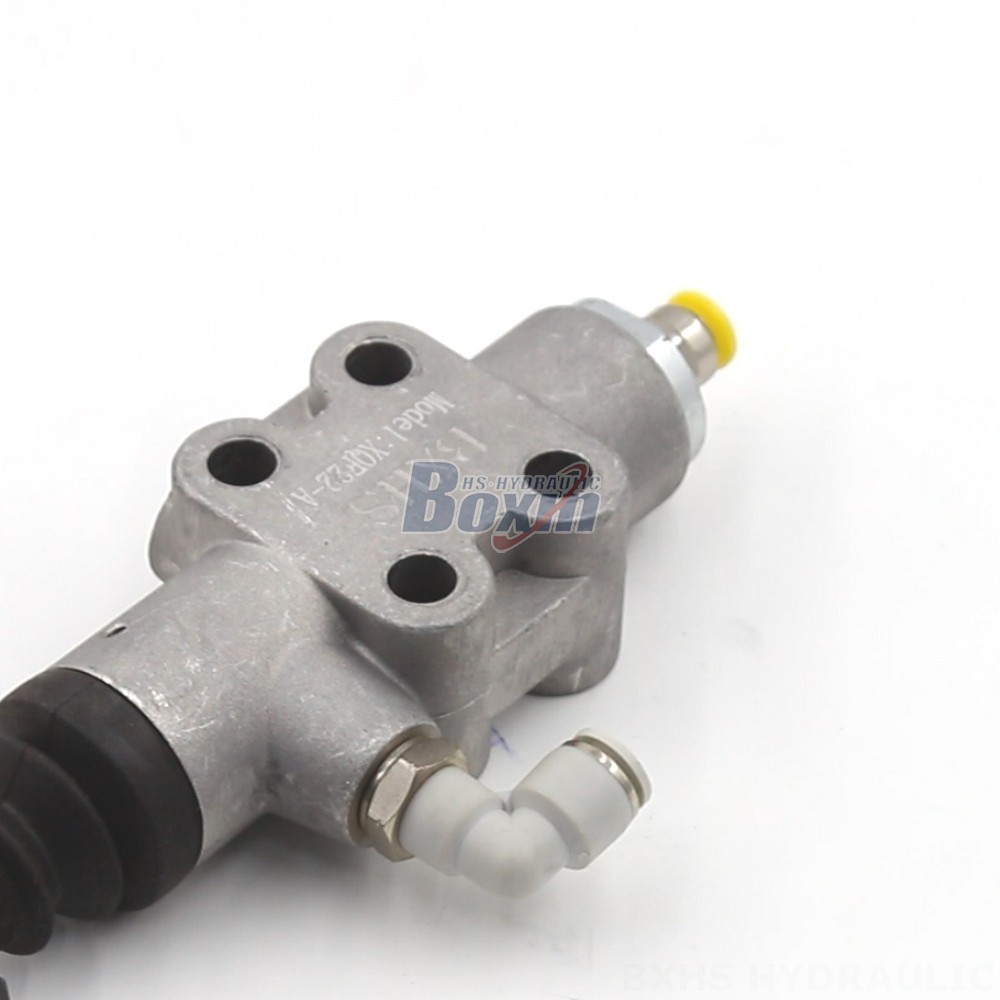

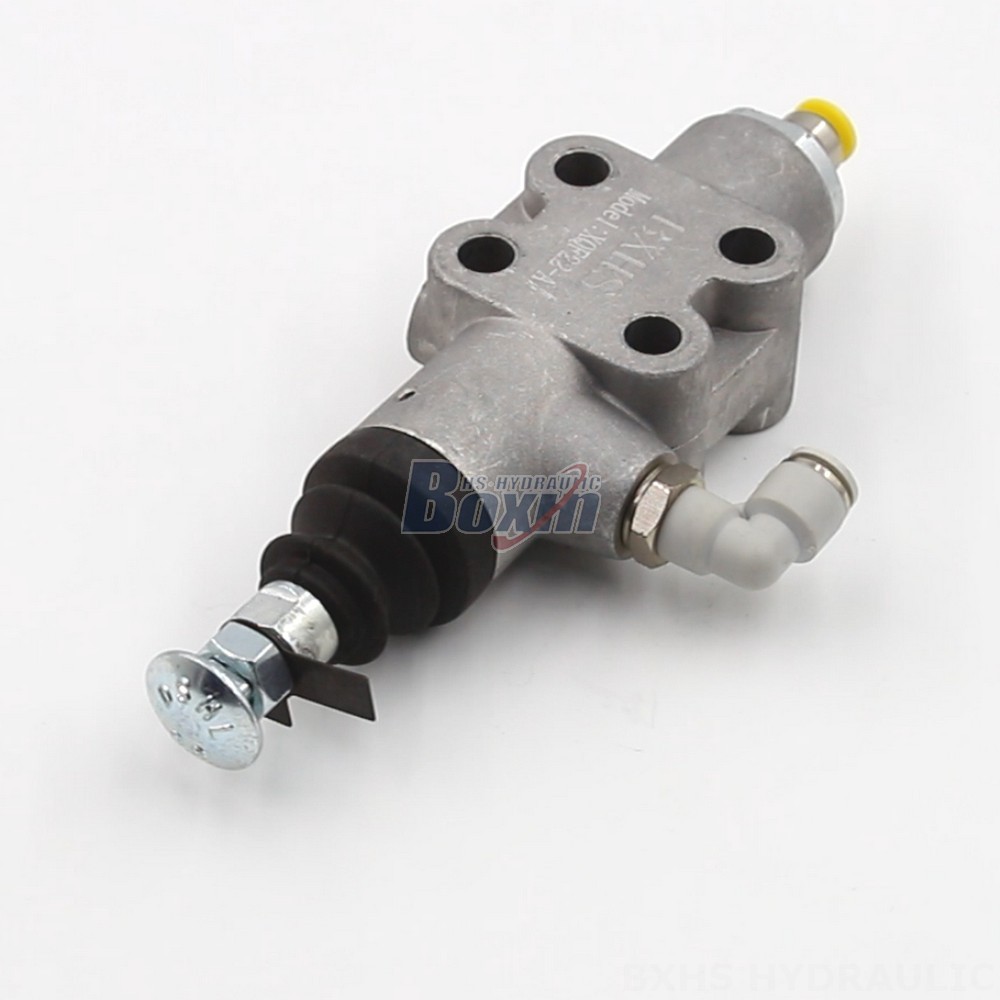

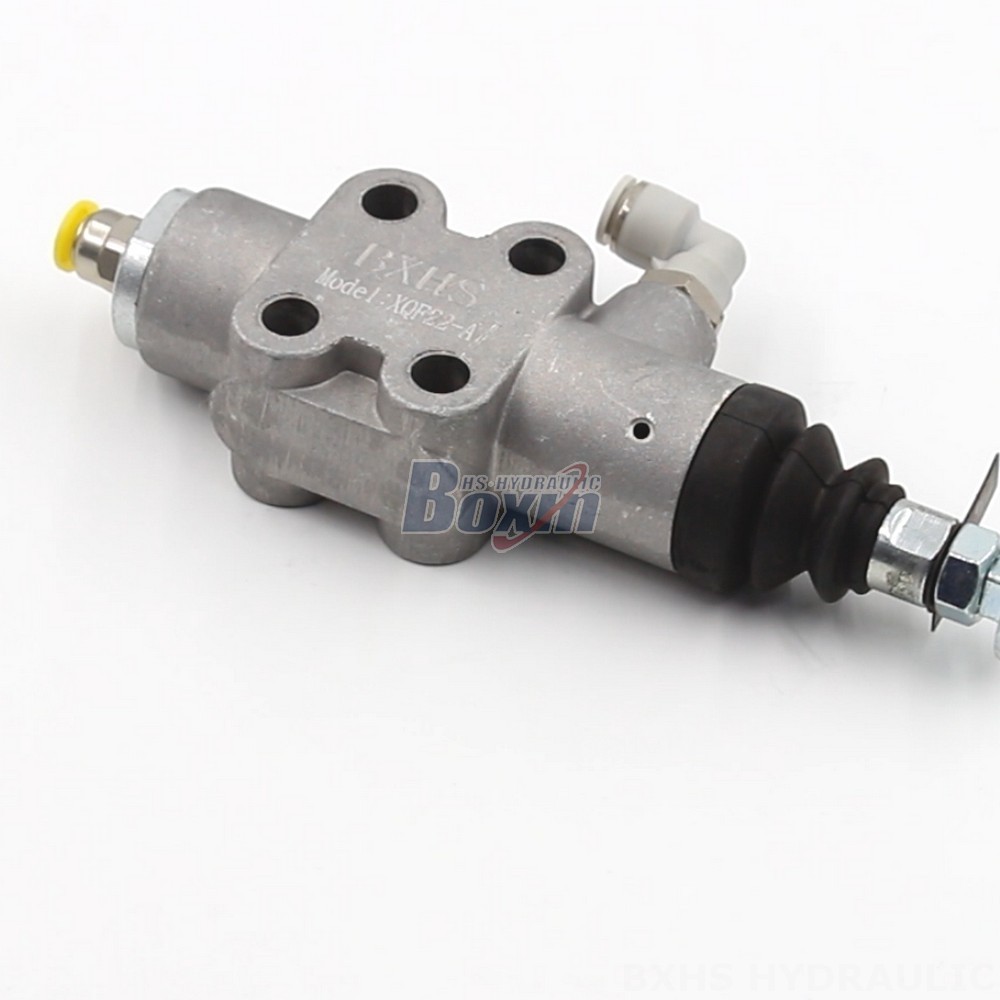

The XQF22-A Model 2-Position, 2-Way Pneumatic Valve is a high-performance valve designed for use in a wide range of industrial applications. With a rated flow of 60 L/min and a maximum pressure of 200 bar, it is suitable for even the most demanding applications. The valve's operating viscosity range of 12 - 400 mm²/s and ambient temperature range of -40°C to +60°C make it suitable for use in a variety of environments.
| XQF-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Pneumatisch |
| Steuerkolben | 1 Spule |
| Umgebungstemperaturbereich | -40 °C bis +60 °C (-40 °F bis +140 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt |
| Bereich der Betriebsviskosität | 12 - 400 mm²/s (12 cSt bis 400 cSt) |
| Nennfluss | 50 l/min (13,2 US gal/min) |
| Maximaldruck | 200 bar (2900 psi) |
| Einlassanschluss | G1/4 |
| Auslassanschluss | G1/4 |
| Anschlussgröße | G1/4 |
The XQF22-A Model 2-Position, 2-Way Pneumatic Valve is a versatile and reliable valve that is ideal for use in a wide range of industrial applications. Its high flow rate and maximum pressure make it suitable for even the most demanding applications, while its wide operating viscosity range and ambient temperature range make it suitable for use in a variety of environments. The valve's single spool design ensures smooth and reliable operation, and its XQF22-A Series construction ensures durability and long service life.
