Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit

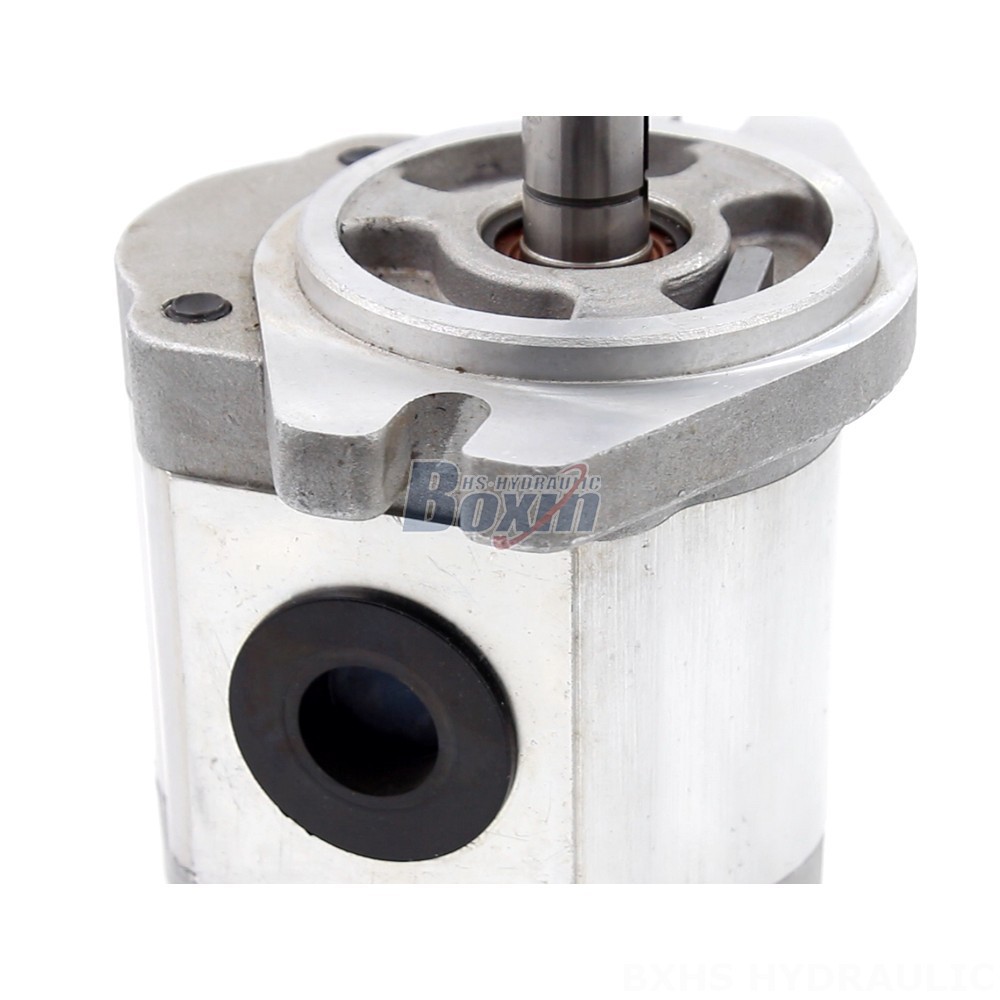

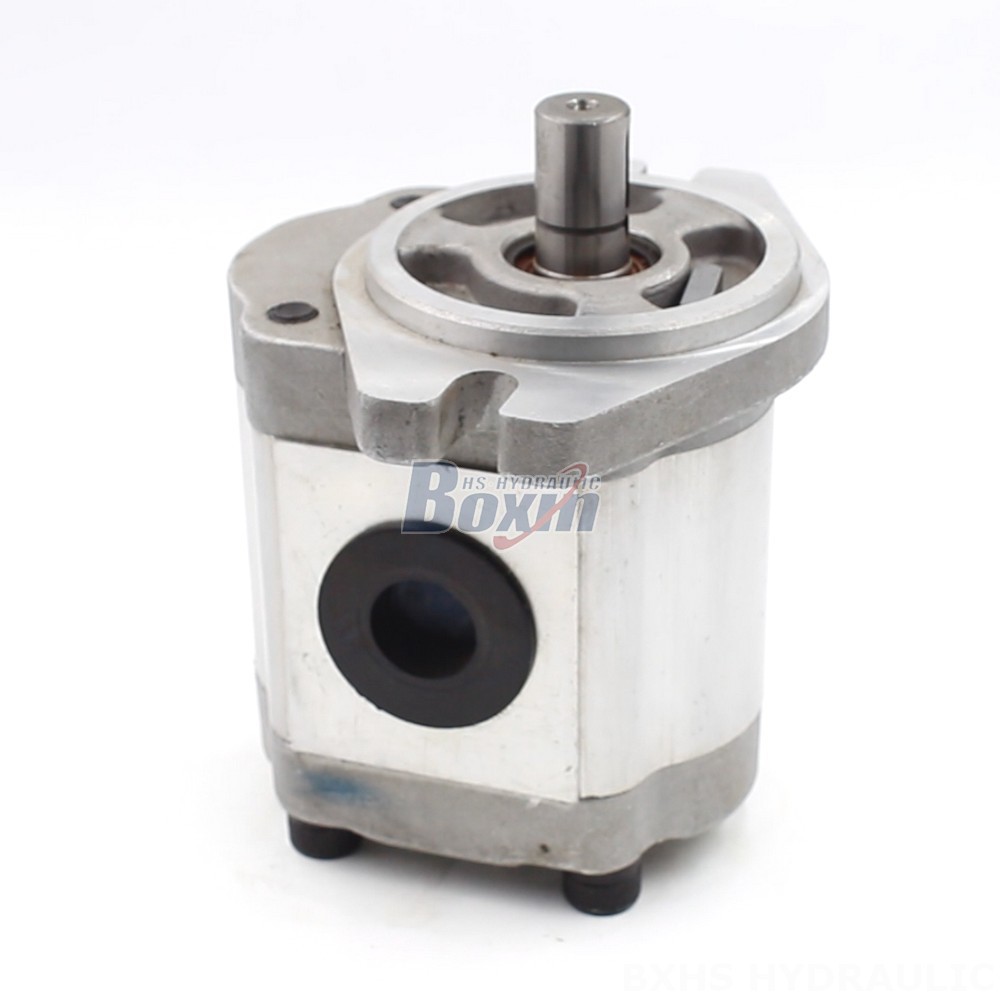

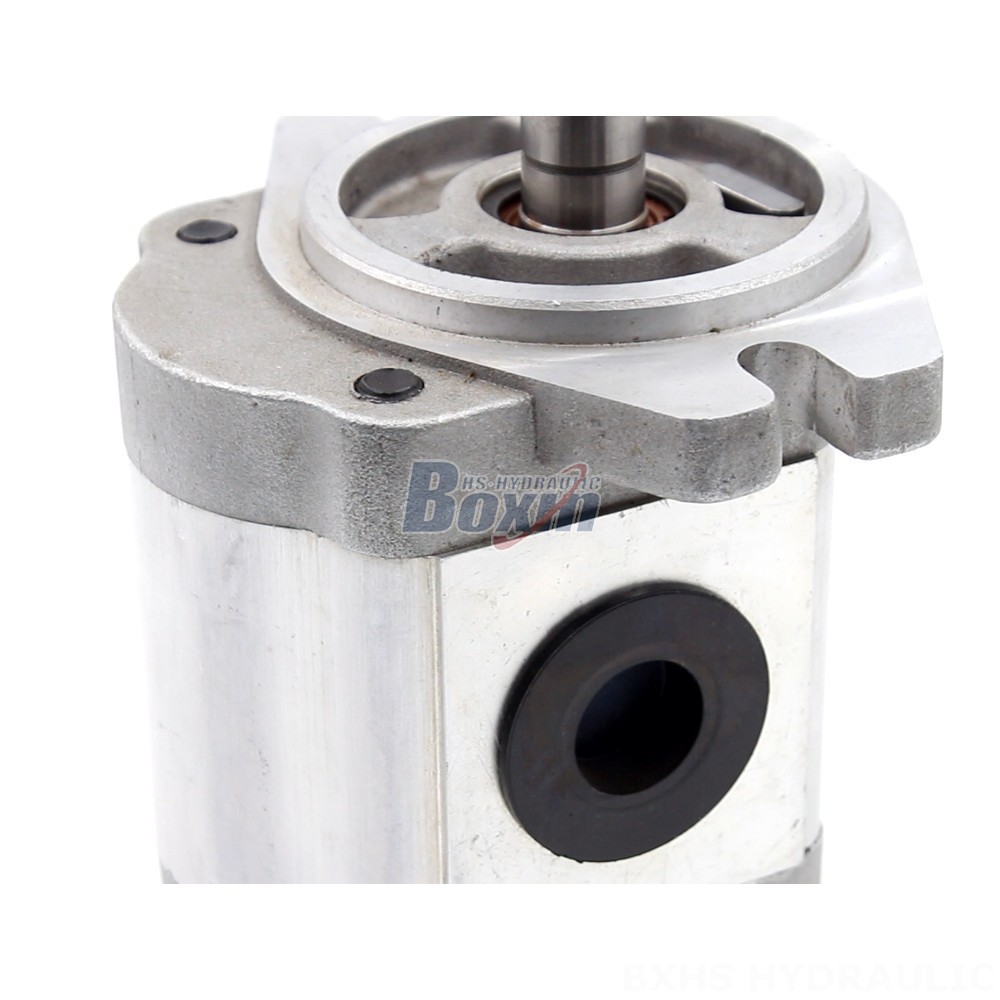

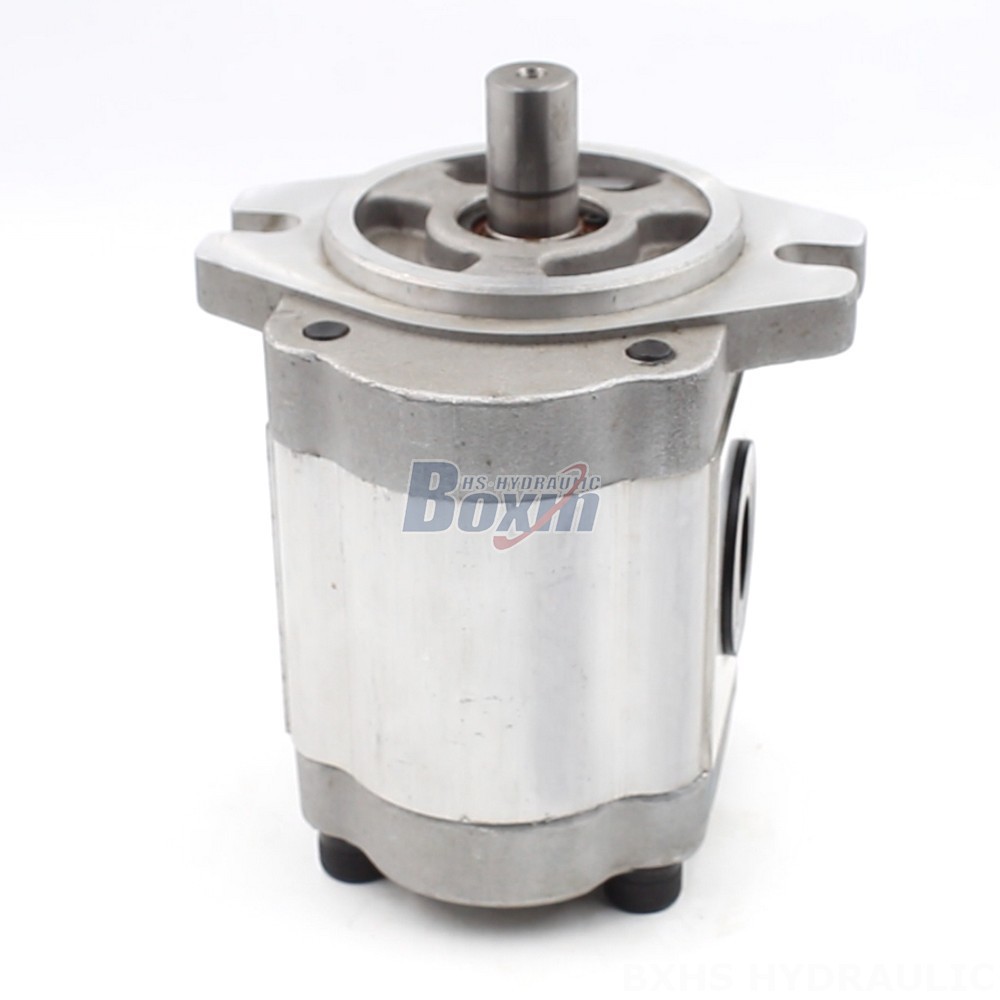

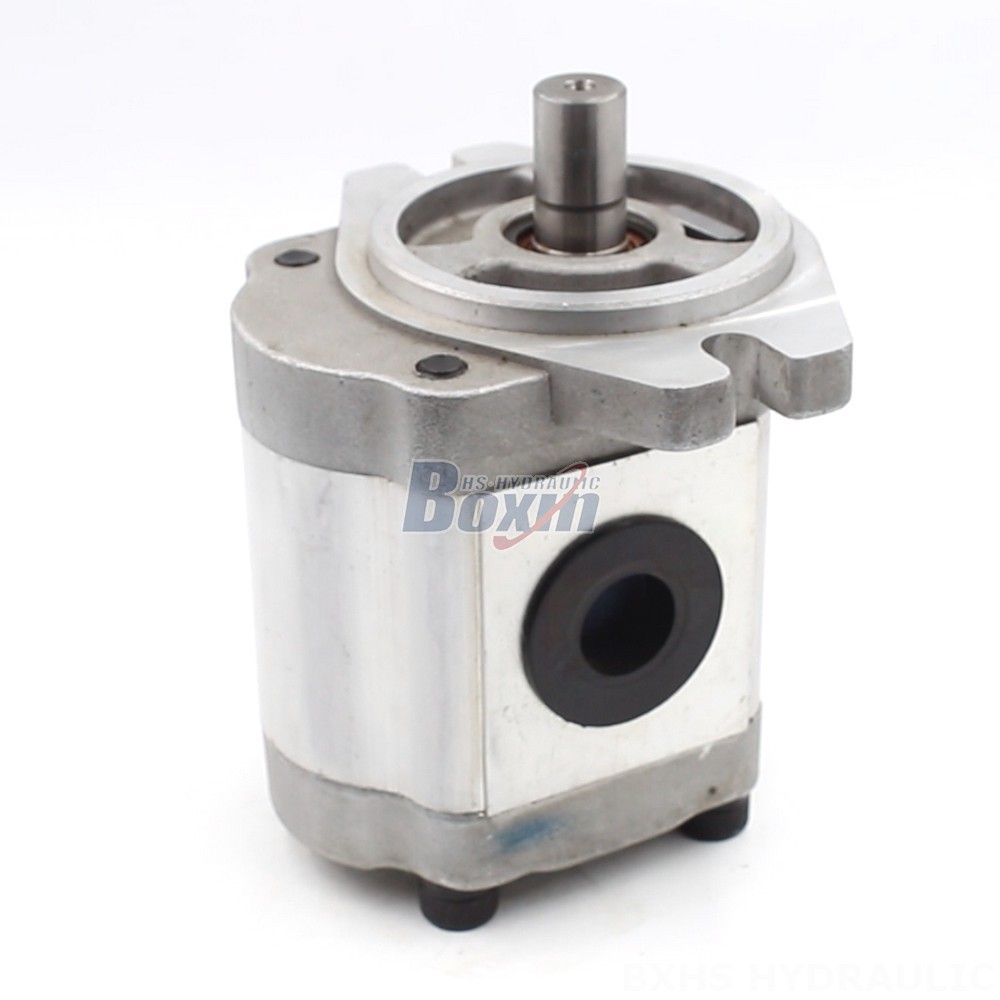

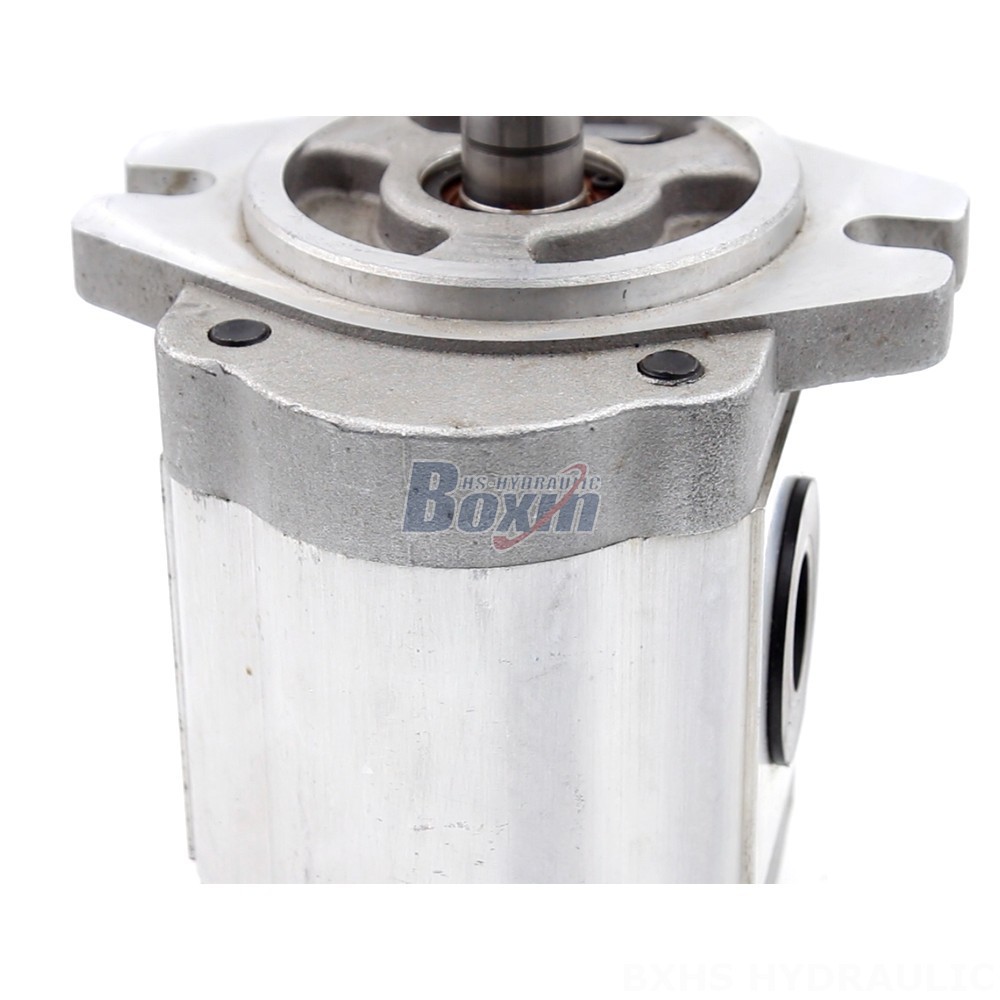

This 16 cc/rev hydraulic gear pump is designed for high-performance applications in construction, agriculture, and material handling. It features a durable aluminum construction, high pressure rating, and customizable options to meet your specific needs. The pump is suitable for various equipment types, including forklifts, telehandlers, skid steer loaders, and more.
| CBHS-FL3 Serie Hydraulikzahnradpumpe Parameter | |
|---|---|
| Verdrängung | 10 cc/Umdr, 4 cc/Umdr, 20 cc/Umdr, 16 cc/Umdr, 14 cc/Umdr, 6 cc/Umdr |
| Nenndruck | 20 MPa (2900 psi) |
| Maximaldruck | 25 MPa (3625 psi) |
| Nenndrehzahl | 2000 U/min |
| Maximaldrehzahl | 3000 U/min |
| Drehrichtung | Links (entgegen dem Uhrzeigersinn), Rechts (im Uhrzeigersinn) |
| Material | Aluminium |
| Struktur | Außenverzahnte Pumpe |
| Flanschversion | A-Ovalflansch |
| Wellentyp | H: Rechteckige Keilwelle, X: Evolventenverzahnte Keilwelle, P: einfacher Schlüssel |
This 16 cc/rev hydraulic gear pump is a heavy-duty, high-performance solution for various applications. It boasts a 20 MPa (2900 psi) rated pressure and a 2000 r/min rated speed, with a maximum speed of 3000 r/min. This pump features a robust internal gear design, constructed from aluminum for long-lasting durability. Its A-Oval flange and plain key shaft provide flexible mounting options. The CBHS-FL3 Series pump is specifically designed for use in material handling, construction and earth moving, agriculture, and industrial vehicles. This makes it a versatile option for a wide range of equipment types, including forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini- and midi- excavators, tractors and front-end loaders, harvesters, balers, and sprayers.
